Switchover Solenoid: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing.
  3. Disconnect the air pump switchover solenoid harness connector (2).

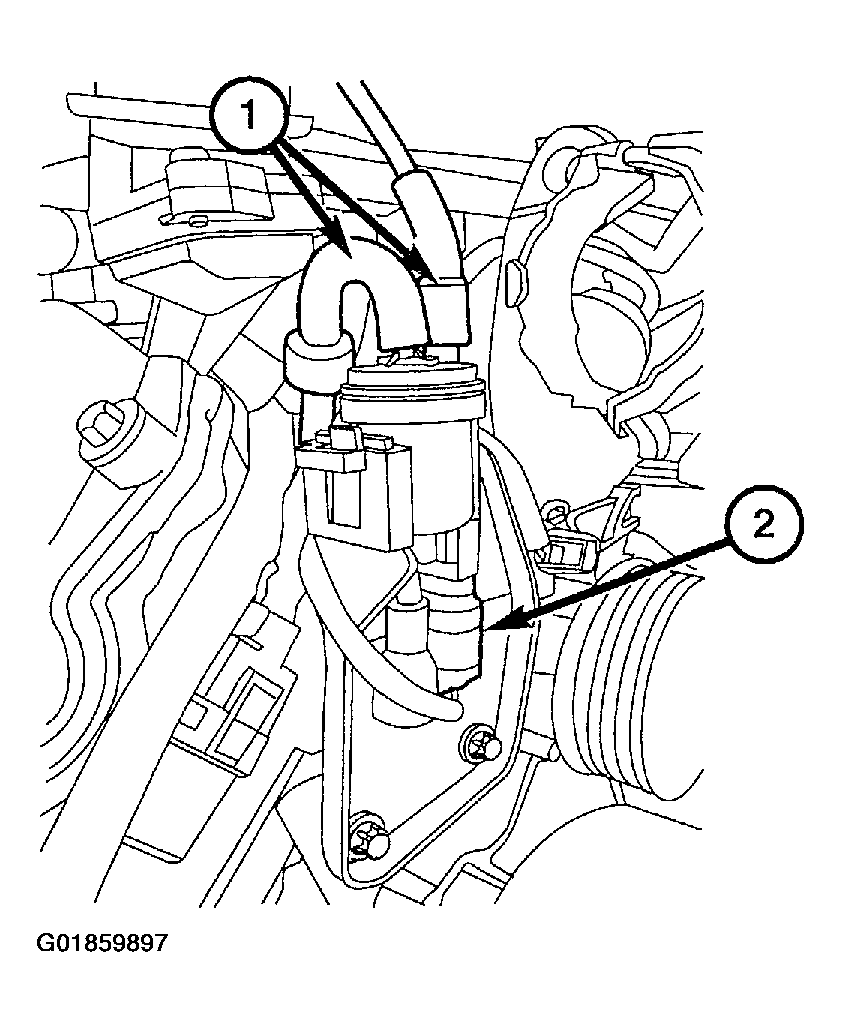

    Fig 1: Disconnecting Switchover Solenoid
    G01859897Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the vacuum lines (1).
  5. Pull the air pump switchover solenoid locking tab (1) away from air pump switchover solenoid (2).
  6. Remove the air pump switchover solenoid (2) from air pump switchover solenoid retaining bracket (3).

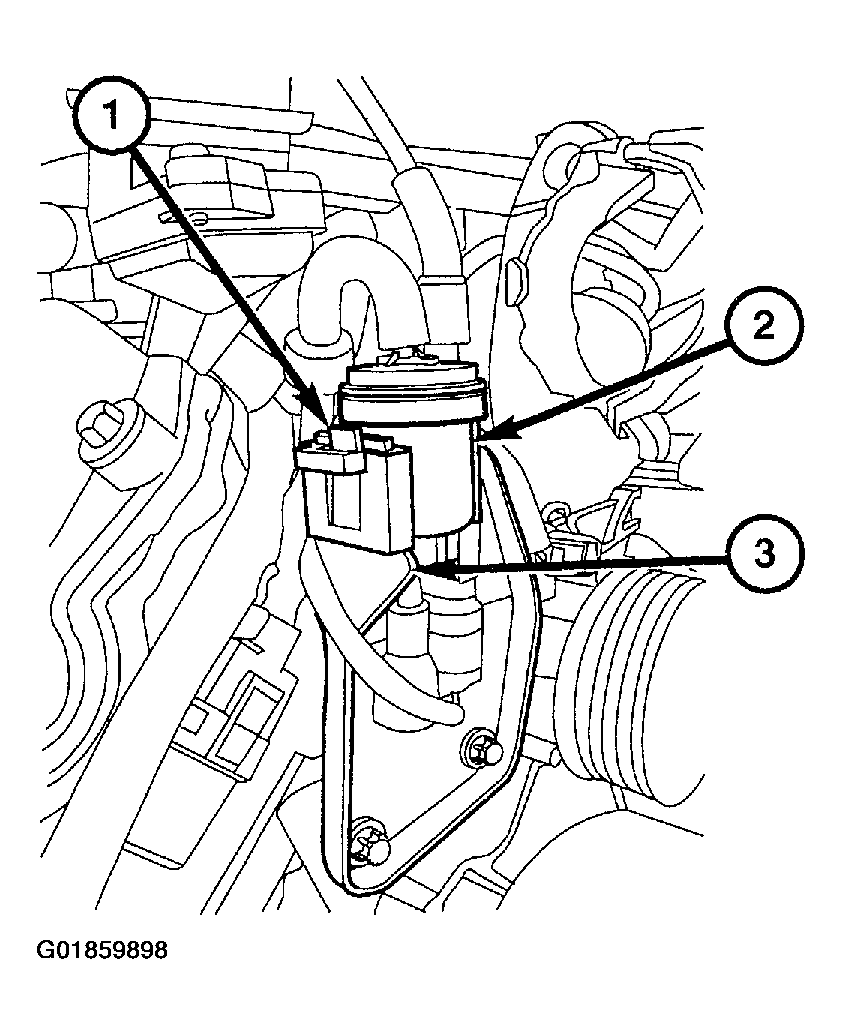

    Fig 2: Removing Switchover Solenoid
    G01859898Courtesy of DAIMLERCHRYSLER CORP.
