Switchover Valve: Installation

  1. Position the new gasket between intake manifold and air pump switchover valve (1).
  2. Install the retaining bolt (4) and tighten to 20 N.m (177 in. lbs.).
  3. Connect the vacuum line (3).
  4. Connect the air pump switchover tube (2).

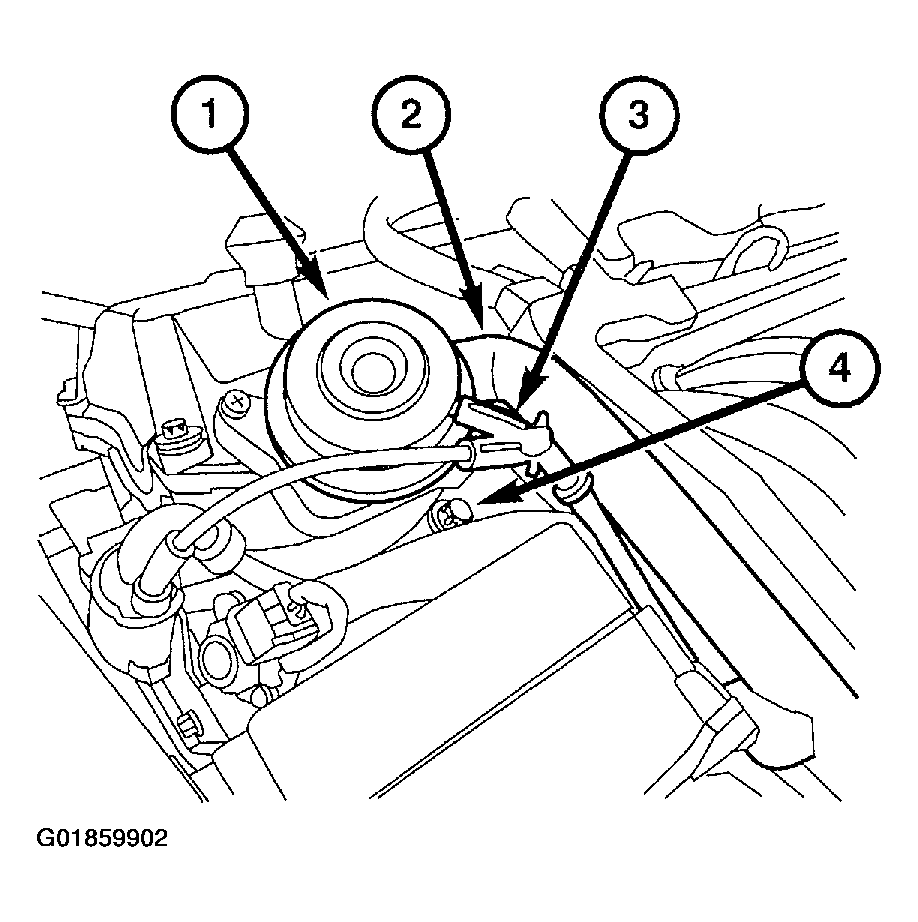

    Fig 1: Installing Switchover Valve
    G01859902Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the air cleaner housing.
  6. Connect the negative battery cable.
