Switchover Valve: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing.
  3. Disconnect the vacuum line (3).
  4. Disconnect the air pump switchover tube (2).
  5. Remove the air pump switchover valve retaining bolt (4).
  6. Remove the air pump switchover valve (1) discard the old gasket.

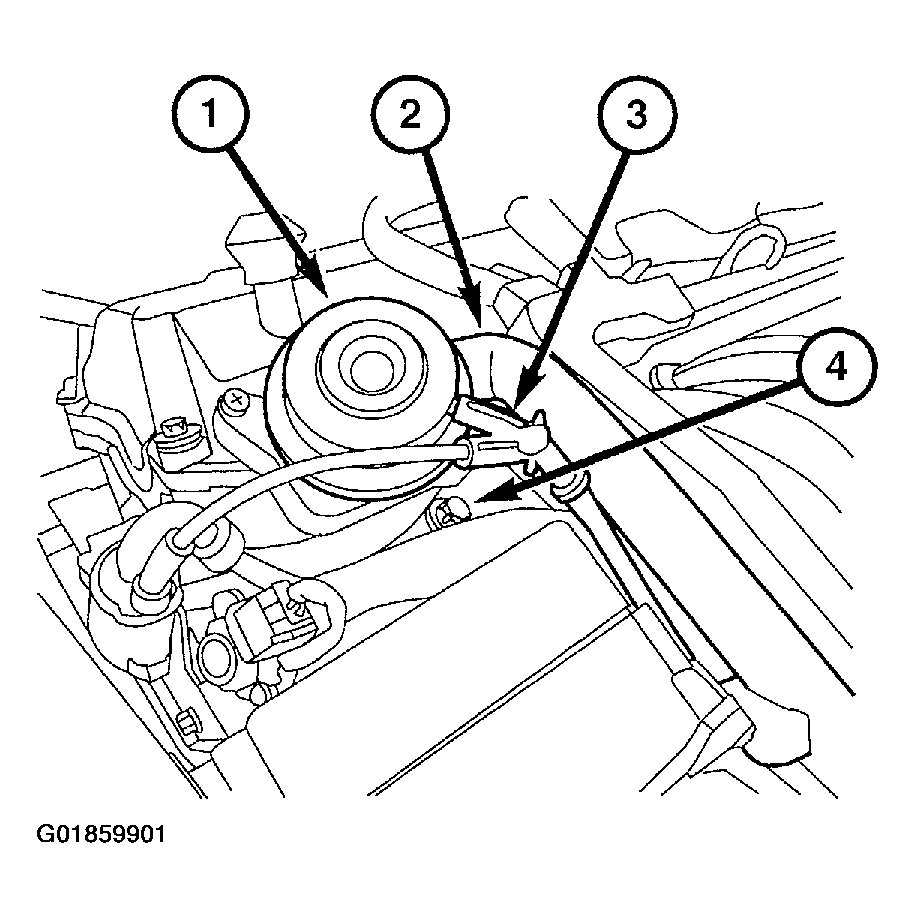

    Fig 1: Removing Switchover Valve
    G01859901Courtesy of DAIMLERCHRYSLER CORP.
