EVAP Purge Solenoid: Installation

  1. Install solenoid (3) on bracket (5).
  2. Connect vapor hoses (1 and 4) to solenoid (3).
  3. Connect connector (2) to solenoid (3).

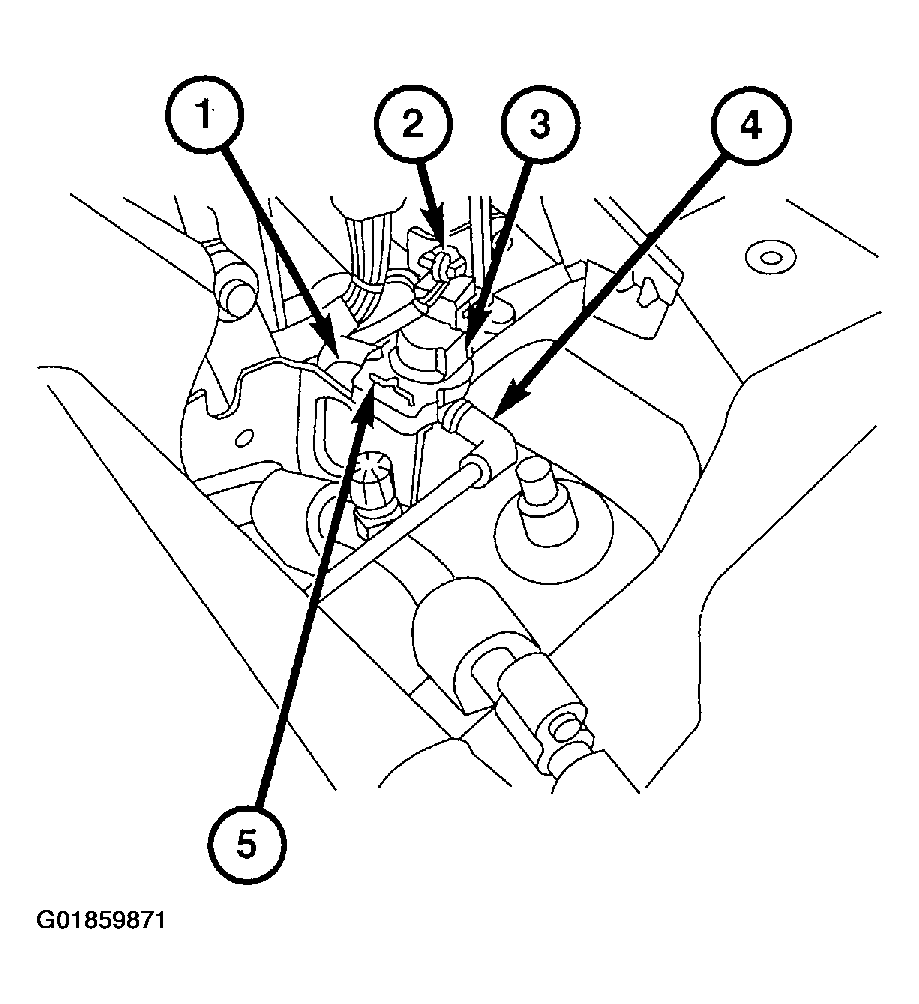

    Fig 1: Installing Solenoid, Hoses & Connector
    G01859871Courtesy of DAIMLERCHRYSLER CORP.
