8. Open Oil Sensor Signal Circuit

With the ignition off.

Measure the resistance of the Oil Sensor Signal Circuit from the Oil Sensor harness connector and the PCM C3 harness connector.

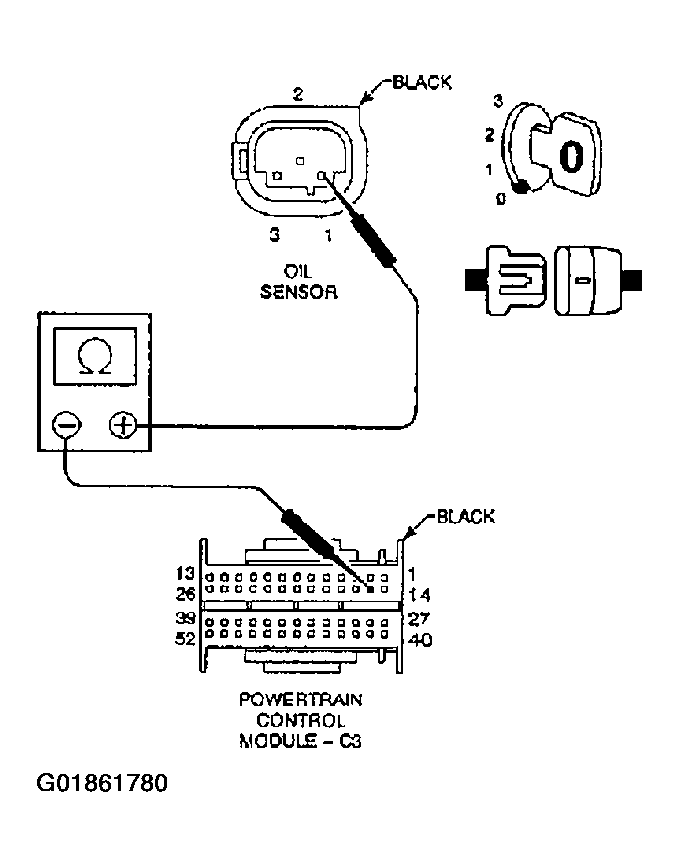

Fig 1: Measuring Resistance Of Oil Sensor Signal Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the resistance below 5.0 ohms?

1. Yes  >> Go To 9
2. No  >> Repair the in the Oil Sensor Signal circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 2  .
