Schematics And Diagrams

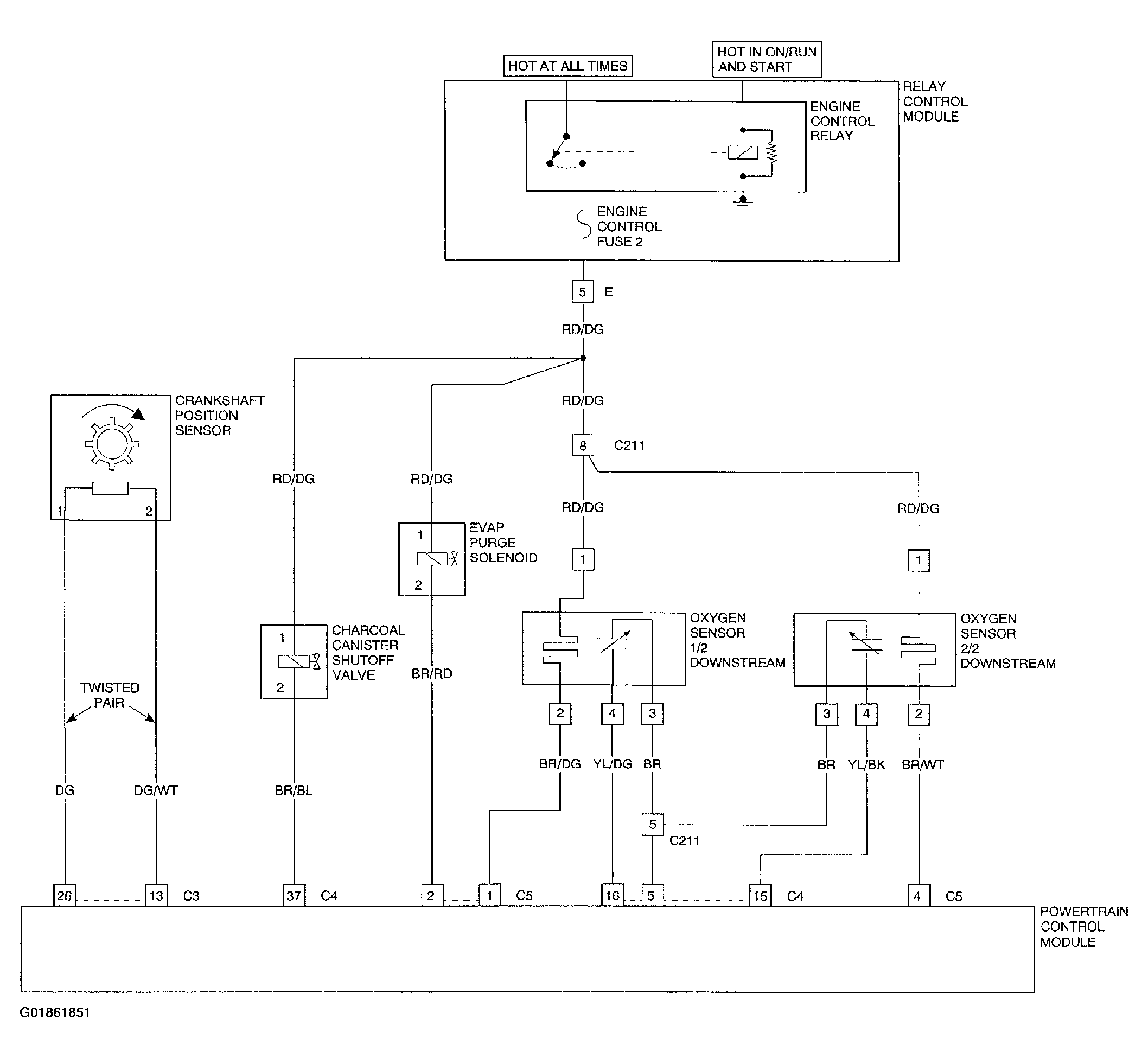

Fig 1: Identifying Powertrain Control Module Circuit Diagram (1 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

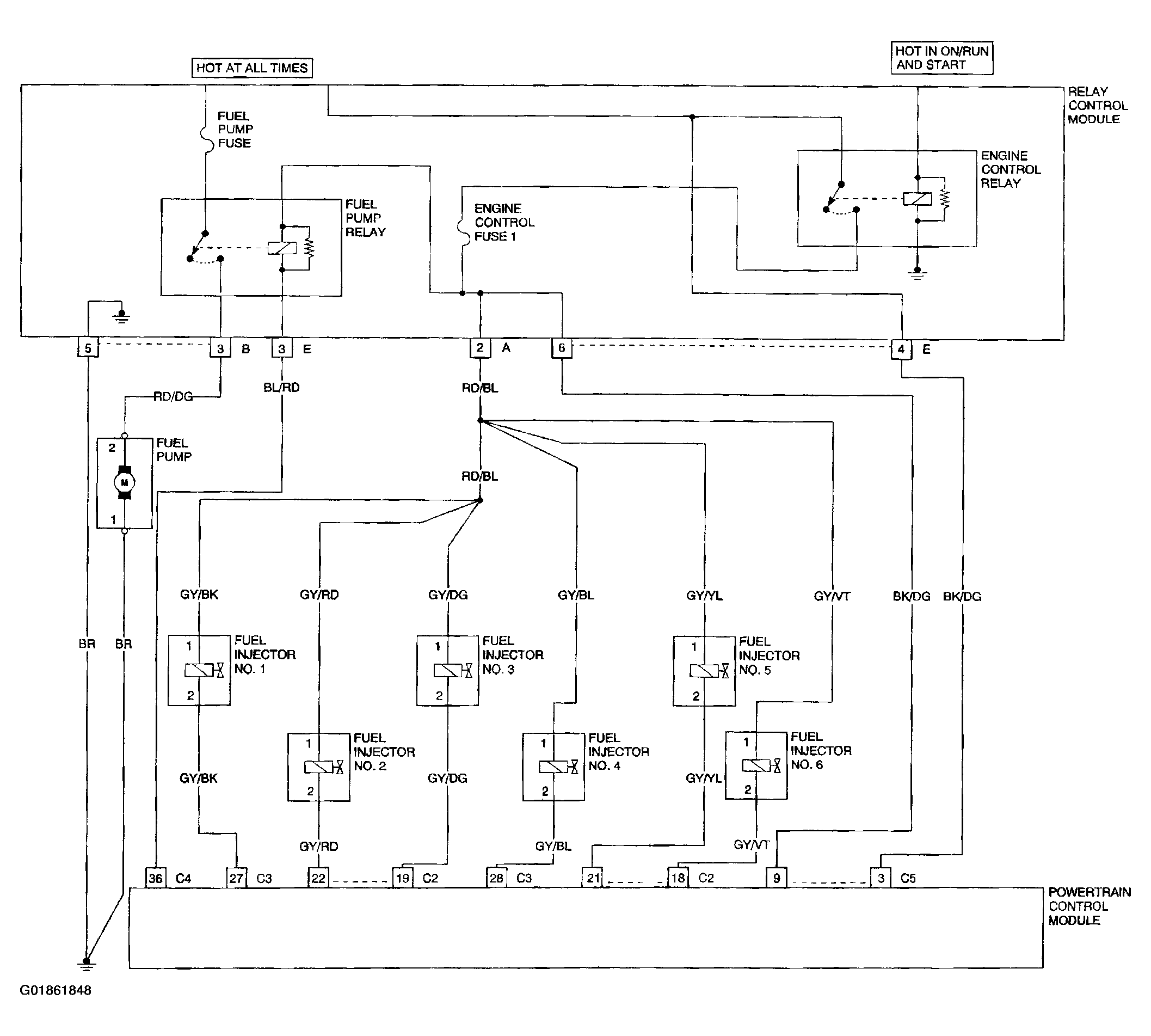

Fig 2: Identifying Powertrain Control Module Circuit Diagram (2 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

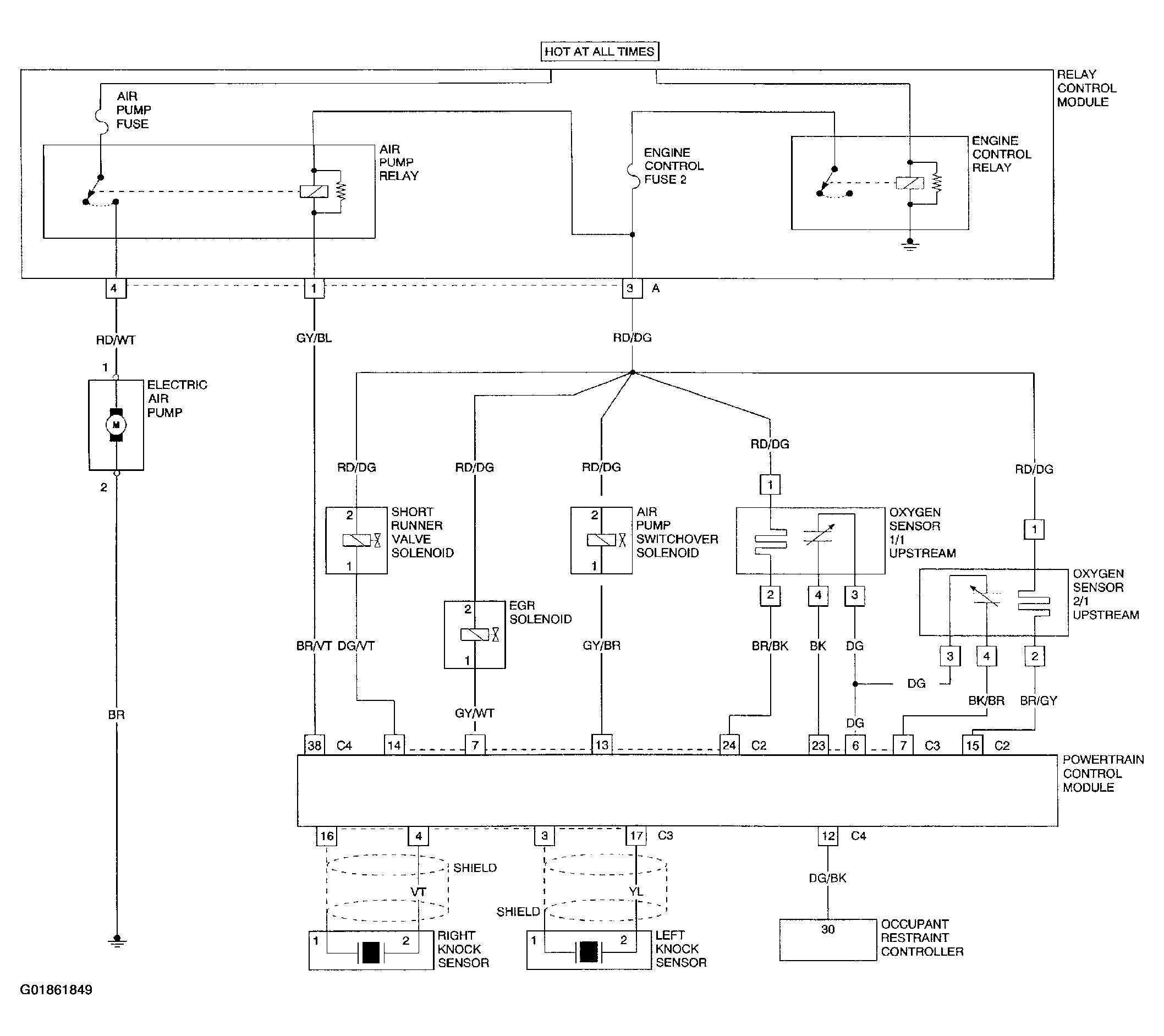

Fig 3: Identifying Powertrain Control Module Circuit Diagram (3 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

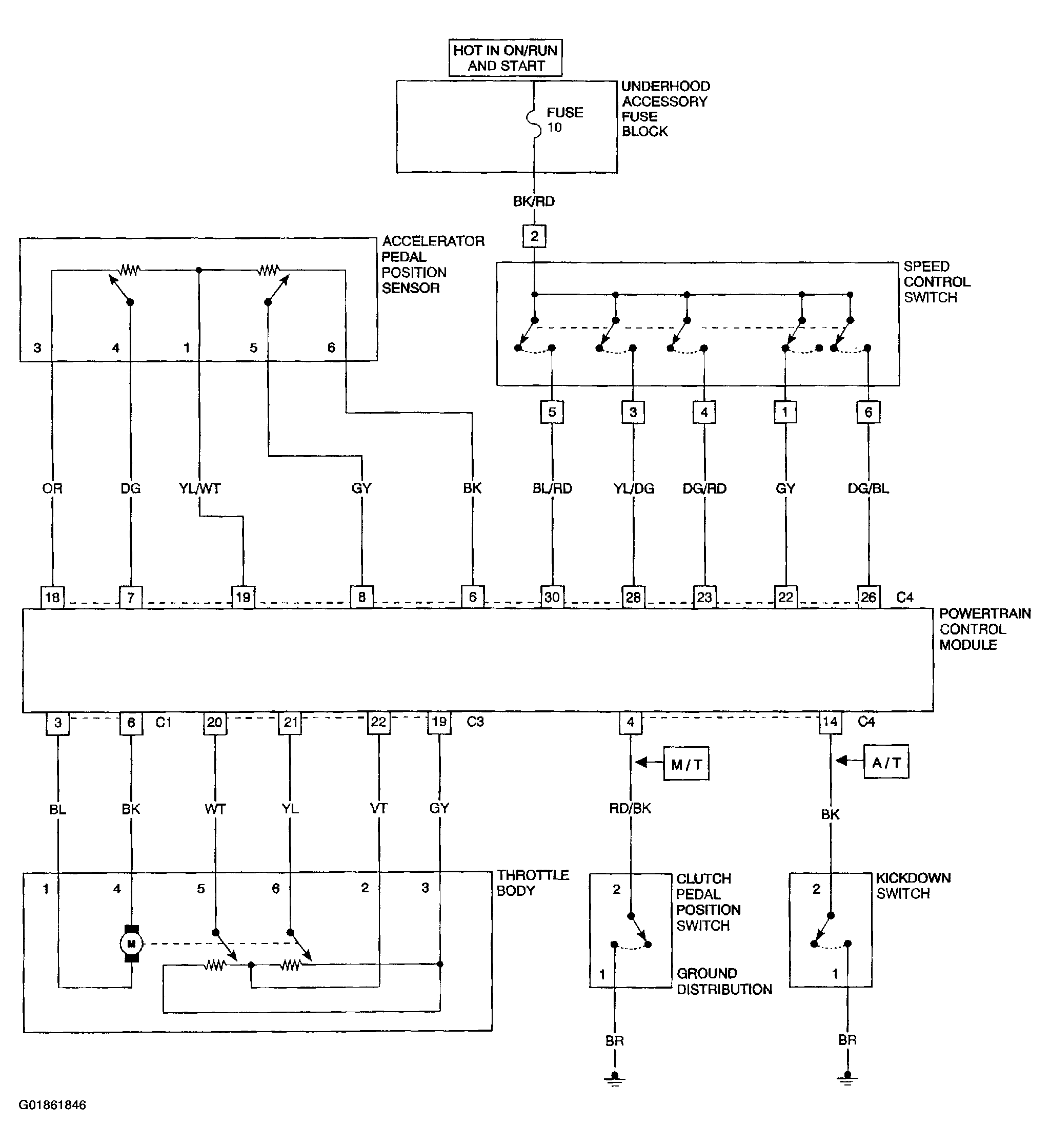

Fig 4: Identifying Powertrain Control Module Circuit Diagram (4 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

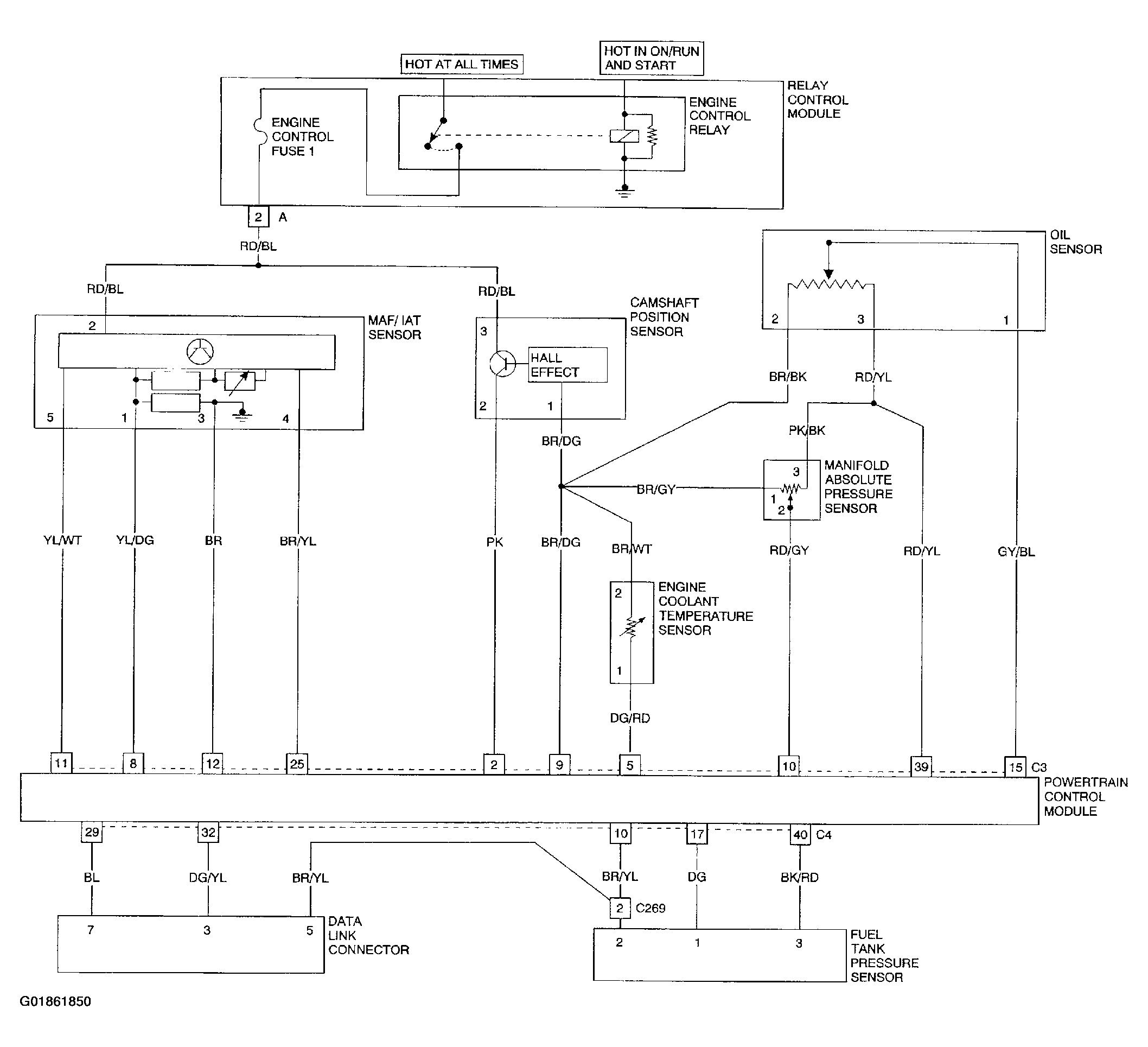

Fig 5: Identifying Powertrain Control Module Circuit Diagram (5 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

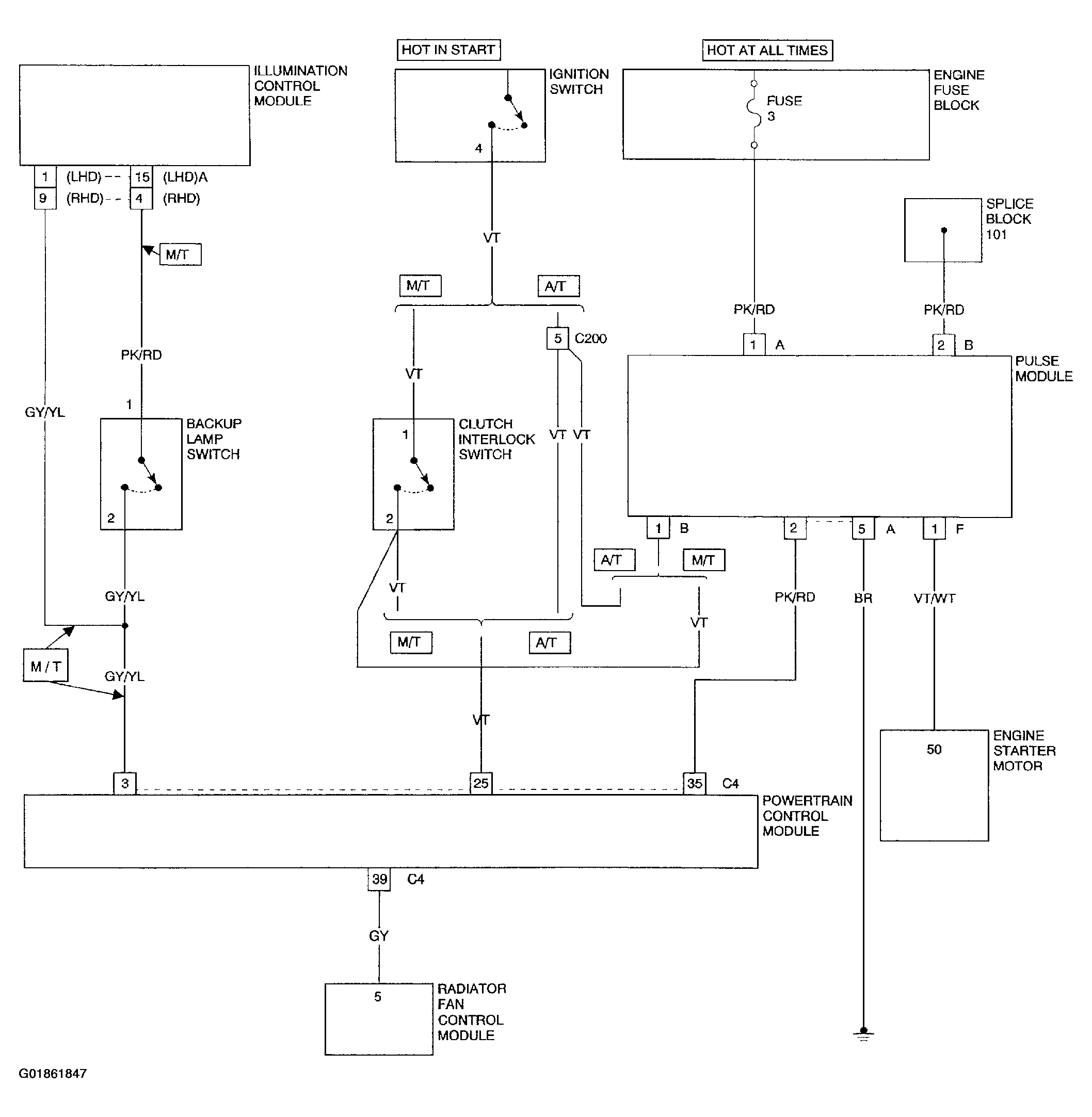

Fig 6: Identifying Powertrain Control Module Circuit Diagram (6 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

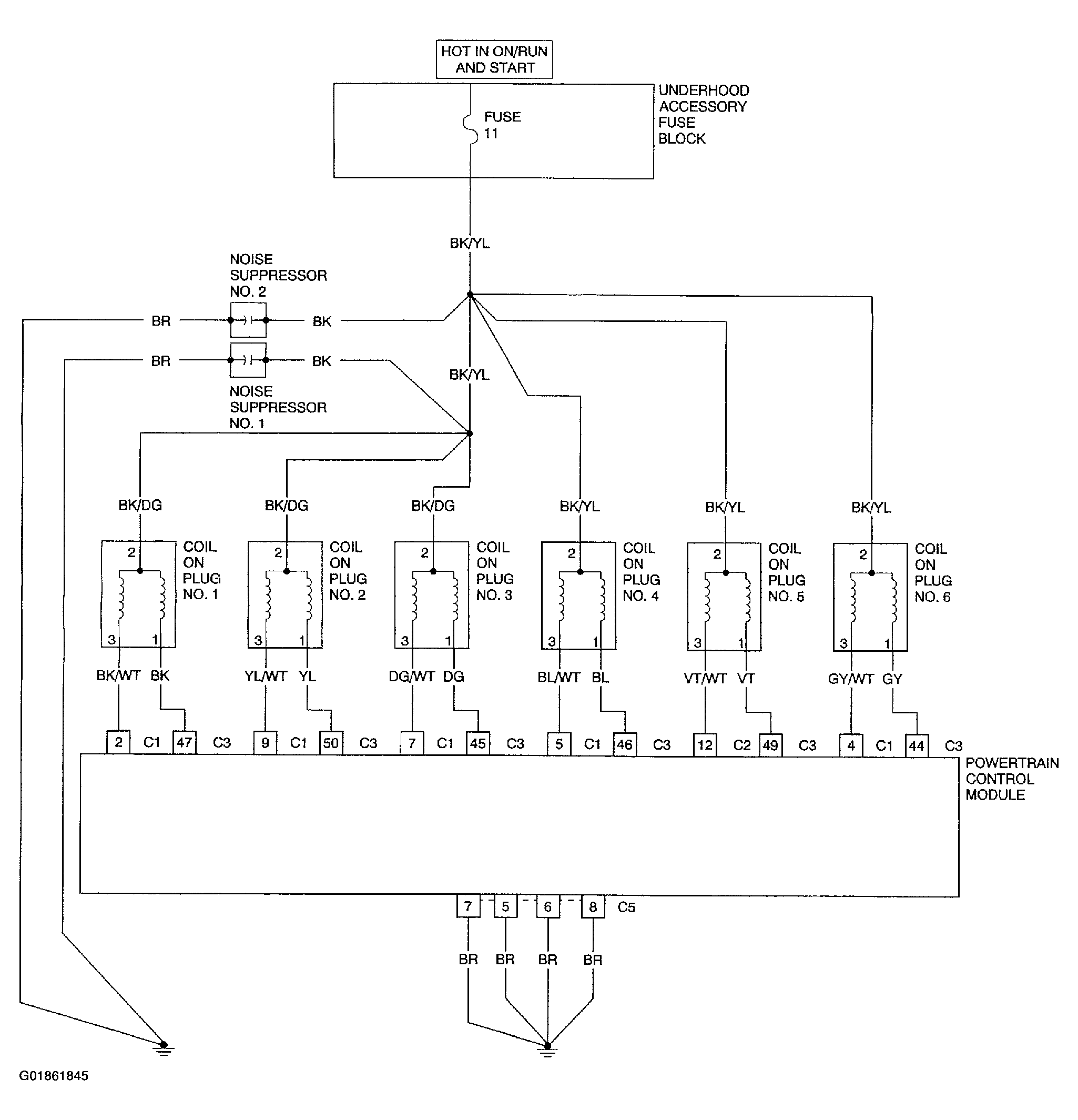

Fig 7: Identifying Powertrain Control Module Circuit Diagram (7 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.
