Support Bracket And Isolator: Removal

  1. Raise and support the vehicle.
  2. Remove the bracket bolt (1).
  3. Remove the bracket and the isolator (2) from the exhaust hanger.
  4. Remove the isolator from the bracket.

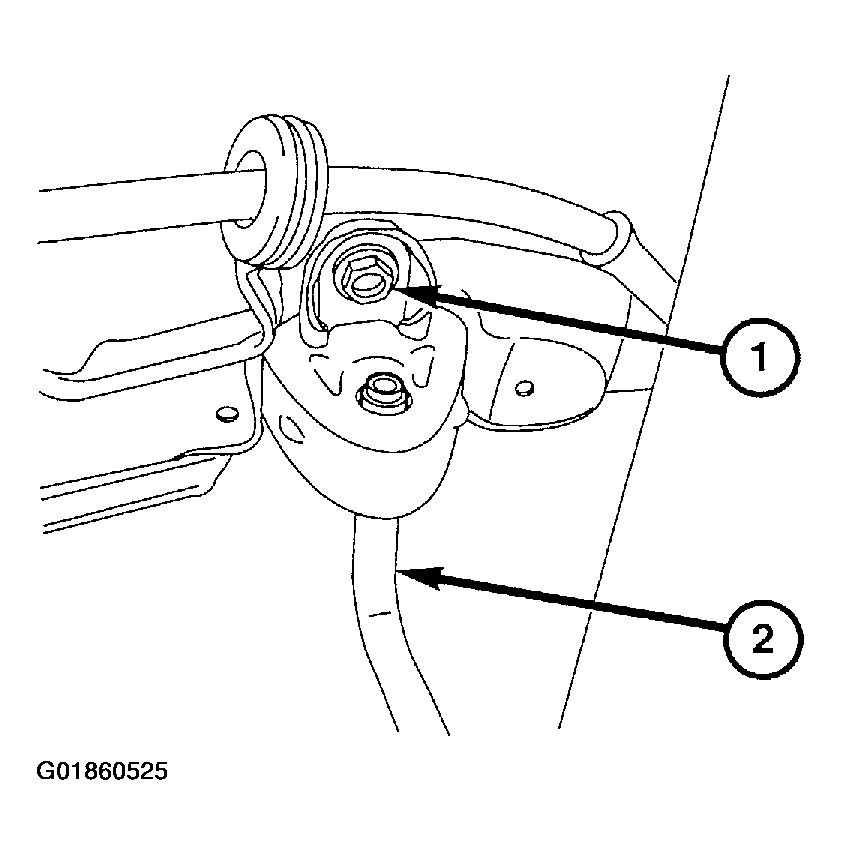

    Fig 1: Removing Bracket Bolt & Isolator
    G01860525Courtesy of DAIMLERCHRYSLER CORP.
