Manifold Tune Valve: Installation

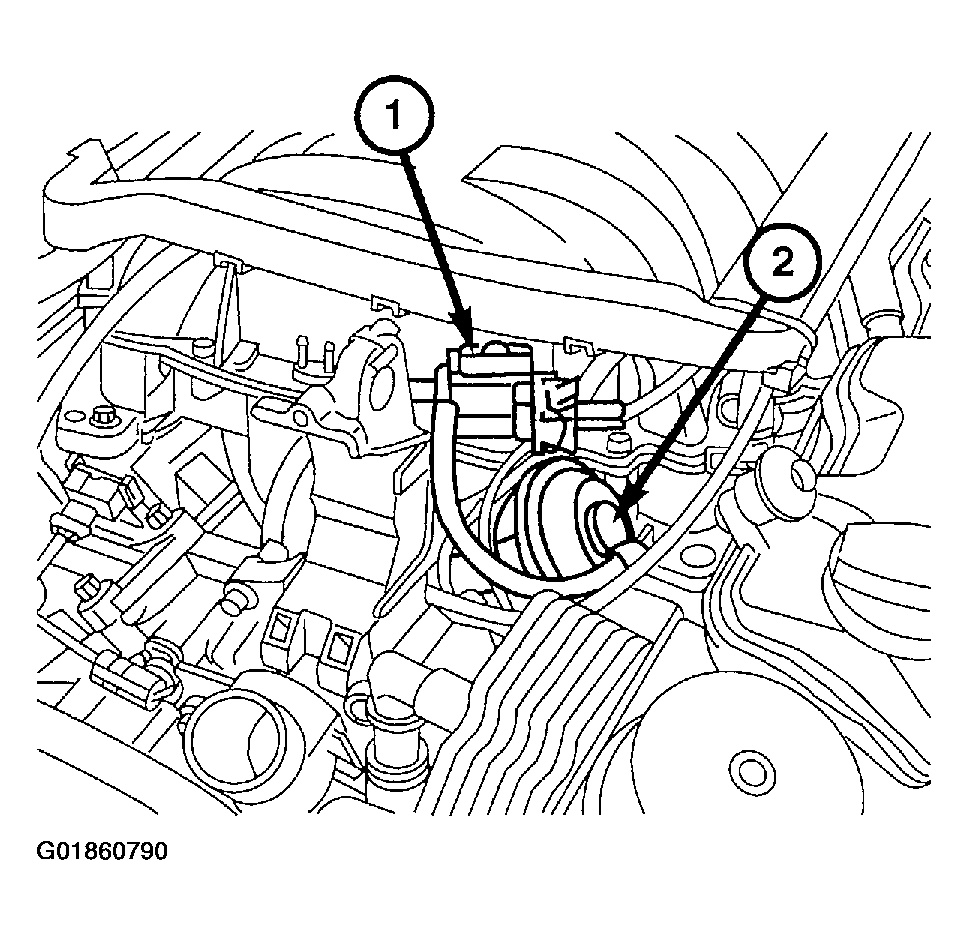

- Install the intake manifold tune valve (2) to the intake manifold.
Courtesy of DAIMLERCHRYSLER CORP.
- Install the tune valve arm retaining nut the valve rod. Tighten the nut to 5 N.m (44 in. lbs.).
- Install the left hand air pump switch over valve and bolts. Tighten the bolts to 20 N.m (15 lb. ft.).
- Connect the vacuum line and the manifold tune valve harness connector at the manifold tune valve solenoid.
- Install the air injection pump. See EMISSIONS CONTROL
article.
- Install the air cleaner housing. See 3.2L V6
article.
- Connect the negative battery cable.
