Exhaust Gas RECIRCULATION: Solenoid: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing.
  3. Disconnect the solenoid harness connector (1).

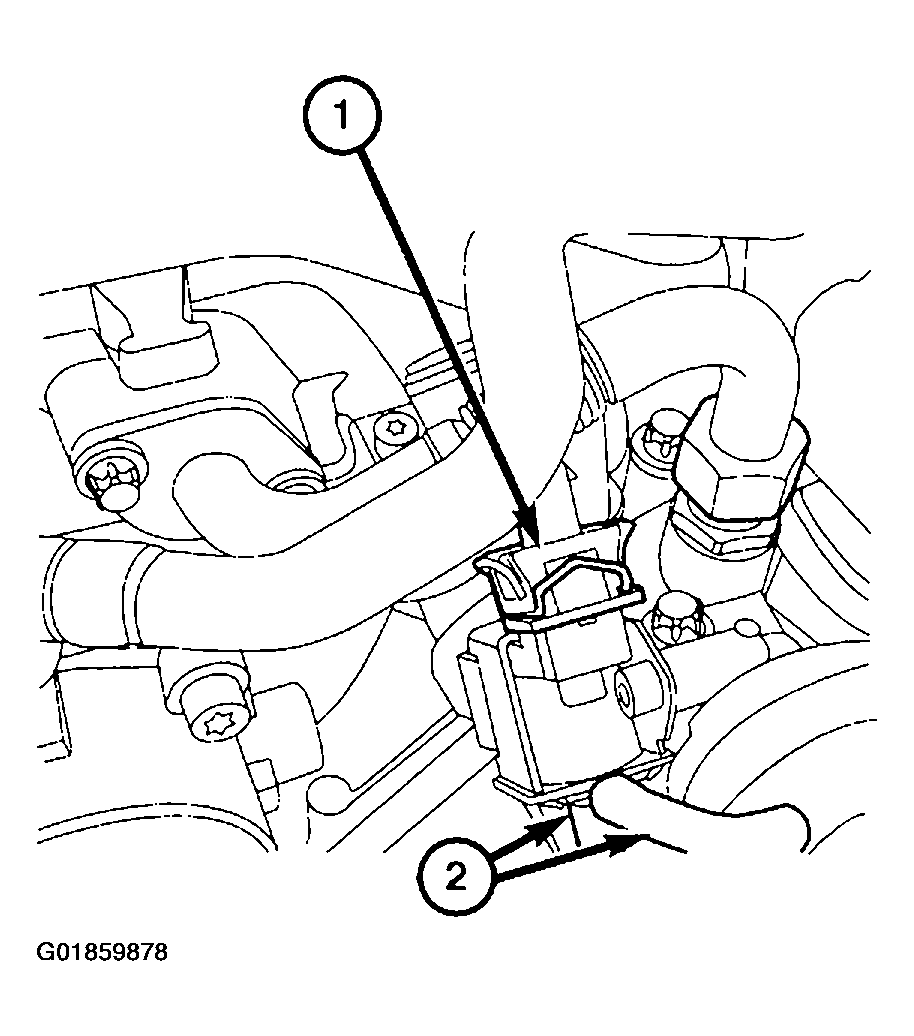

    Fig 1: Disconnecting Solenoid Harness Connector & Vacuum Lines
    G01859878Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the solenoid vacuum lines (2).
  5. Remove the solenoid to valve mounting bolt (2).
  6. Remove the valve to cylinder head mounting bolt (1).

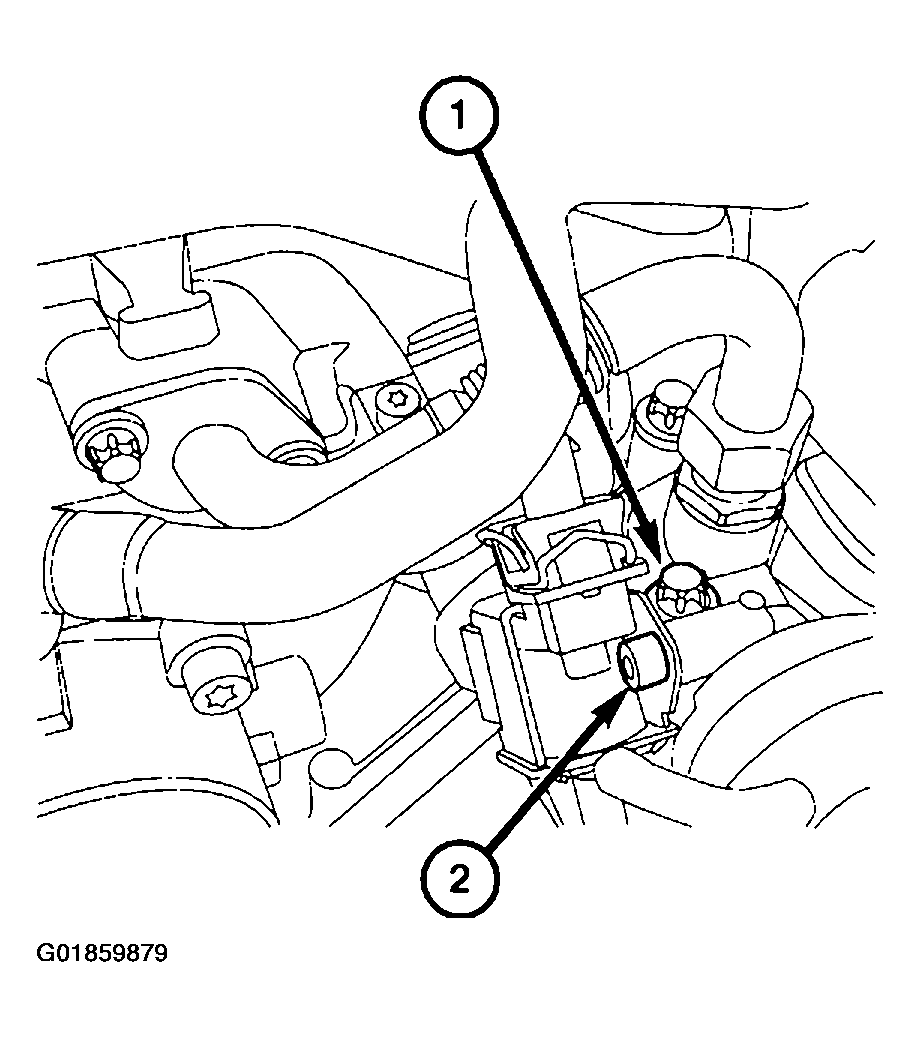

    Fig 2: Removing Solenoid To Valve & Valve To Cylinder Head Mounting Bolts
    G01859879Courtesy of DAIMLERCHRYSLER CORP.
  7. Clean the gasket surfaces. Discard the old gasket. Clean the EGR passages as necessary.
