Torque Specifications

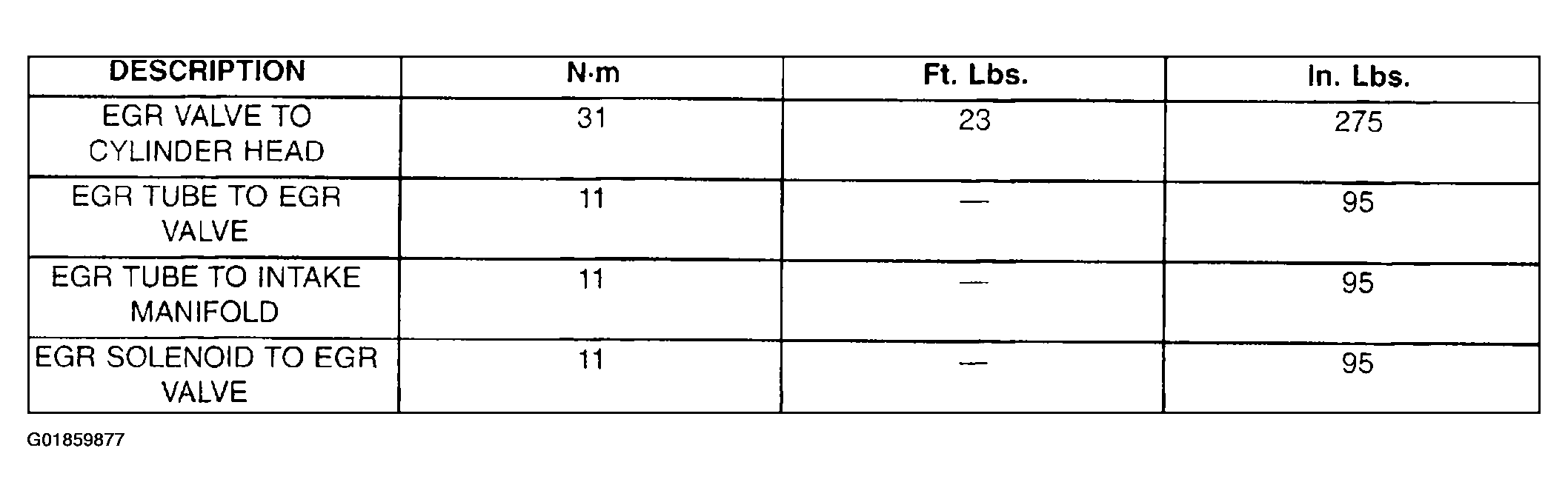

Fig 1: Exhaust Gas Recirculation Torque Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
