Circuit Diagram & Connector Identification

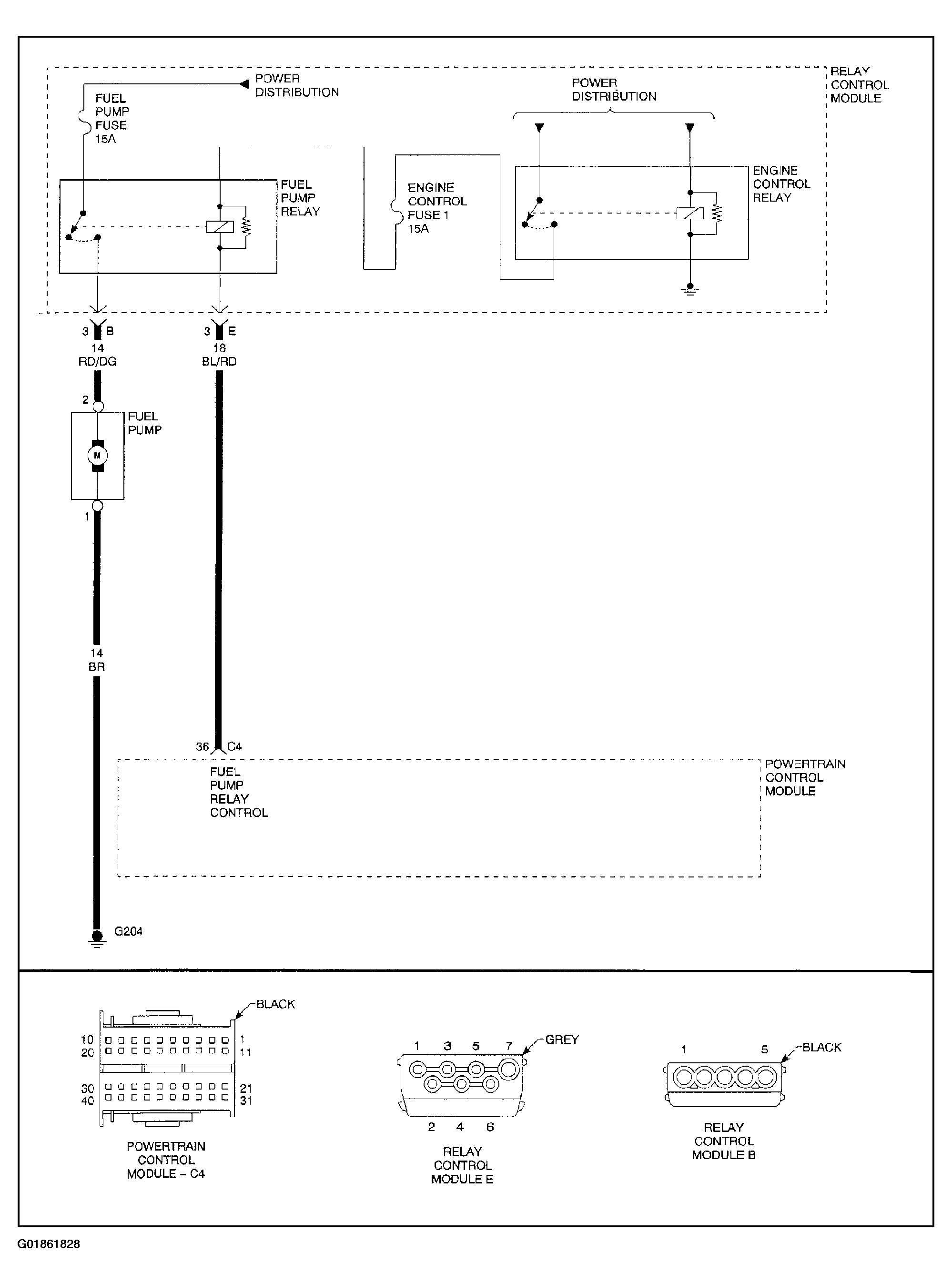

Fig 1: Identifying Fuel Delivery Circuit Diagram & Connector Identification
G01861828Courtesy of DAIMLERCHRYSLER CORP.
