Circuit Diagram & Connector Identification

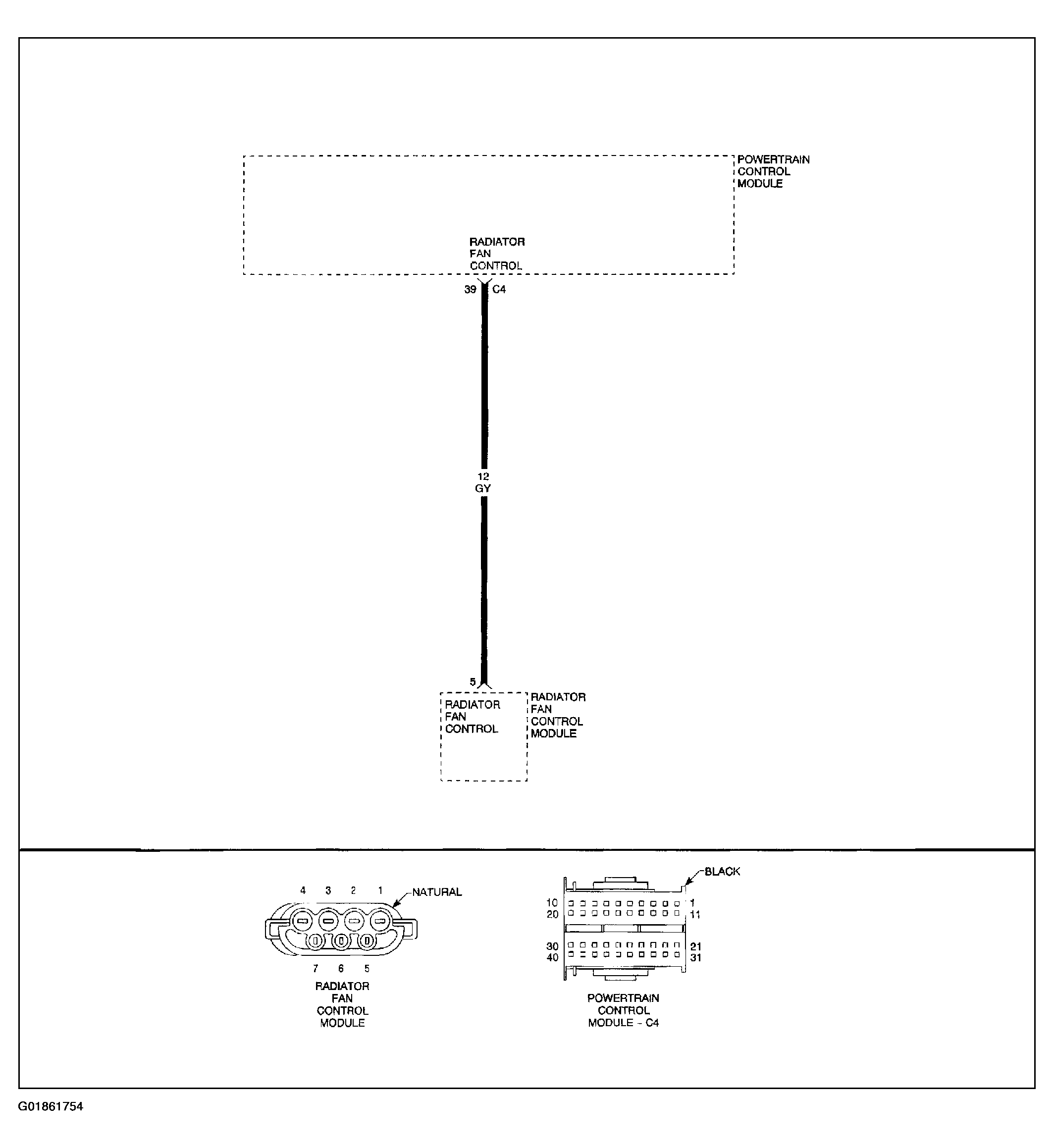

Fig 1: Identifying Cooling Fan Control Circuit High Circuit Diagram & Connector Identification
G01861754Courtesy of DAIMLERCHRYSLER CORP.
