4. Open Fused Ignition Switch Output Circuit

Turn the ignition on.

Measure the voltage of the Fused Ignition Switch Output circuit at the Speed Control Switch harness connector.

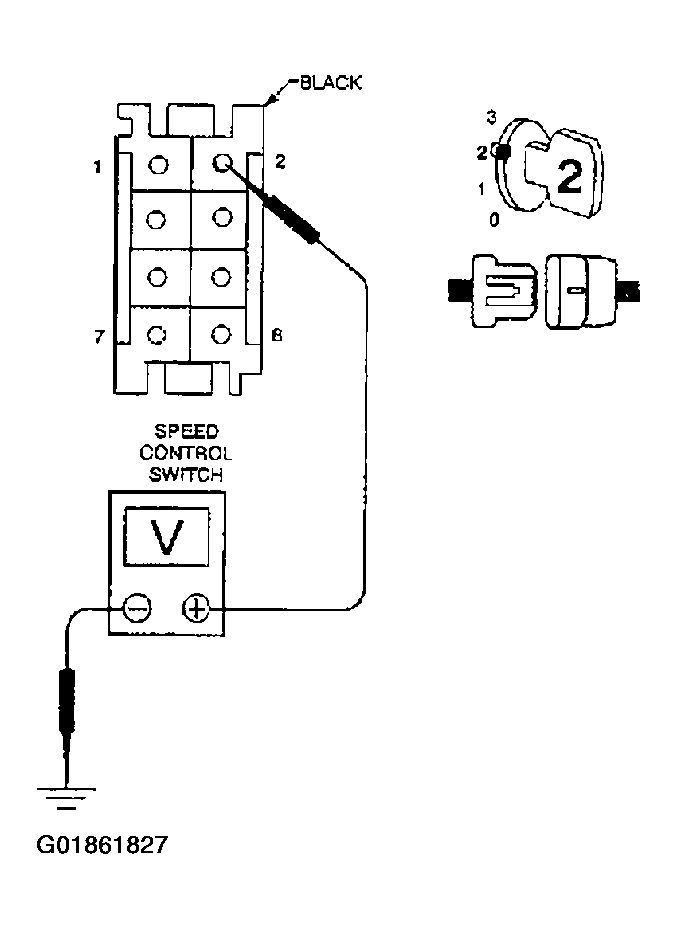

Fig 1: Measuring Voltage Of Fused Ignition Switch Output Circuit

Courtesy of DAIMLERCHRYSLER CORP.

Is the voltage above 10 volts?

1. Yes  >> Replace the Speed Control Switch. See SPEED CONTROL article.

   See POWERTRAIN VERIFICATION TEST - VER 5  .

2. No  >> Repair the Fused Ignition Switch Output circuit for an open.

   See POWERTRAIN VERIFICATION TEST - VER 5  .
