Procedures

REMOVAL

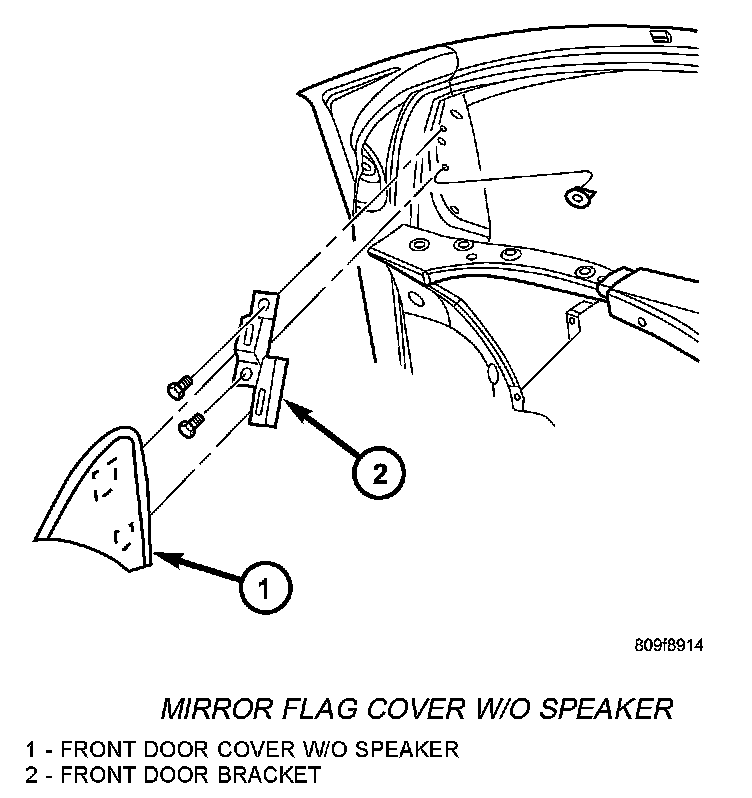

Mirror Flag Cover W/O Speaker:

1. Pull cover, release dips and remove .
2. Remove the bolts and remove the bracket, if necessary.

INSTALLATION
1. If previously removed, install the door bracket and bolts.
2. Install the cover and engage the clips.

SIDE VIEW MIRROR FLAG

REMOVAL - With SPEAKER
1. Open the front door.

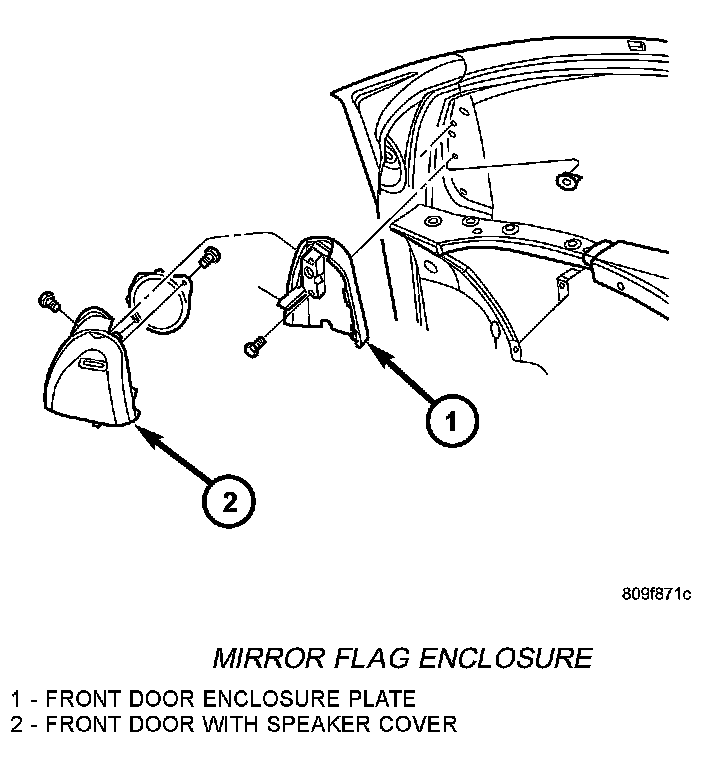

Mirror Flag Enclosure:

2. Remove fasteners attaching the front door flag enclosure cover to the door. Remove speaker from cover, if necessary .
3. Remove fasteners attaching the front door flag enclosure plate to front door, if necessary.

INSTALLATION - With SPEAKER
1. Install fasteners attaching the front door flag enclosure plate to front door.
2. Install speaker to front door flag enclosure cover, if necessary.
3. Install fasteners attaching the front door flag enclosure cover to the door.
