No Response From PCM (PCI Bus)

Test 1:

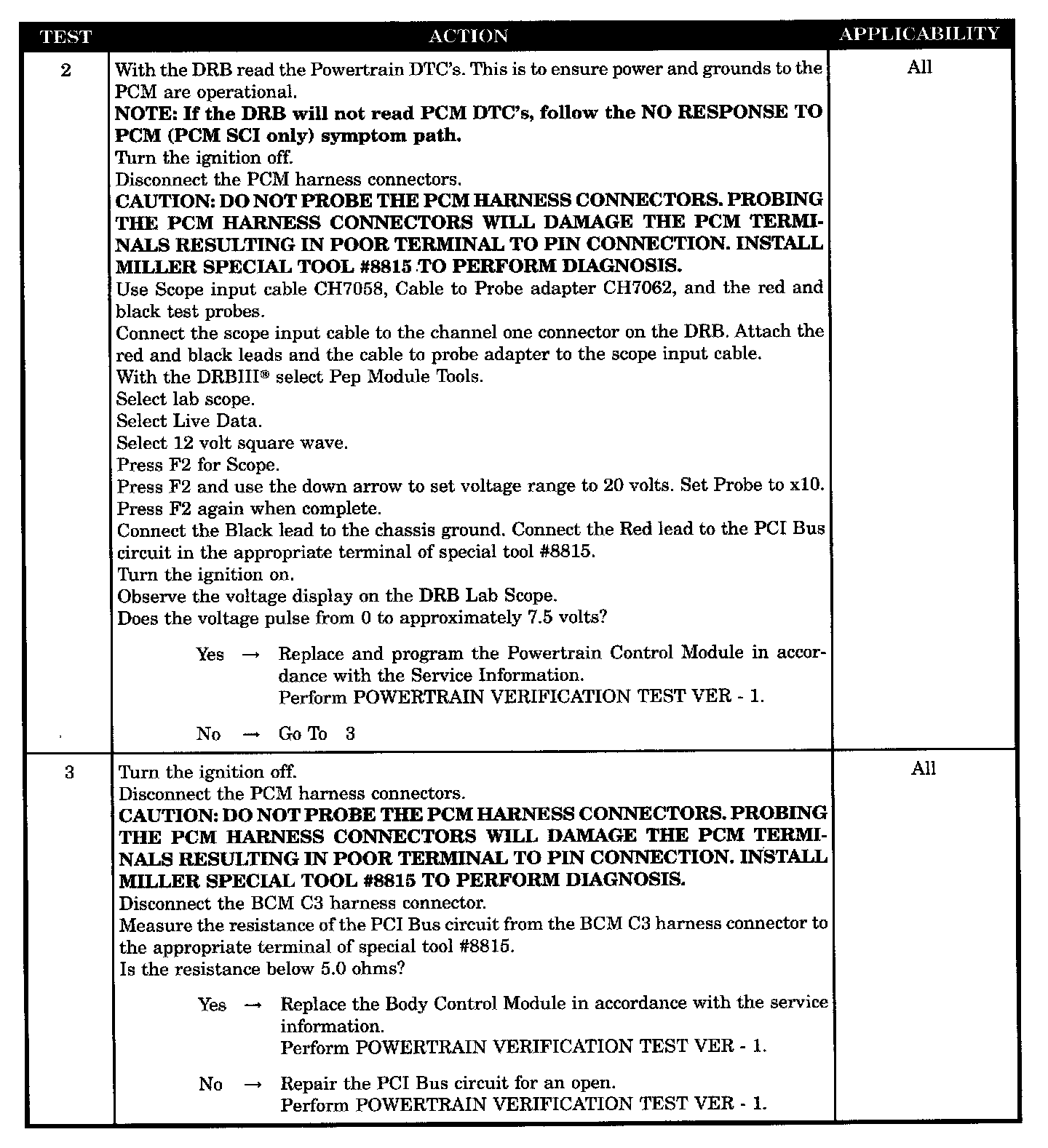

Test 2 - 3:






Symptom:
NO RESPONSE FROM PCM (PCI BUS)

POSSIBLE CAUSES
- PCM PCI No Response
- Powertrain Control Module
- PCI Bus Circuit Open
- Body Control Module
