Ignition Switch Connector End View

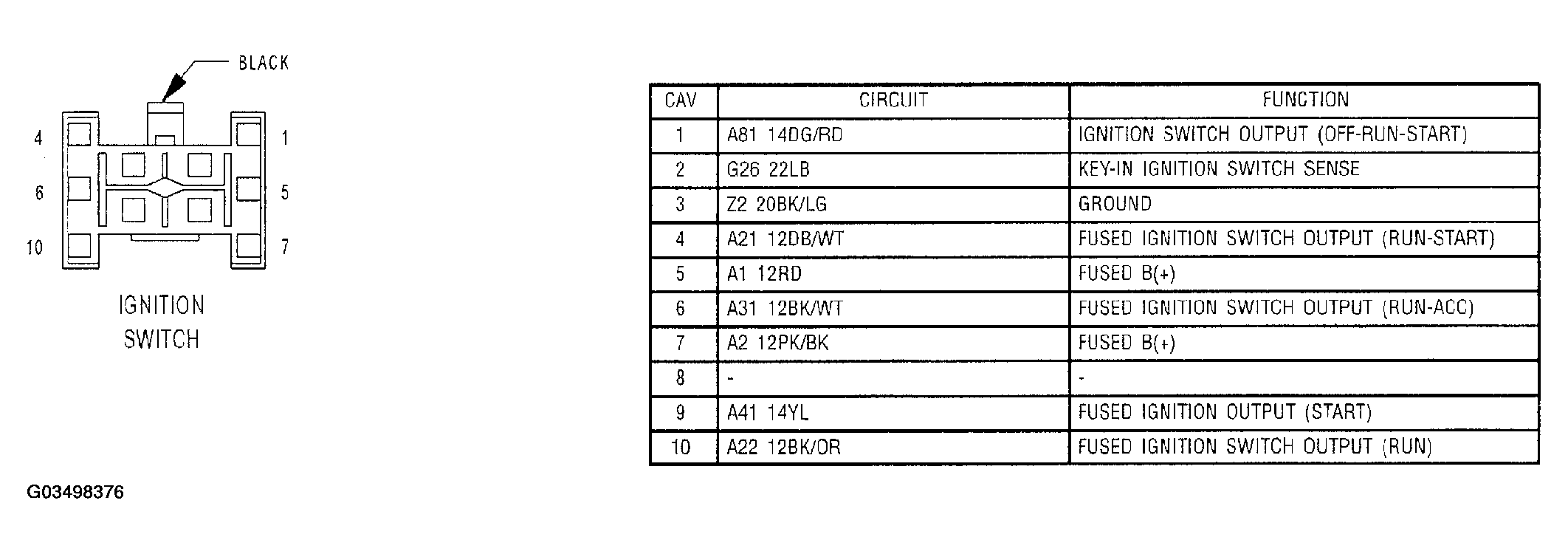

Fig 1: Ignition Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
