Sentry Key Immobilize Module: Installation

NOTE: If the SKIM is replaced with a new unit, a DRB III(R) scan tool and the proper Body Diagnostic Procedures Manual MUST be used to initialize the new SKIM and to program at least two Sentry Key transponders.
  1. Slide the SKIM toward the steering column making sure the SKIM antenna ring is around the ignition cylinder housing (Figure ).
  2. Install the one screw securing the SKIM to the bottom of the steering column.
  3. Engage the steering column wire harness to the Sentry Key Immobilizer Module (SKIM).
  4. Install the steering column upper and lower shrouds.
  5. Install knee blocker.

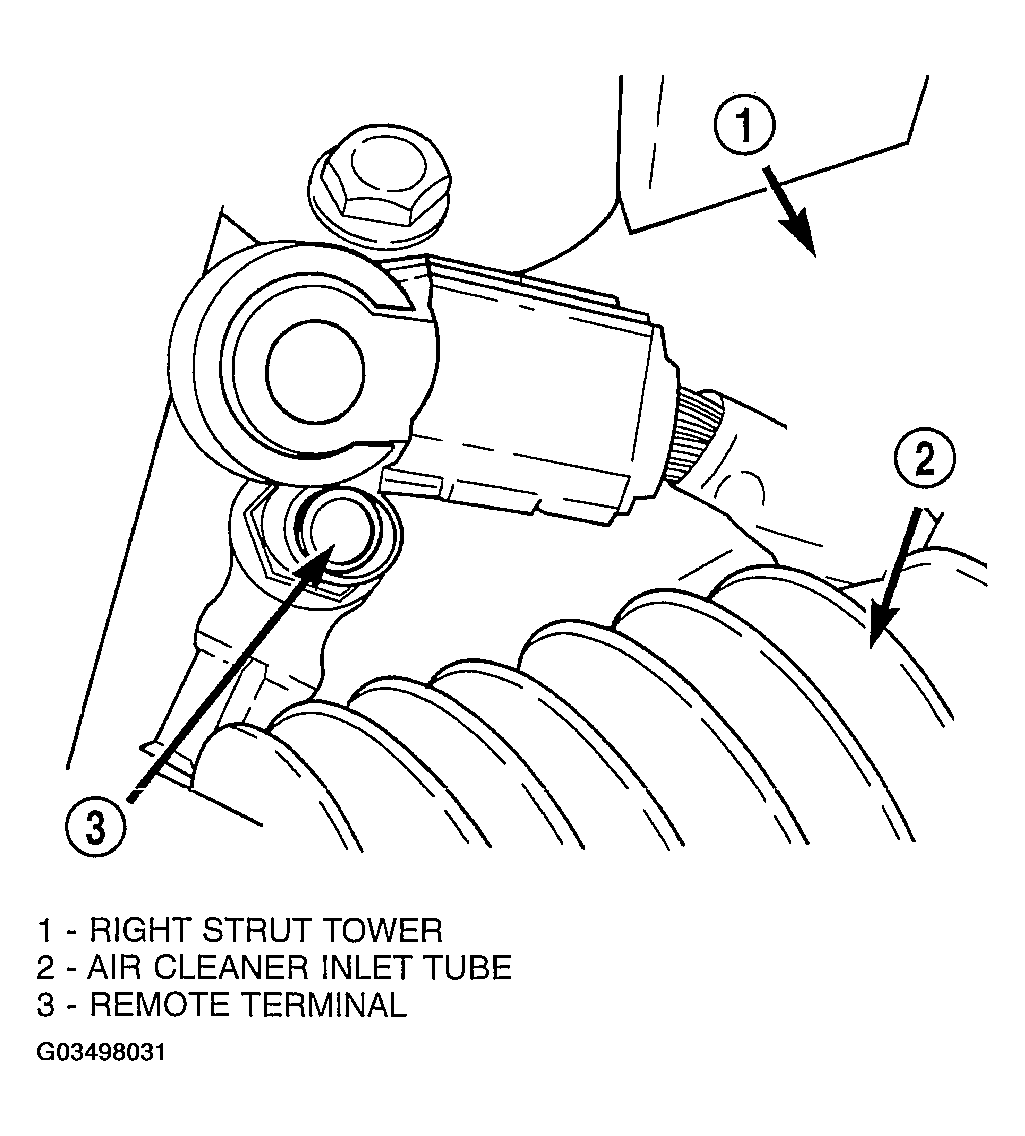

  6. Connect the negative battery cable remote terminal onto the remote battery post (Figure ).
