CLOCKSPRING C1 Connector End View

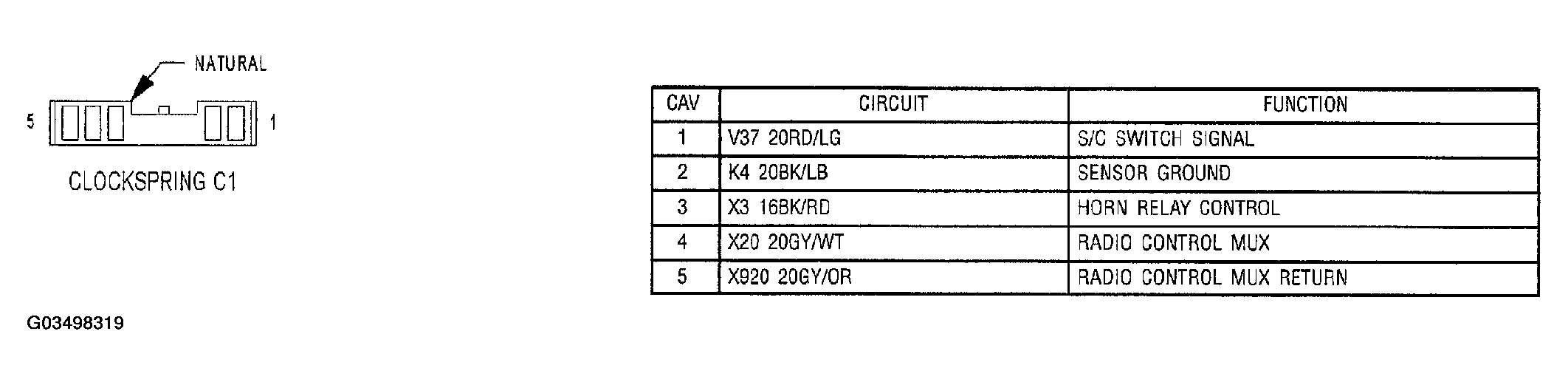

Fig 1: Clockspring Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
