Junction Block Body Control Module-JB Connector End View

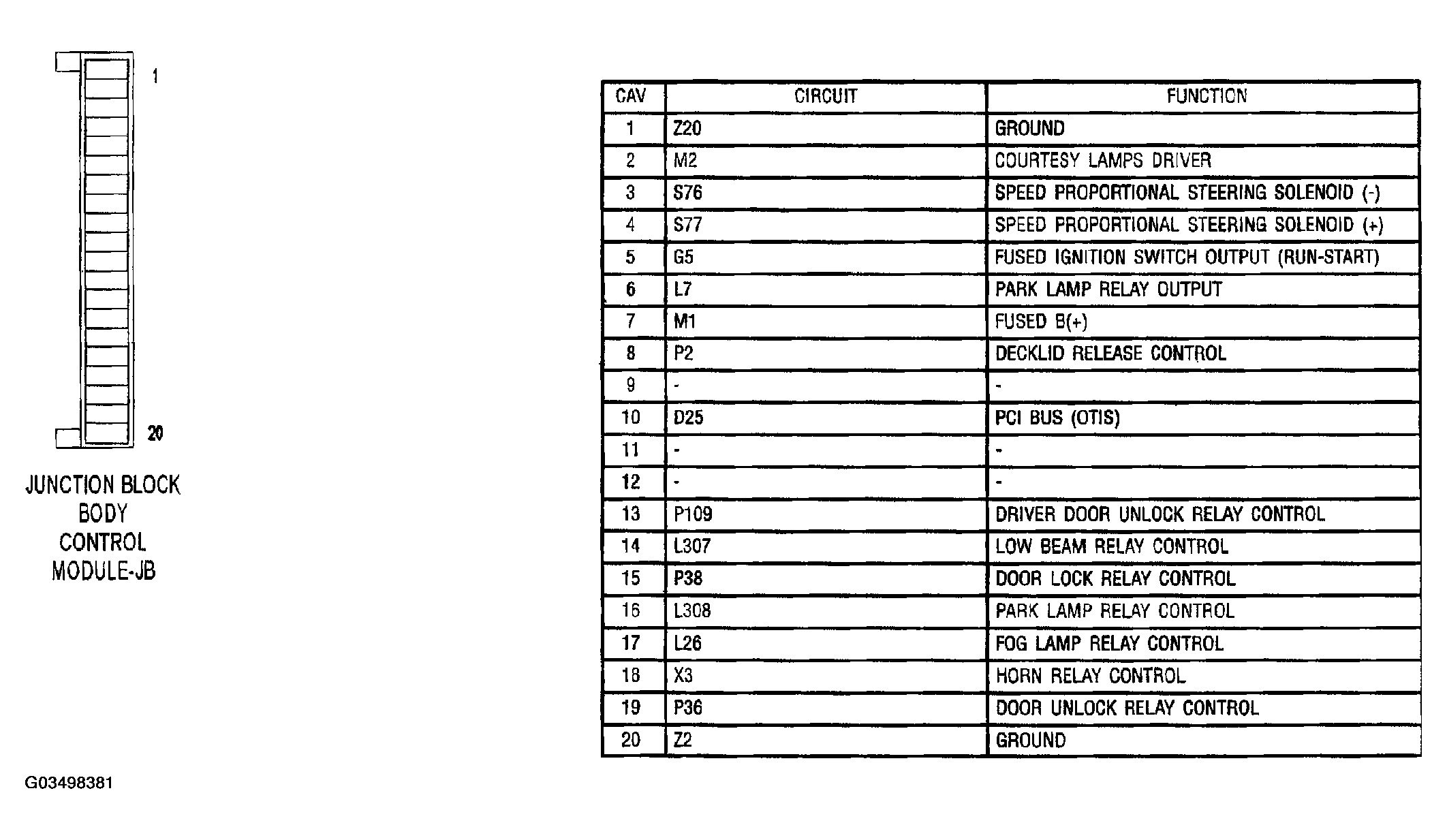

Fig 1: Junction Block Body Control Module Connector End View
G03498381Courtesy of DAIMLERCHRYSLER CORP.
