Fuel Tank: Installation

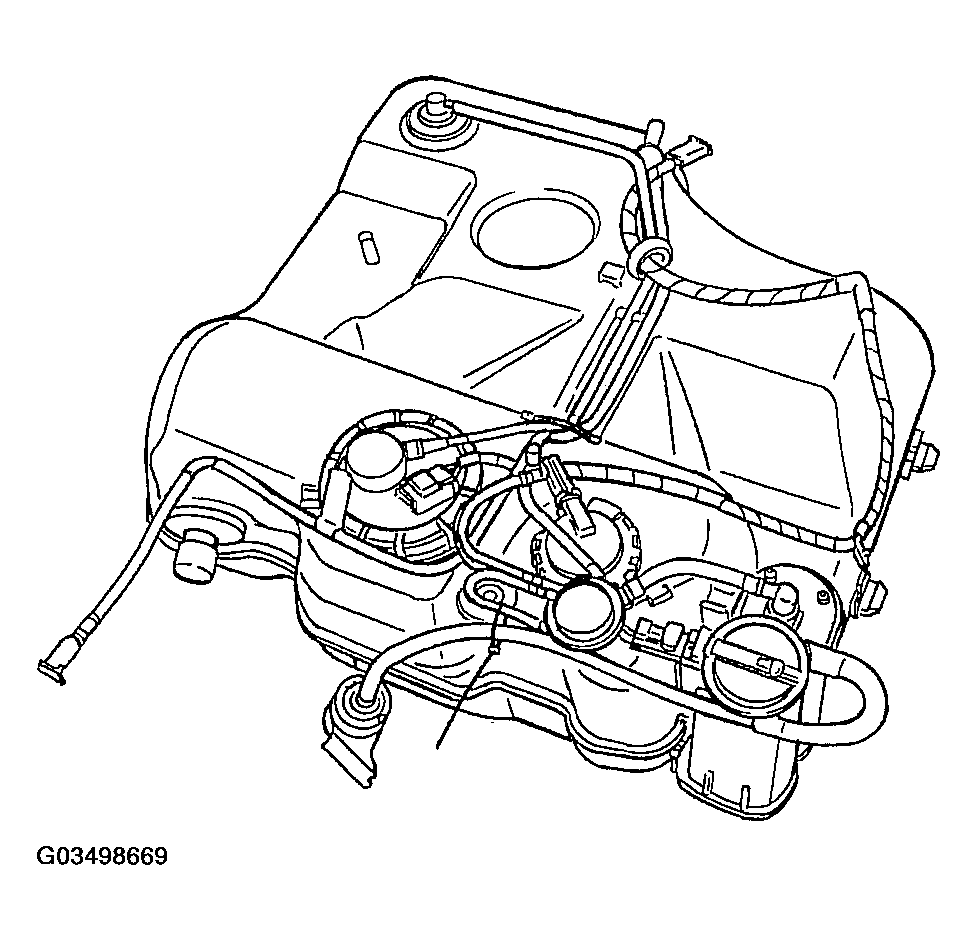

- Raise the fuel tank on the transmission stand (Figure).
- Install fuel pump electrical connector into hole in the body.

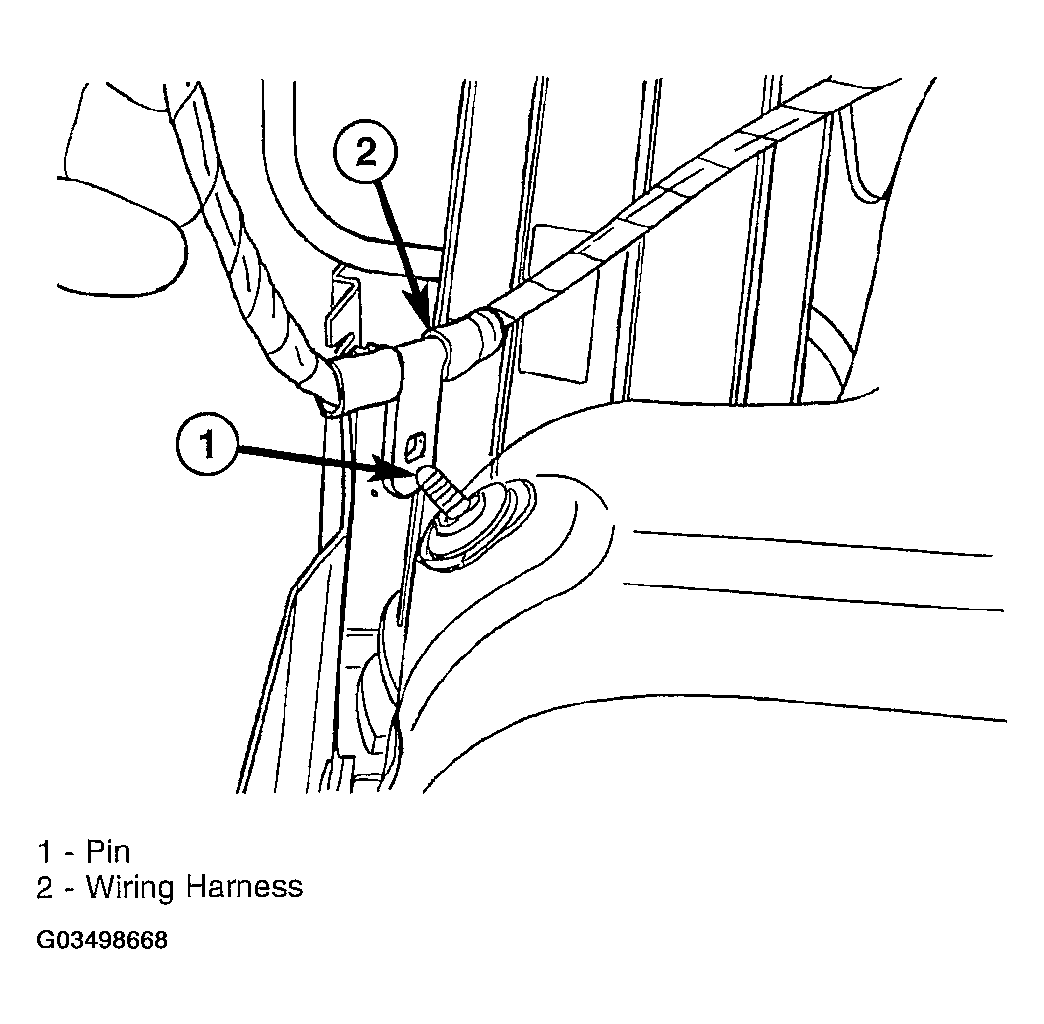

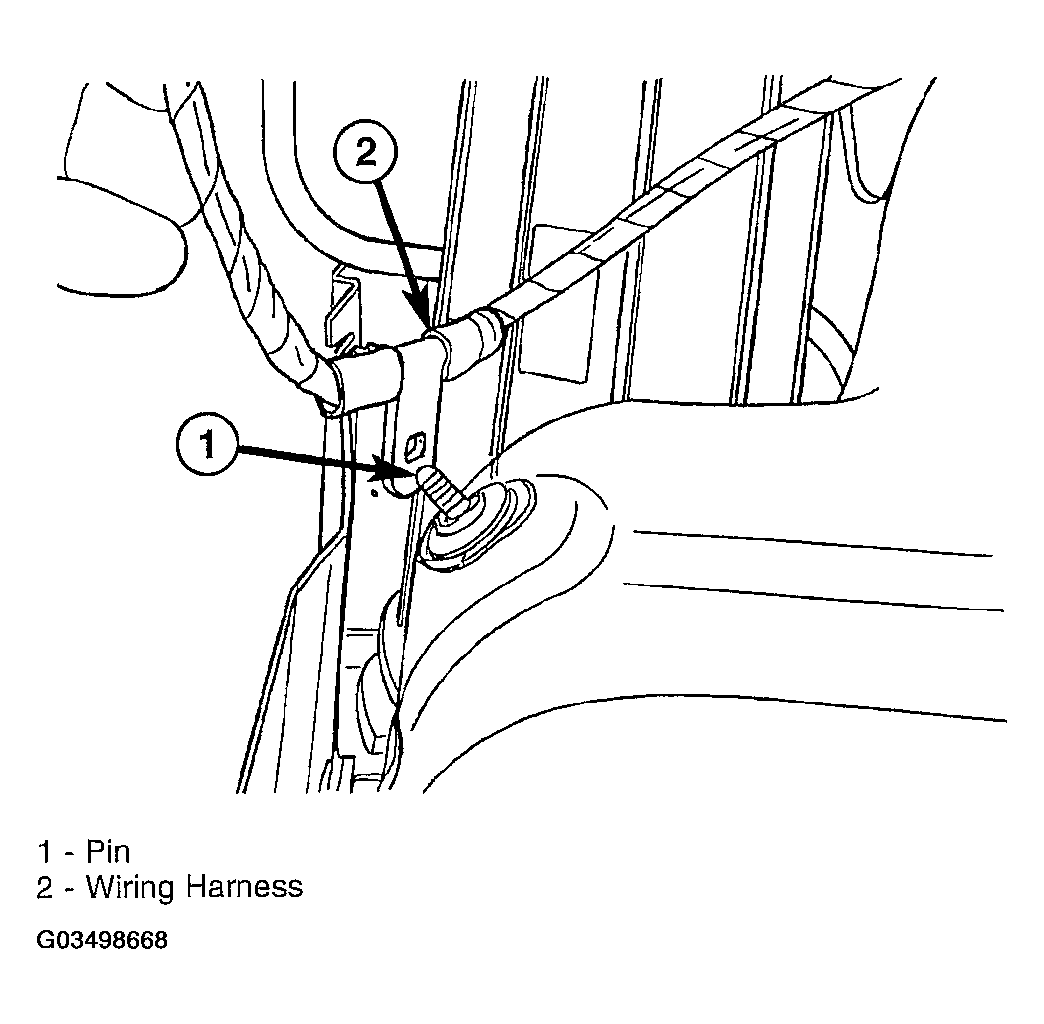

- Connect wiring harness to fuel tank pin, if removed (Figure).

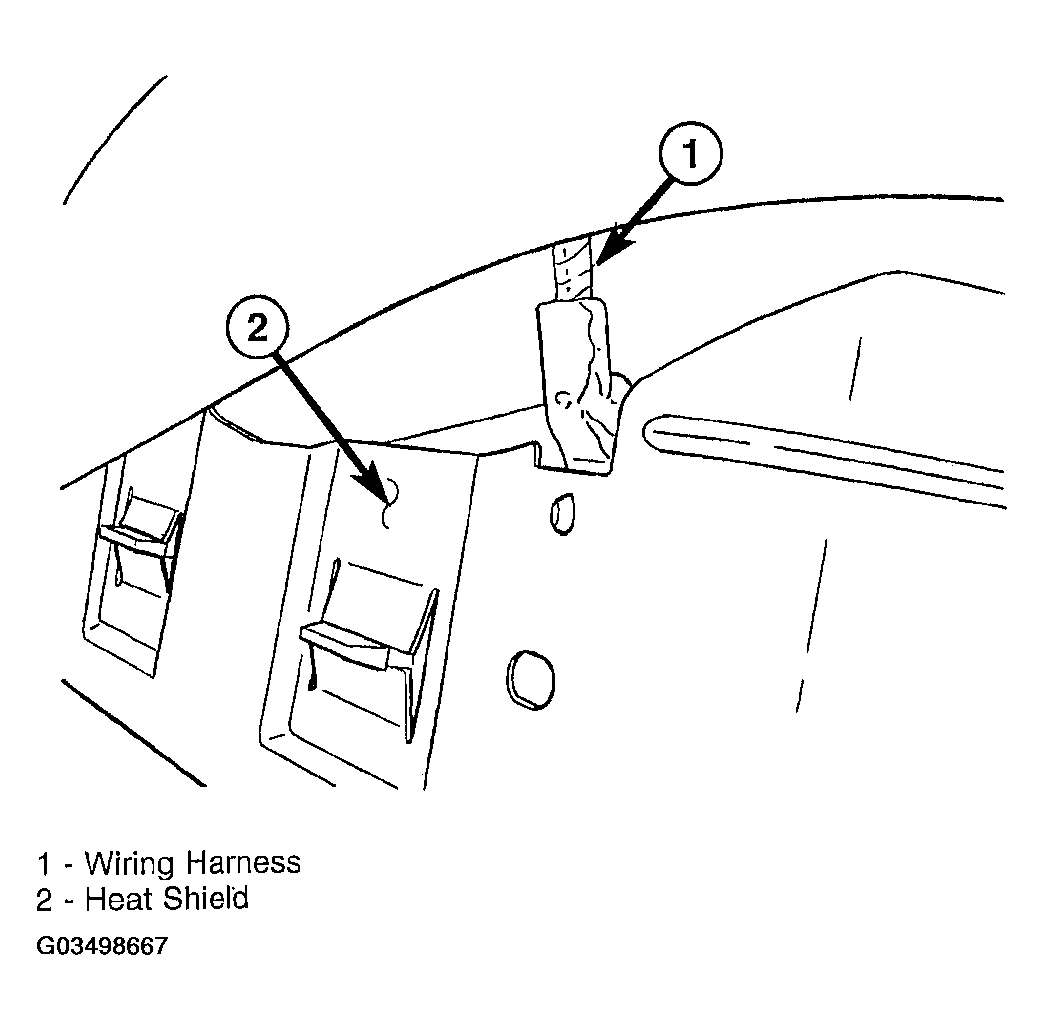

- Connect wiring harness to heat shield, if removed (Figure).

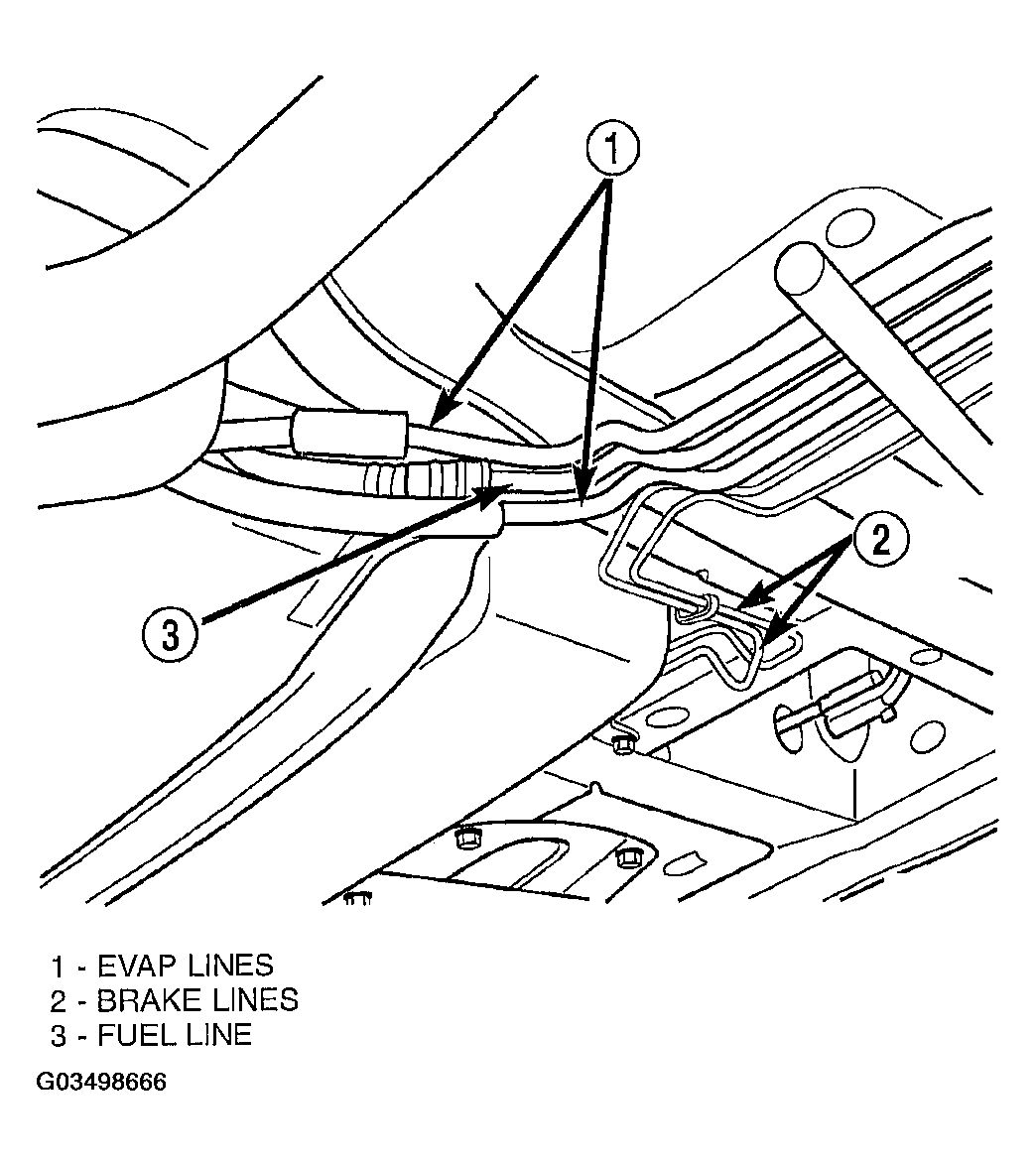

- Connect the purge and vent lines (Figure).
- Raise tank into position and install tank straps.

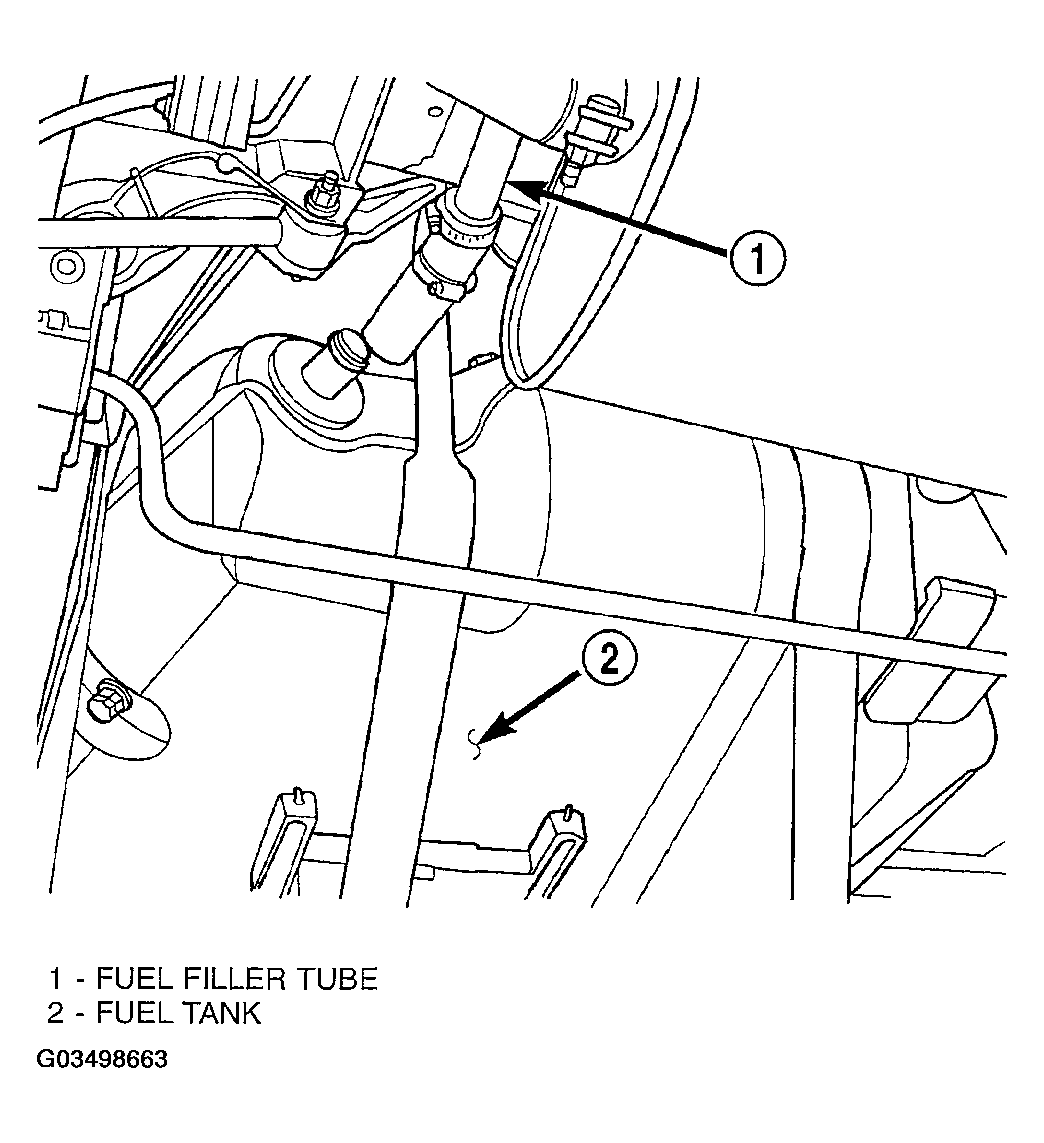

- Install the fuel filler tube and tighten the clamp (Figure).
- Reposition the stabilizer bar and install bolts.
- Lower vehicle.

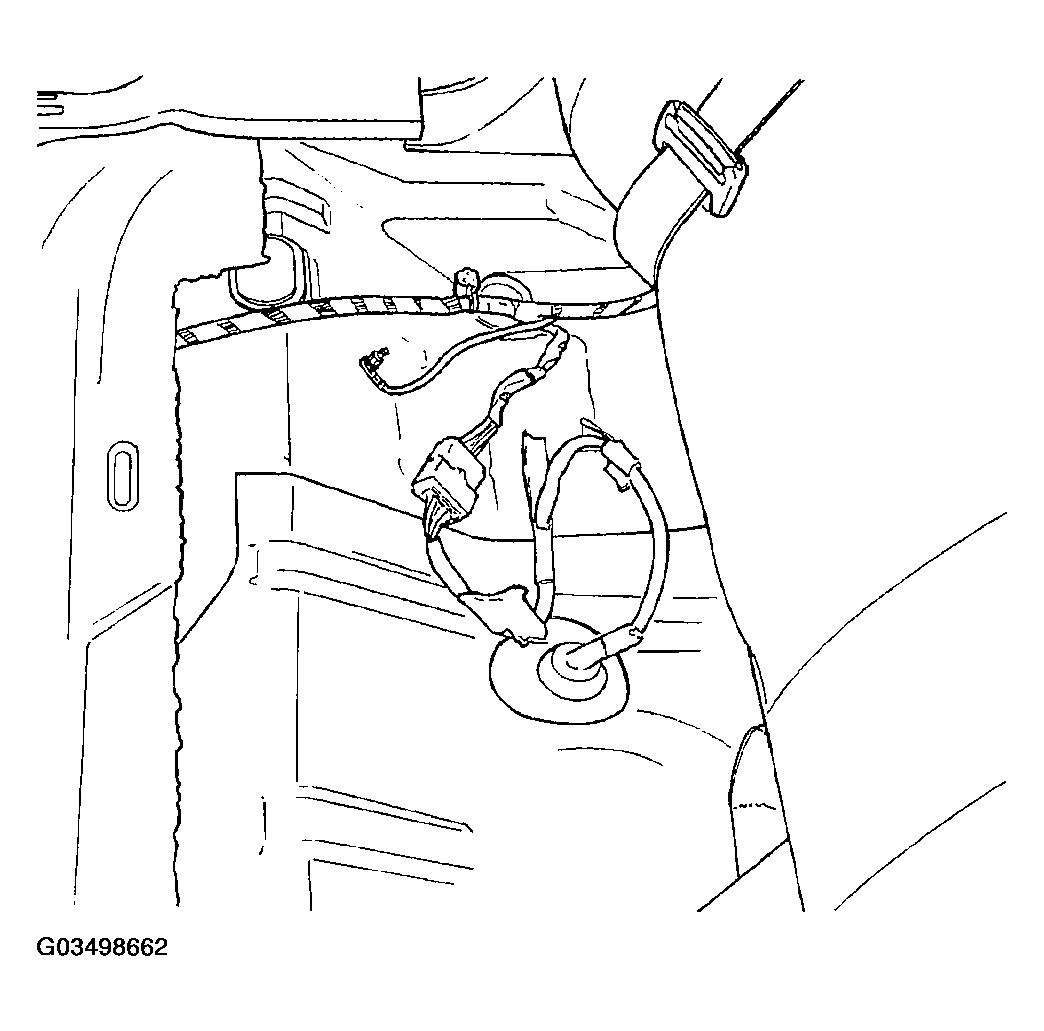

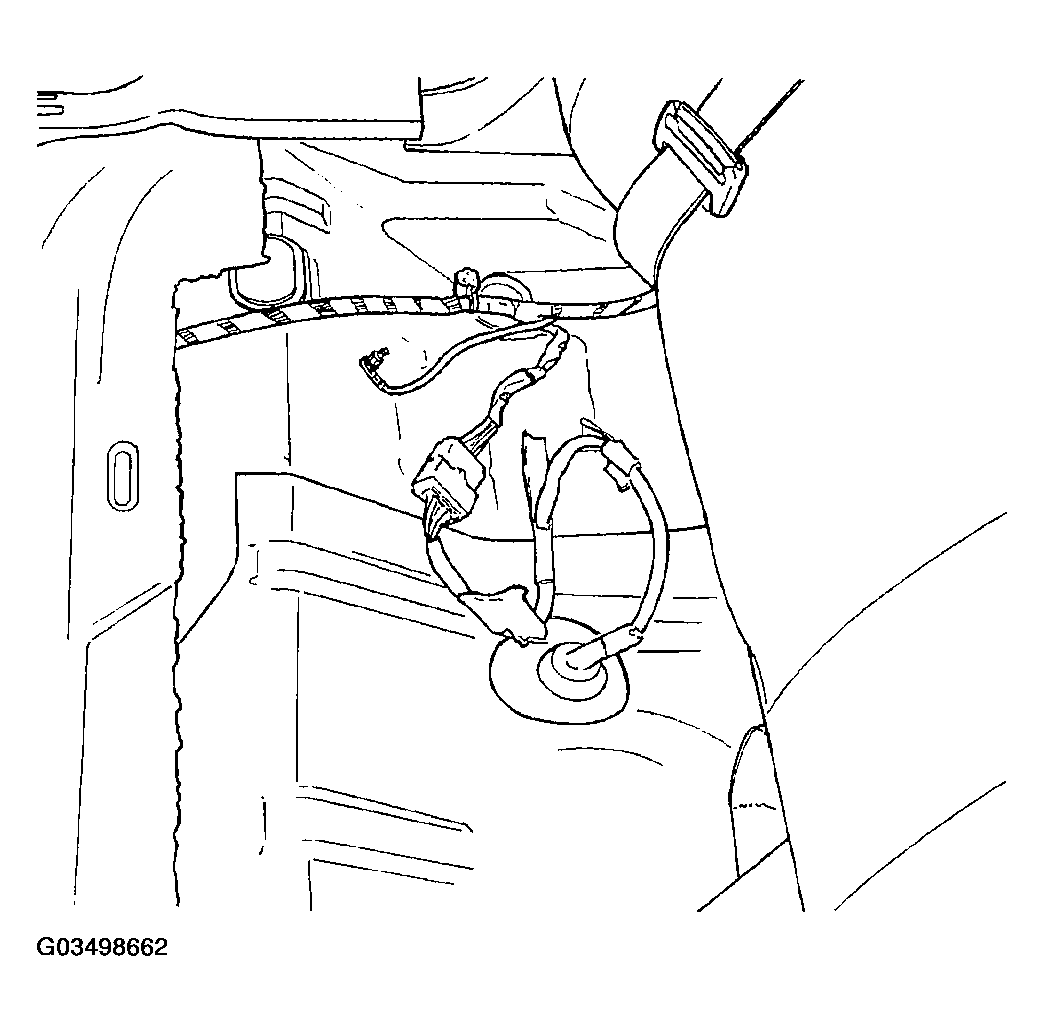

- Connect the fuel pump electrical connector that is under the rear seat (Figure).
- Install the rear seat, refer to SEATS for more information.

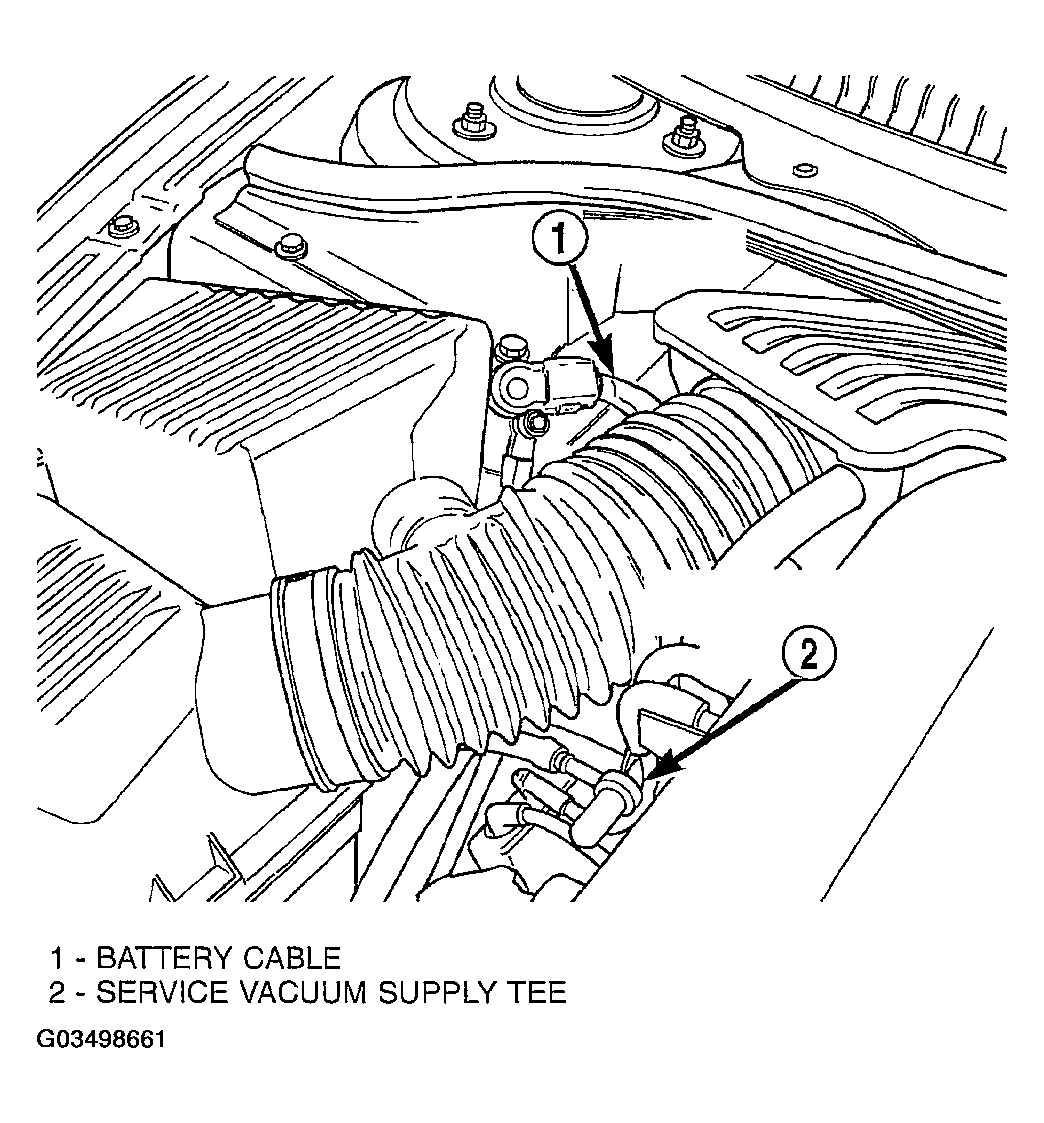

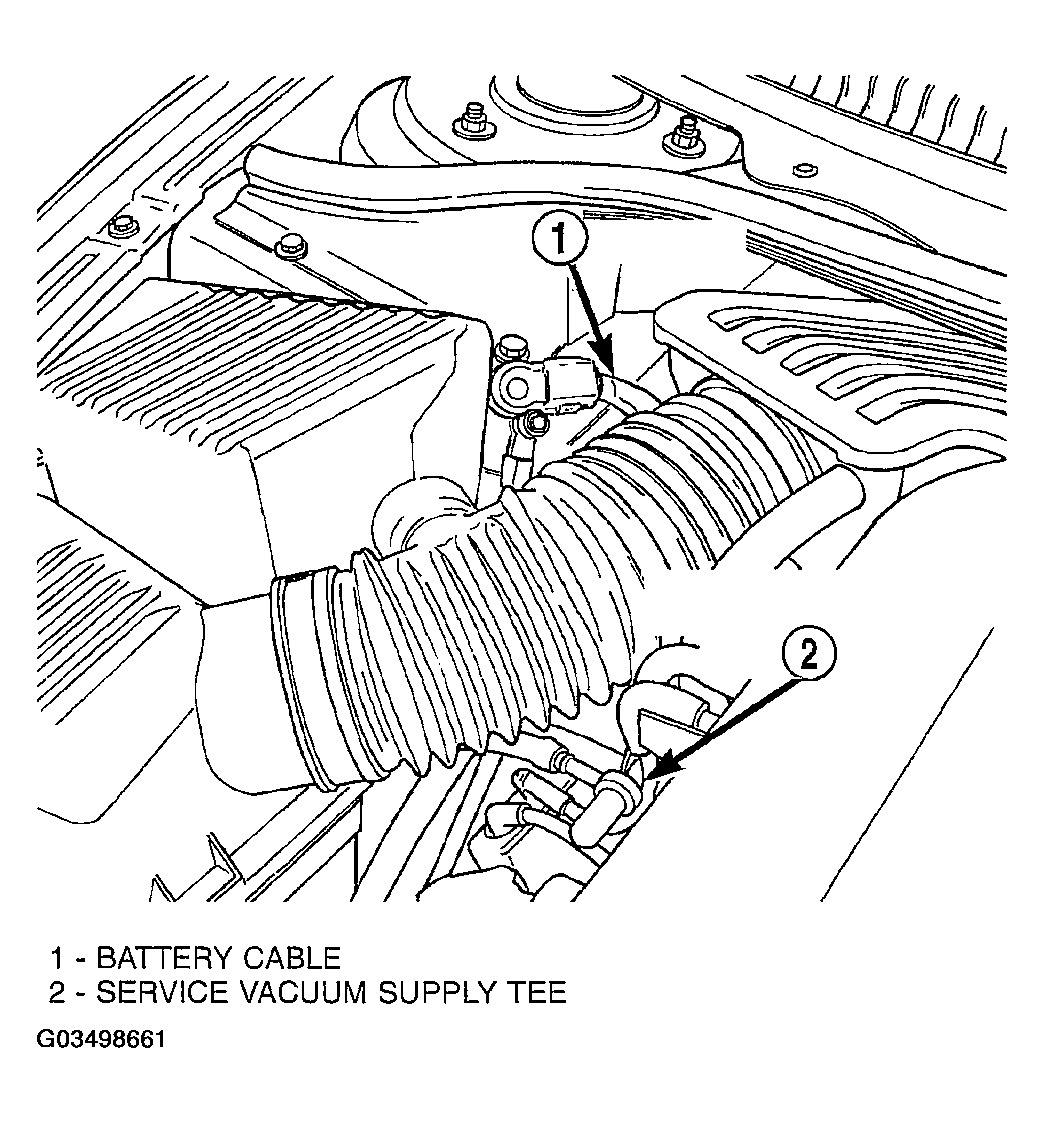

- Connect the battery cable (Figure).
- Fill fuel tank. Use the DRB scan tool to pressurize the fuel system. Check for leaks.
