Installation - 2.7L

  1. The sensor mounts onto intake manifold plenum (Fig 1). Tighten screws to 4.5 N.m (40 in.lbs.) torque.

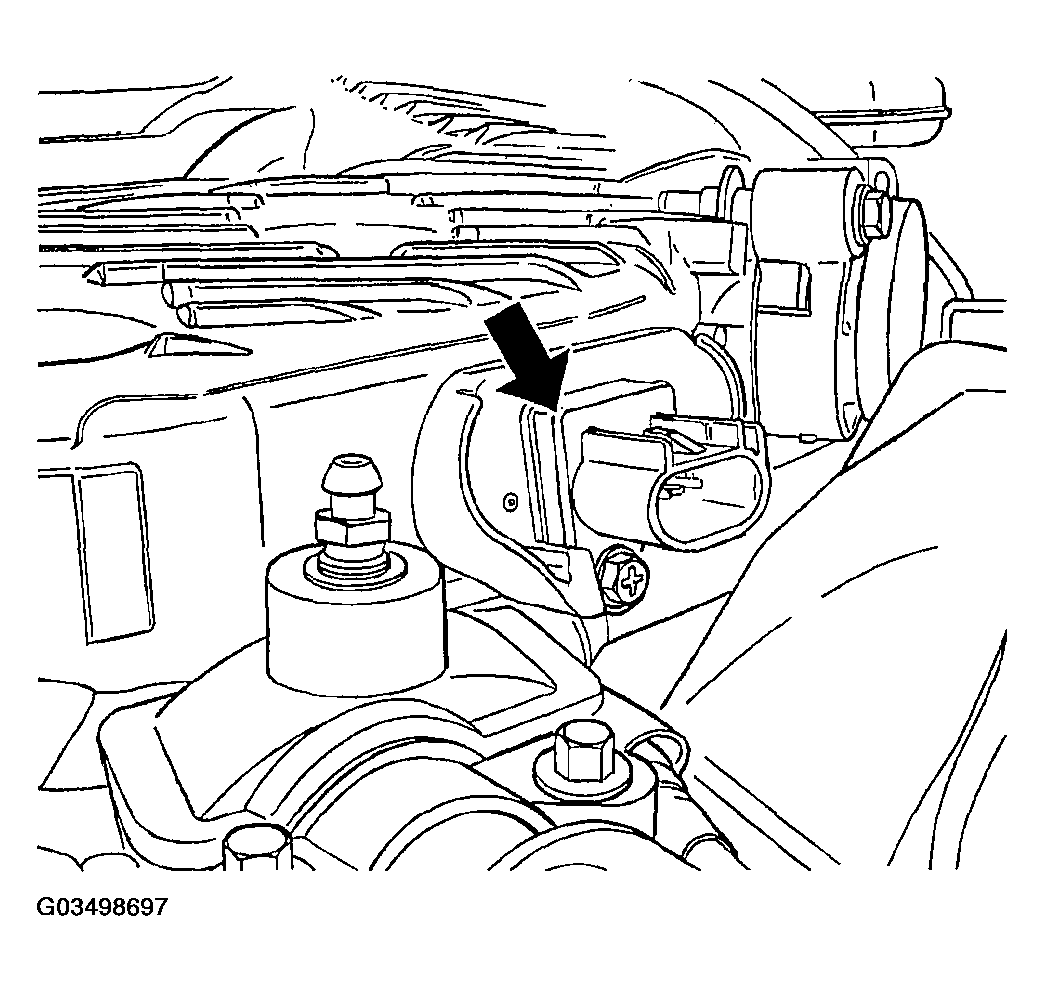

  2. Attach electrical connector to sensor (Figure).
  3. Install the negative battery cable.

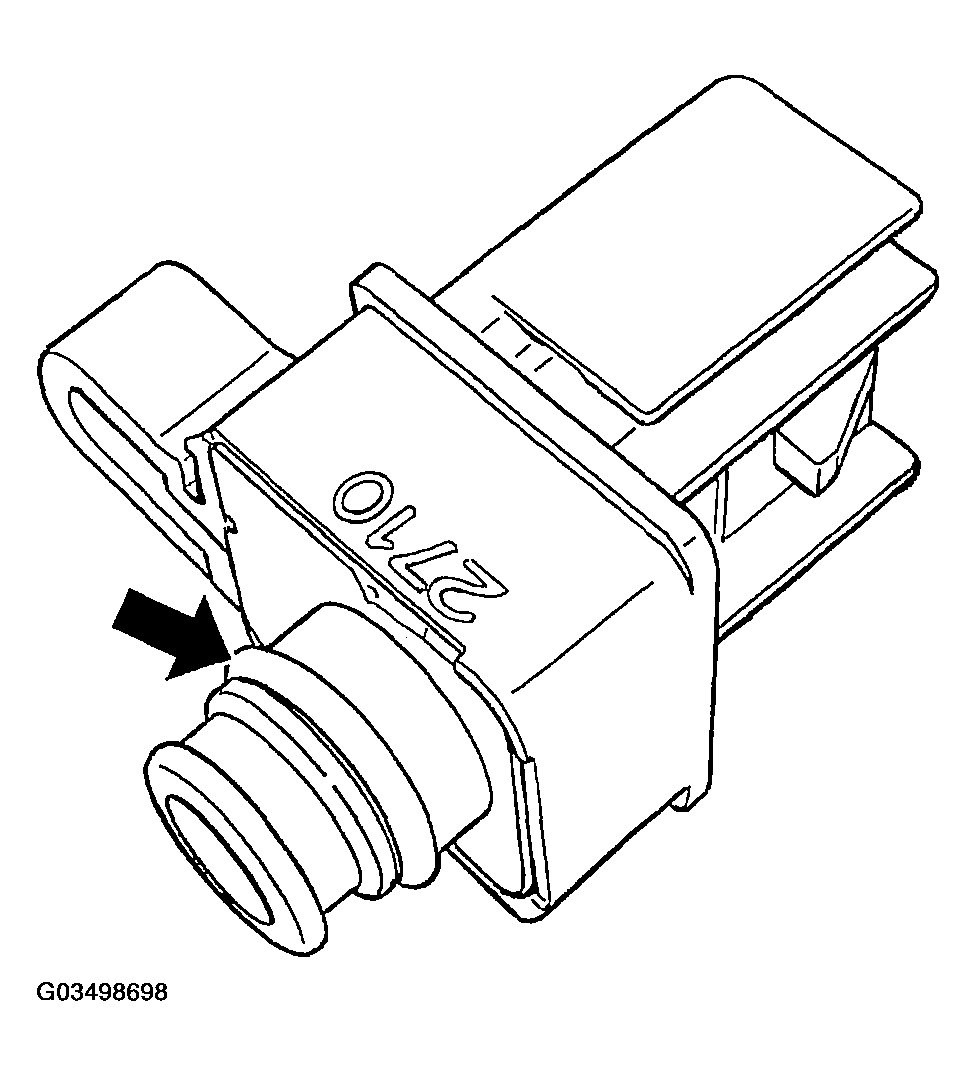

    Fig 1: Map Sensor O-Ring
    G03498698Courtesy of DAIMLERCHRYSLER CORP.
