Throttle Control Cable: Installation

From the engine compartment, push the housing end fitting into the dash panel grommet.
Install the cable housing (throttle body end) into the cable mounting bracket on the engine.

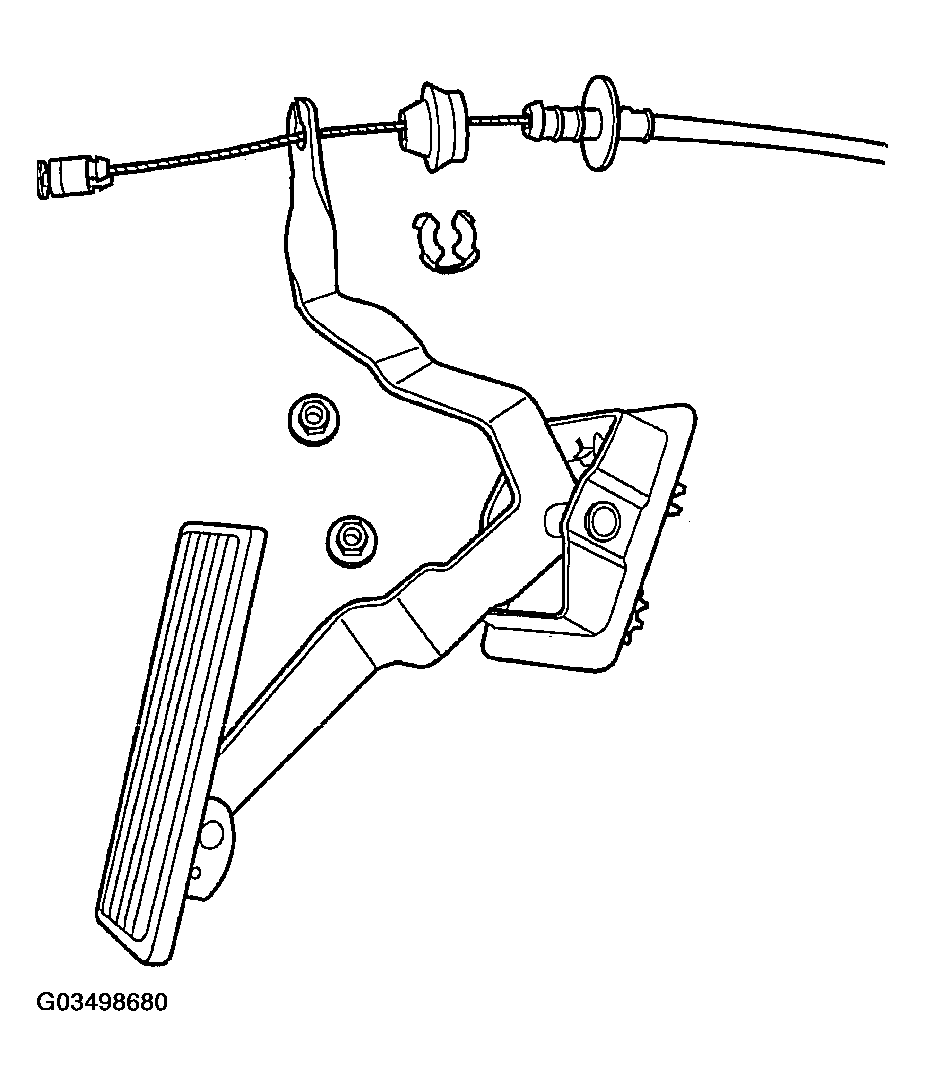

From inside the vehicle, hold up the pedal and install throttle cable and cable retainer in the upper end of the pedal shaft (Figure).

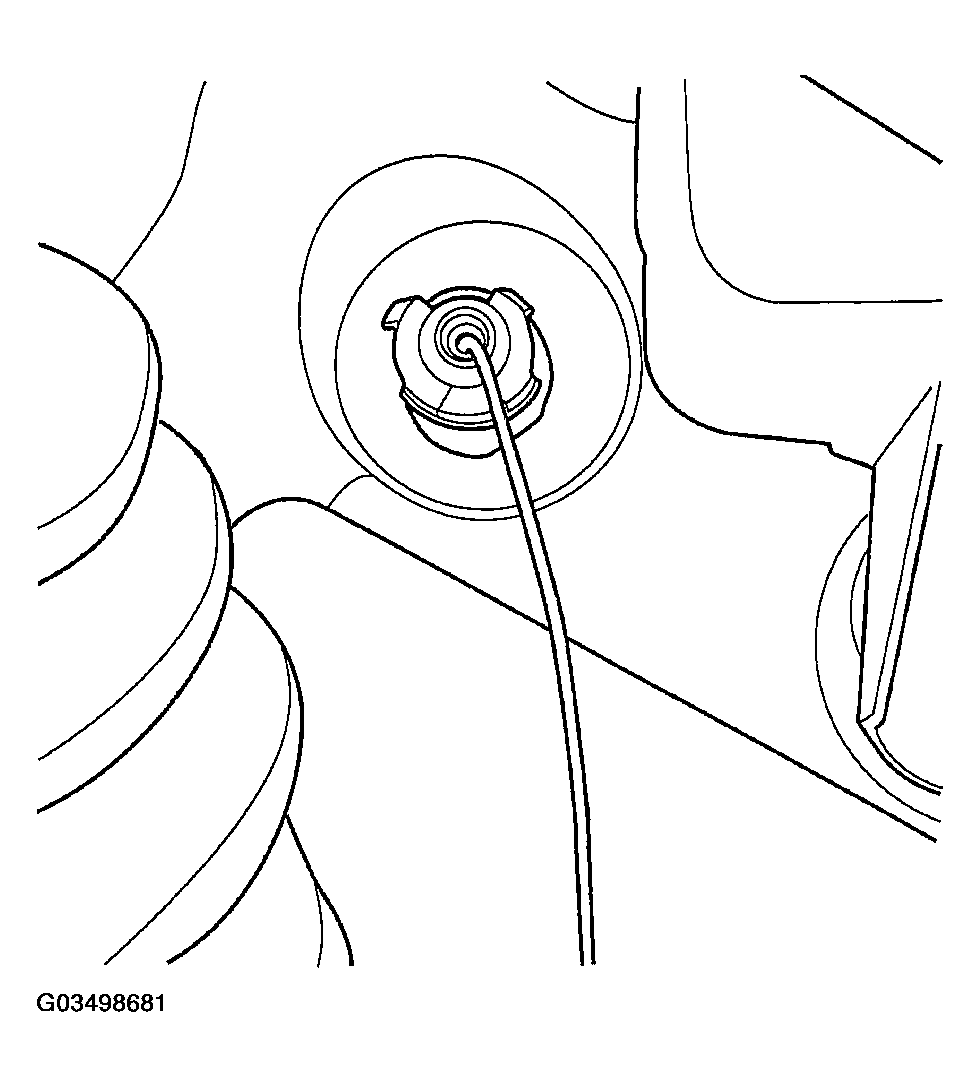

At the dash panel, install the cable retainer clip between the end of the throttle cable fitting and grommet (Figure).
From the engine compartment, rotate the throttle lever to wide open and install the throttle cable.
