Pcm & Pcm Connector Locations

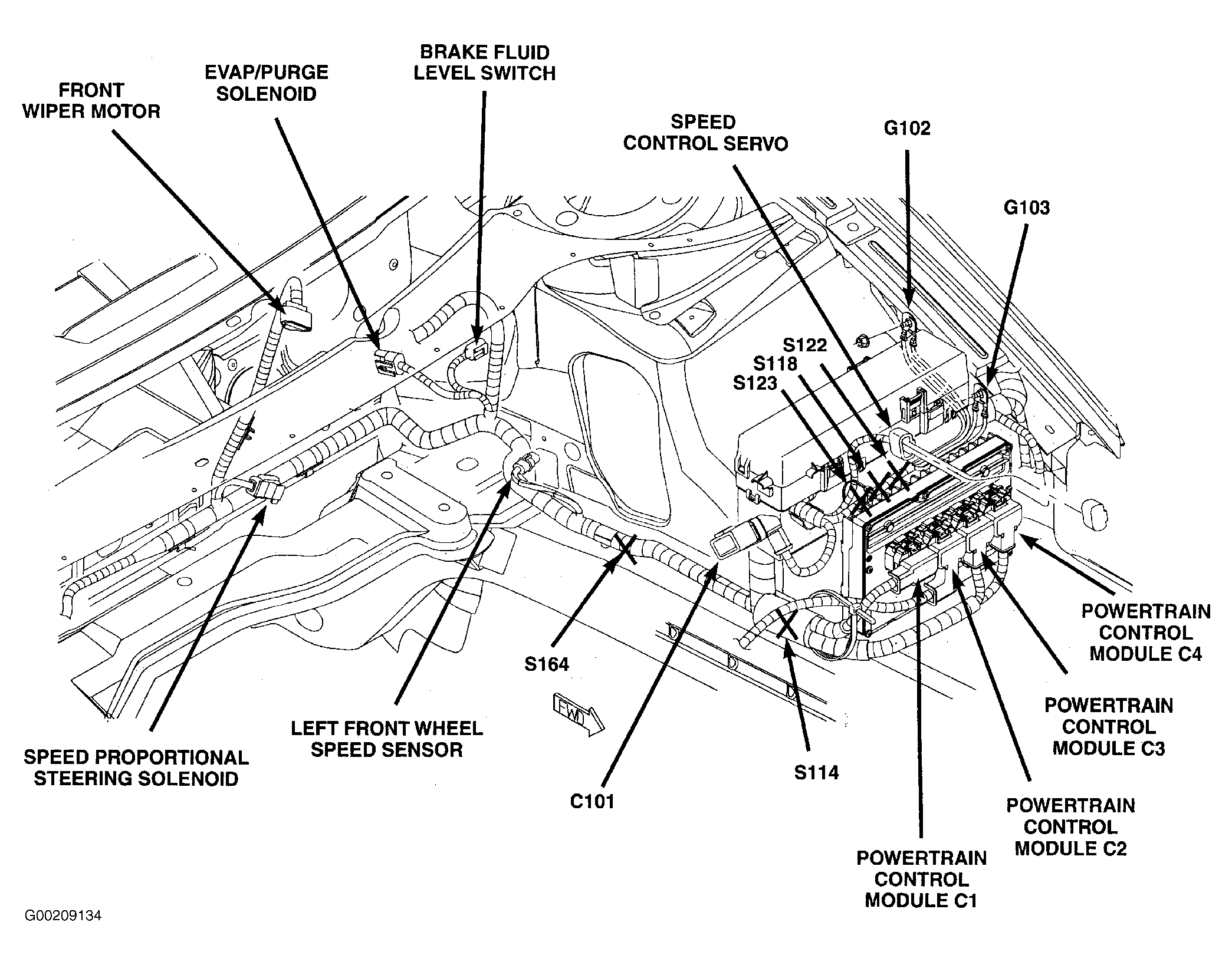

Fig 1: Locating PCM & Identifying PCM Connectors
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
