Junction Block Components & Circuits

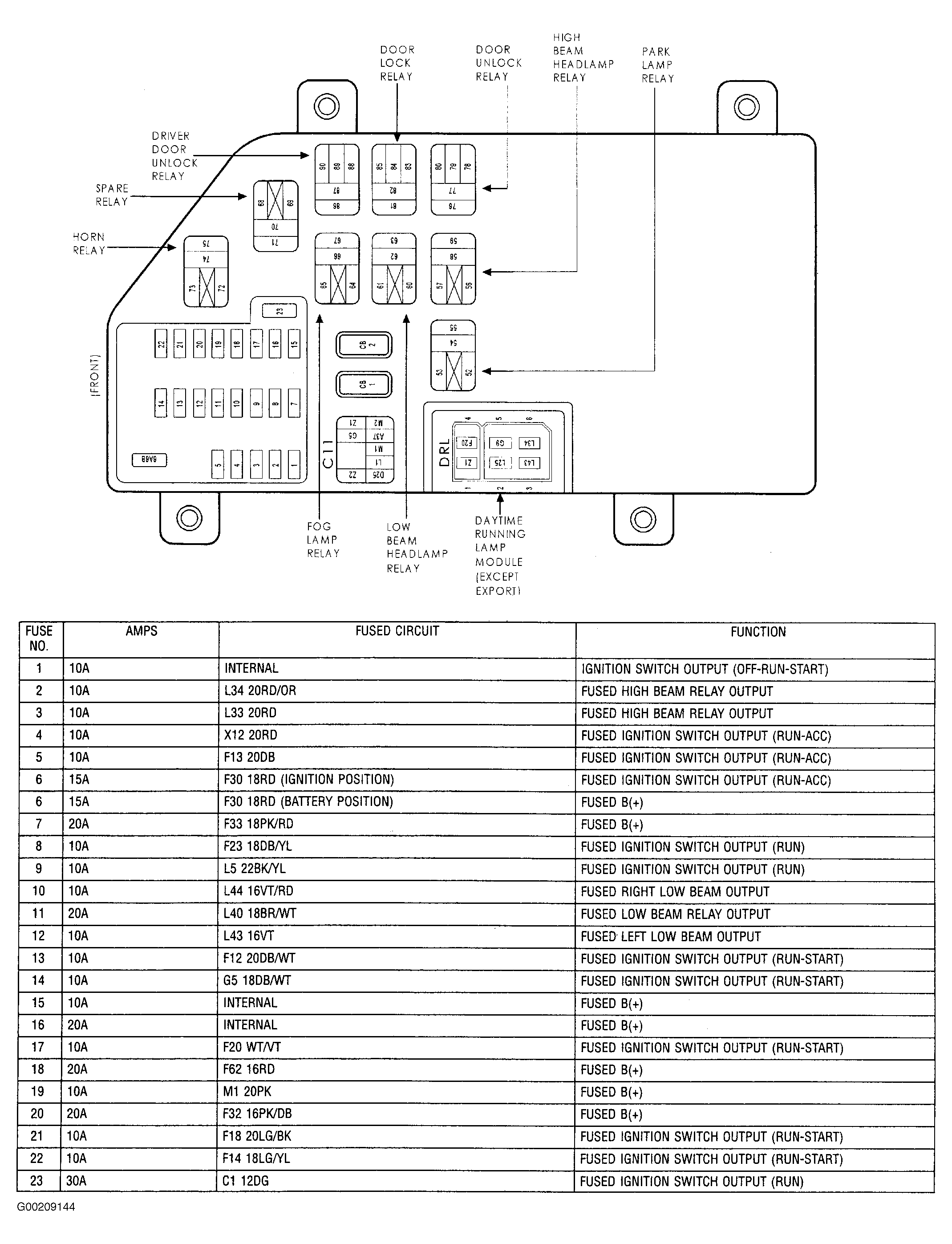

Fig 1: Identifying Junction Block Components & Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
