Map Sensor Harness Connector End View

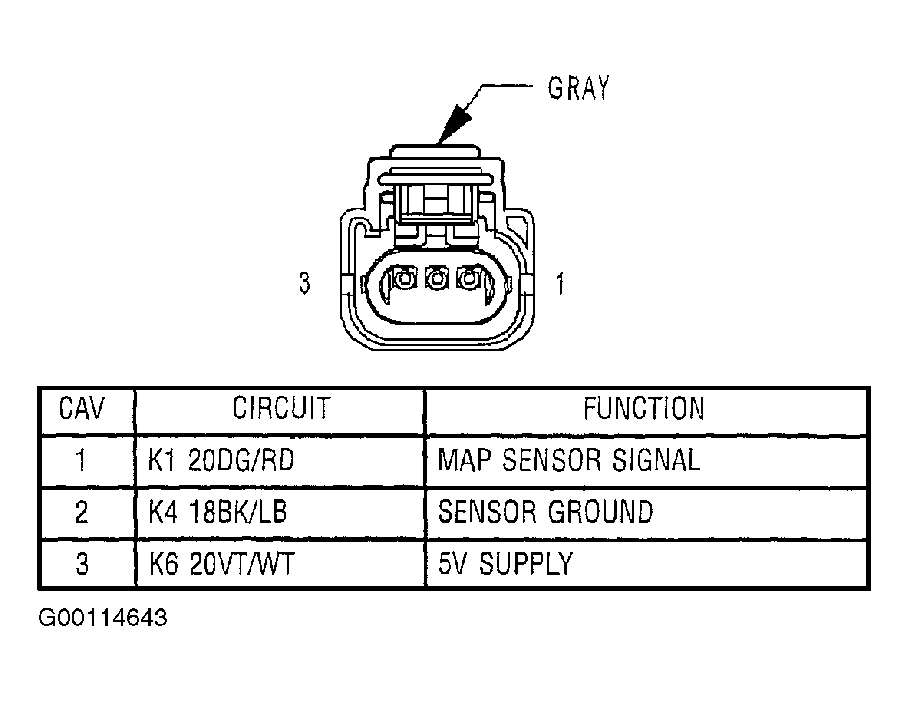

Fig 1: Identifying MAP Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
