Sentry Key Immobilizer Module Harness Connector End View

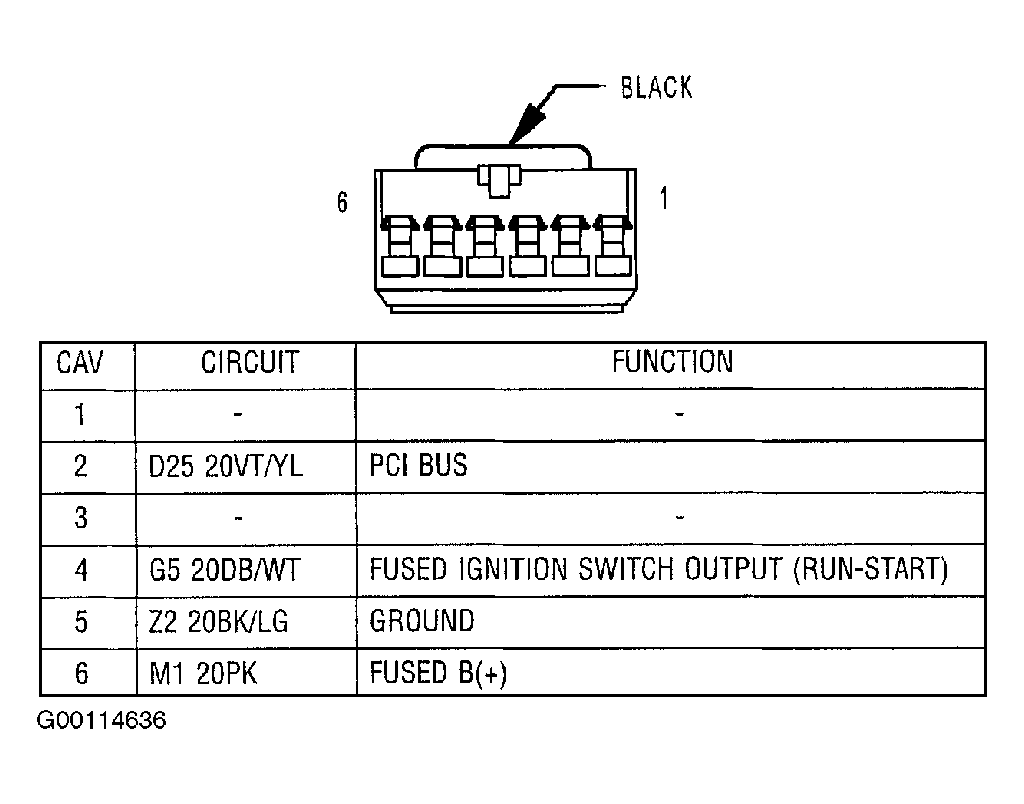

Fig 1: Identifying Sentry Key Immobilizer Module Harness Connector
G00114636Courtesy of DAIMLERCHRYSLER CORPORATION
