Fuel System And EVAP System

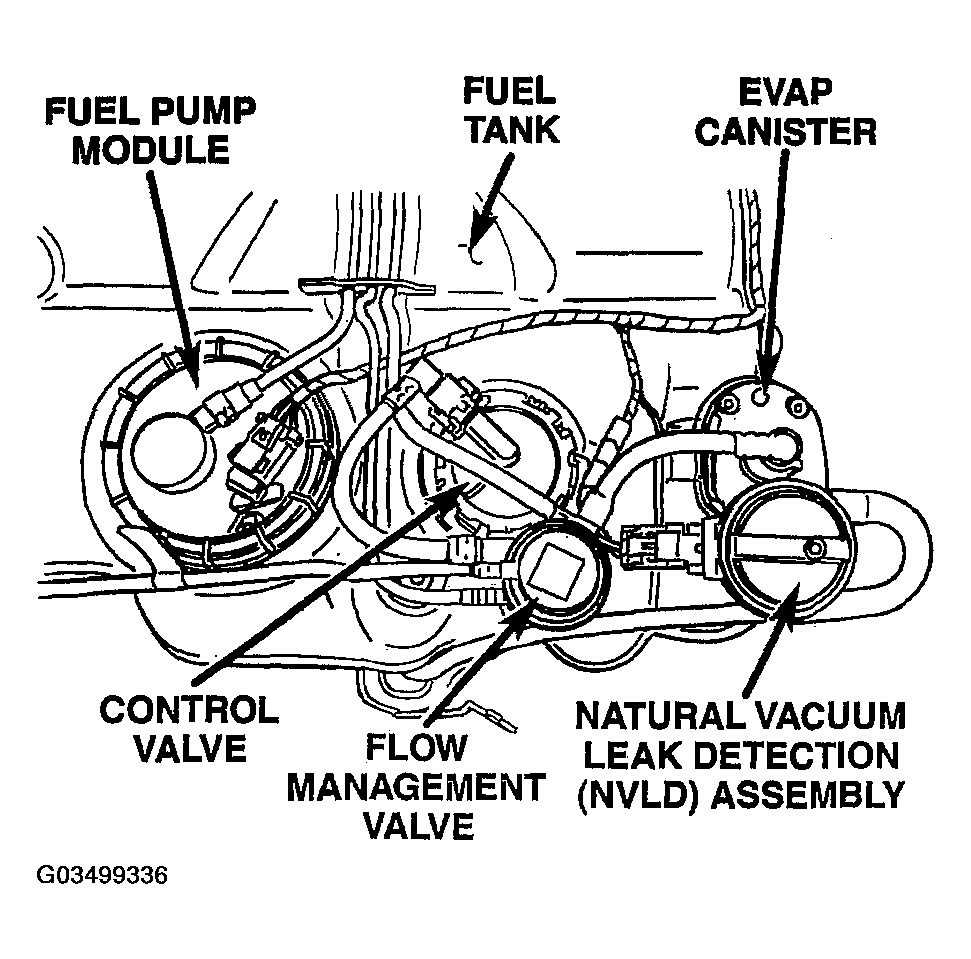

Fig 1: Locating Fuel System And EVAP System Components (1 Of 2)
G03499336Courtesy of DAIMLERCHRYSLER CORP.

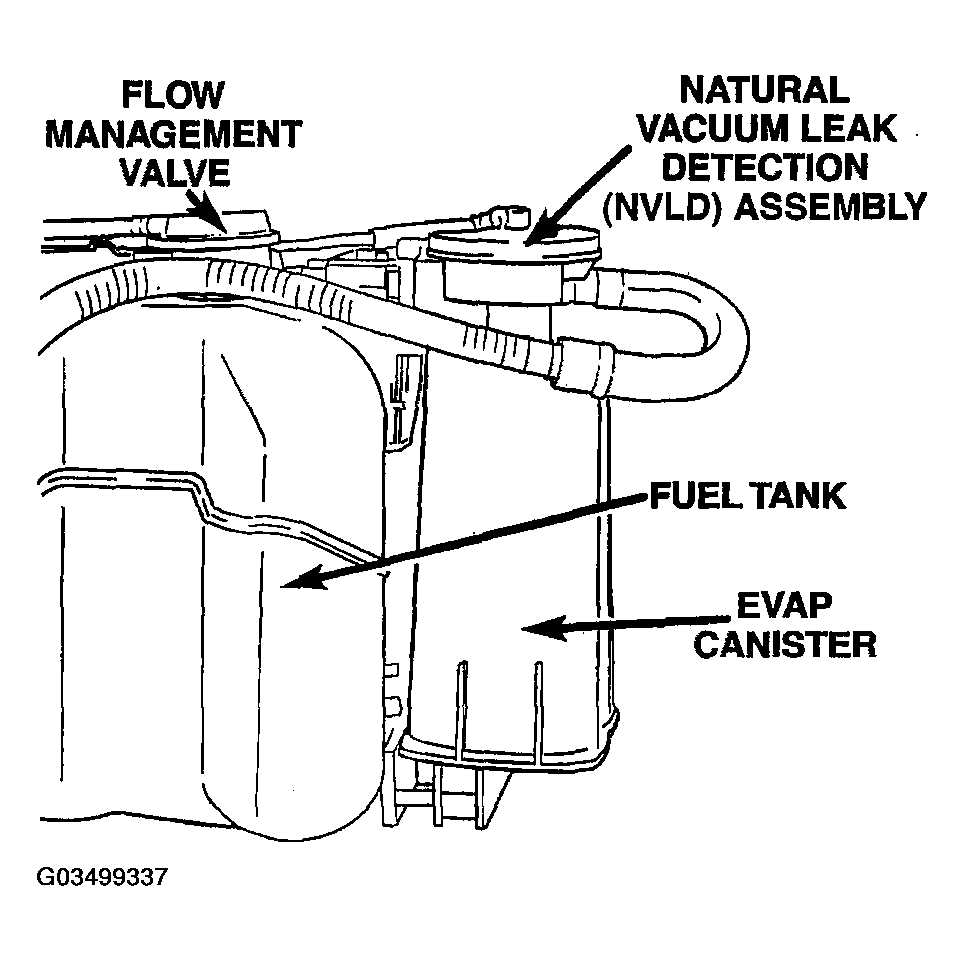

Fig 2: Locating Fuel System And EVAP System Components (2 Of 2)
G03499337Courtesy of DAIMLERCHRYSLER CORP.
