Left Speed Control Switch

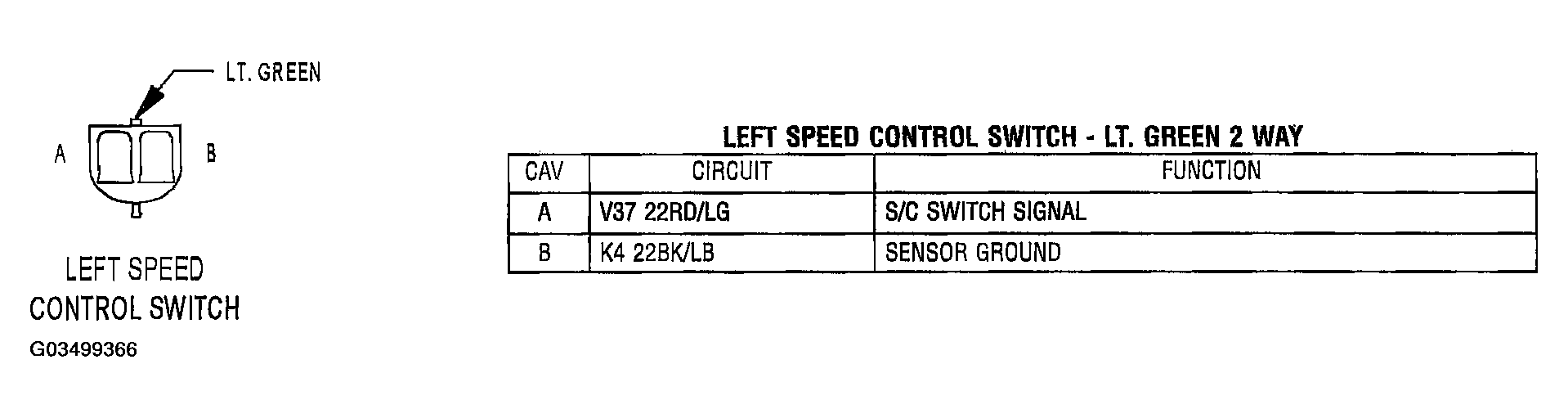

Fig 1: Identifying Left Speed Control Switch Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
