Natural Vacuum Leak Detection Assembly

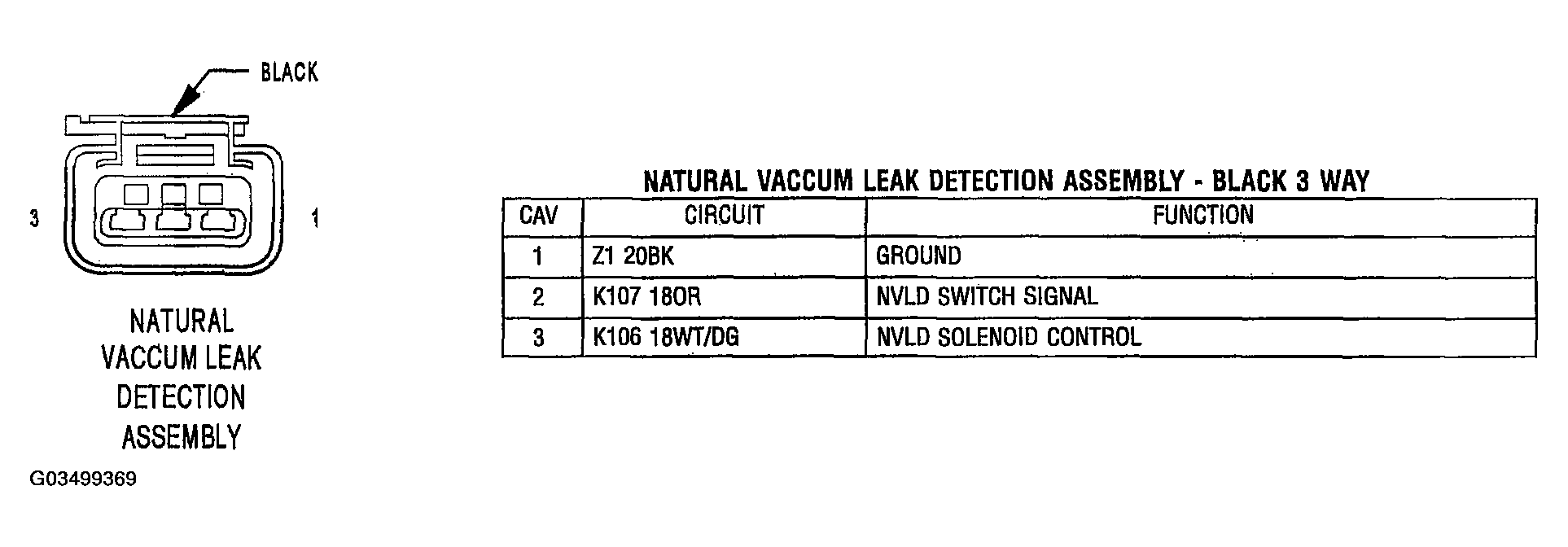

Fig 1: Identifying Natural Vacuum Leak Detection Assembly Connector
G03499369Courtesy of DAIMLERCHRYSLER CORP.
