Powertrain Control Module C1

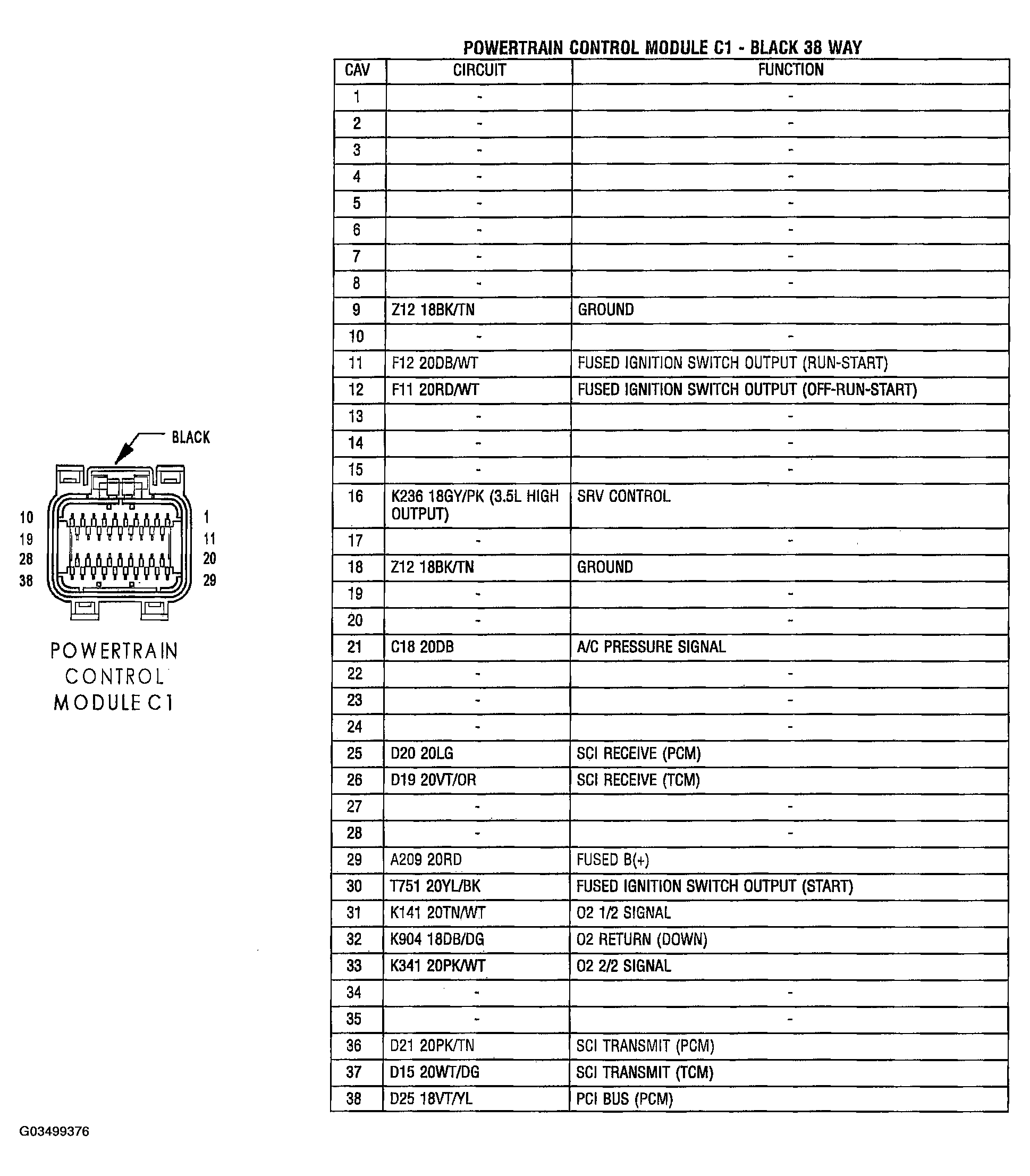

Fig 1: Identifying Powertrain Control Module C1 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
