Powertrain Control Module Connector End View

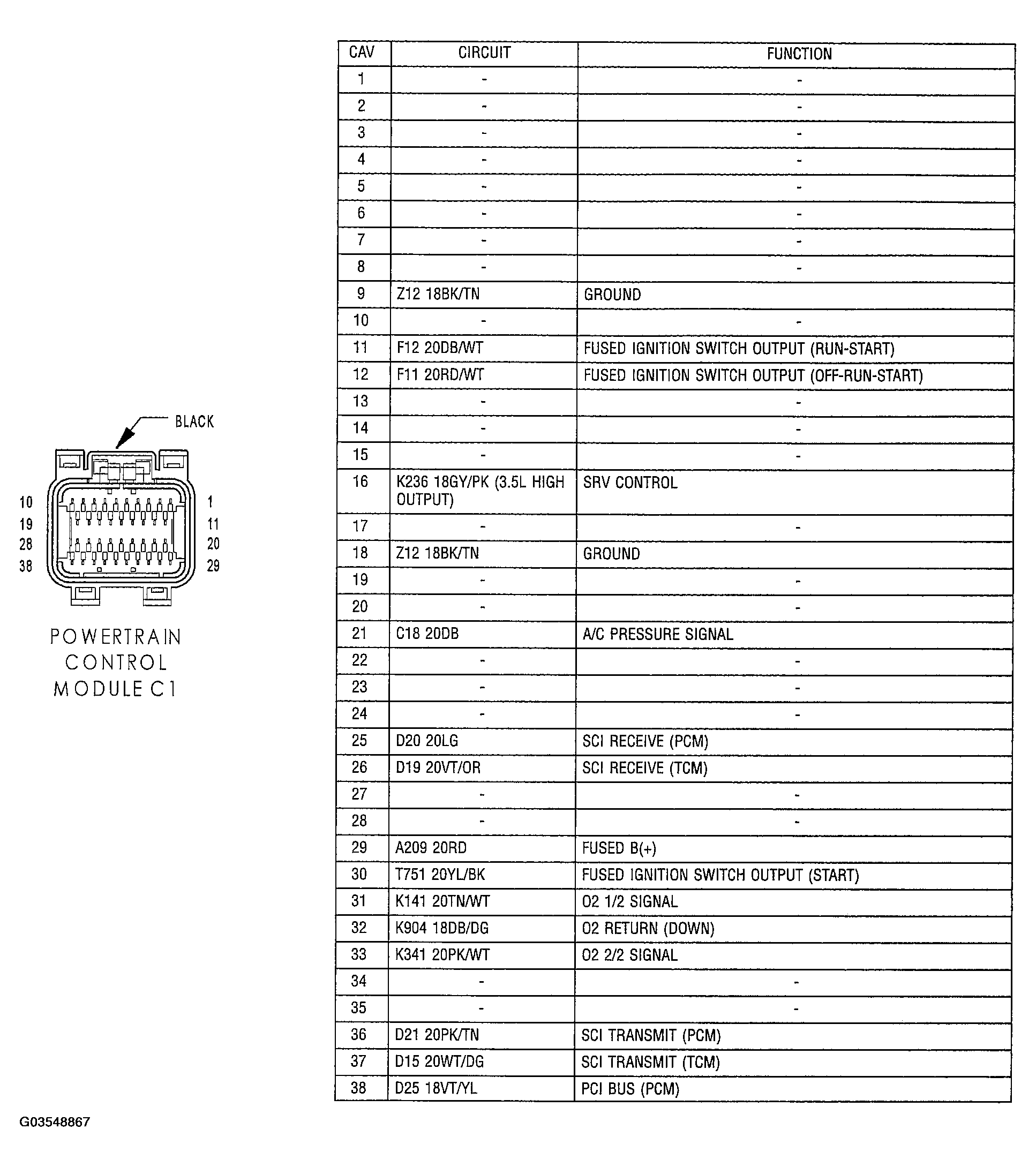

Fig 1: Identifying Powertrain Control Module C1 Connector Terminals And Specification (Black 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

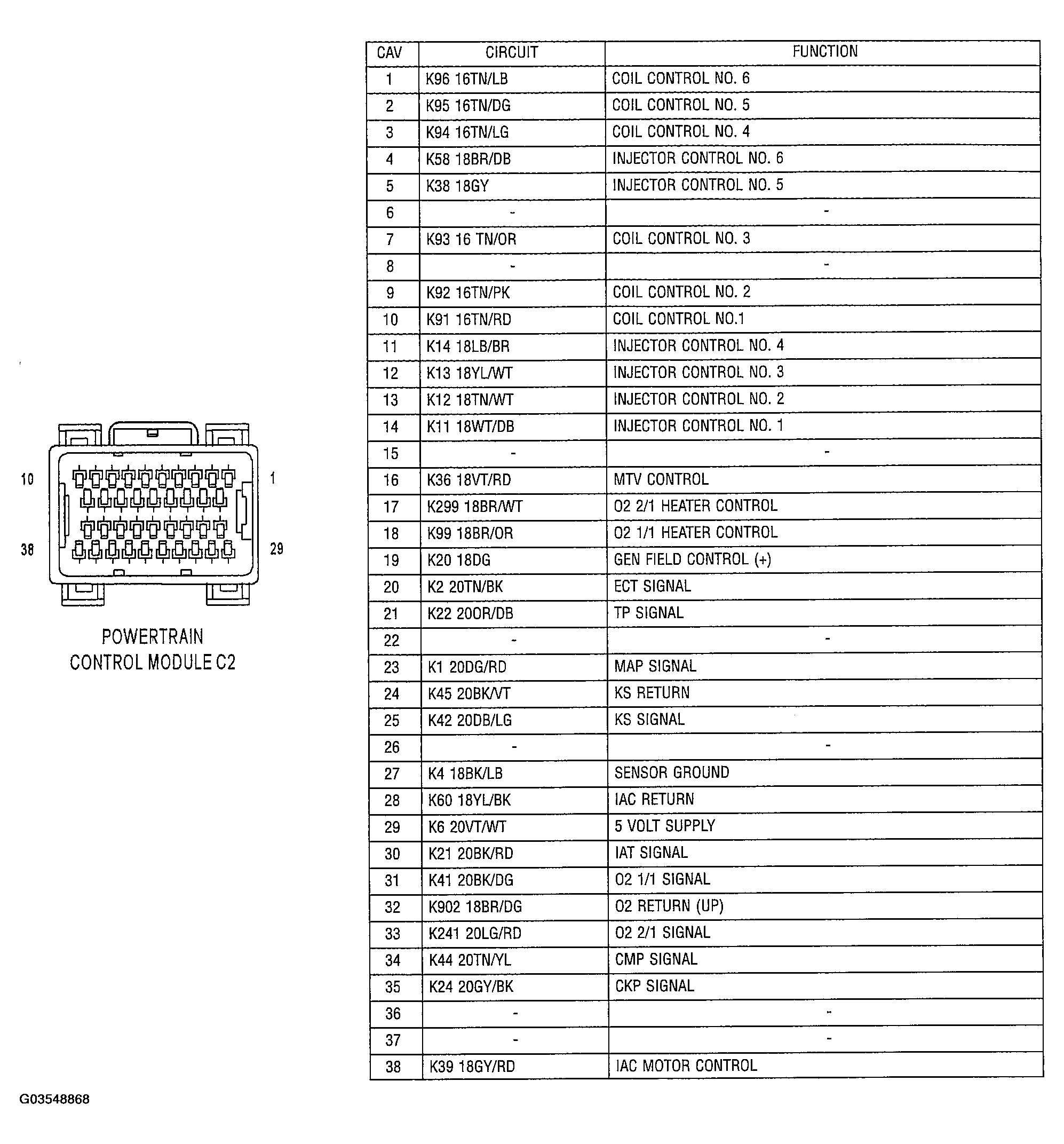

Fig 2: Identifying Powertrain Control Module C2 Connector Terminals And Specification (38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

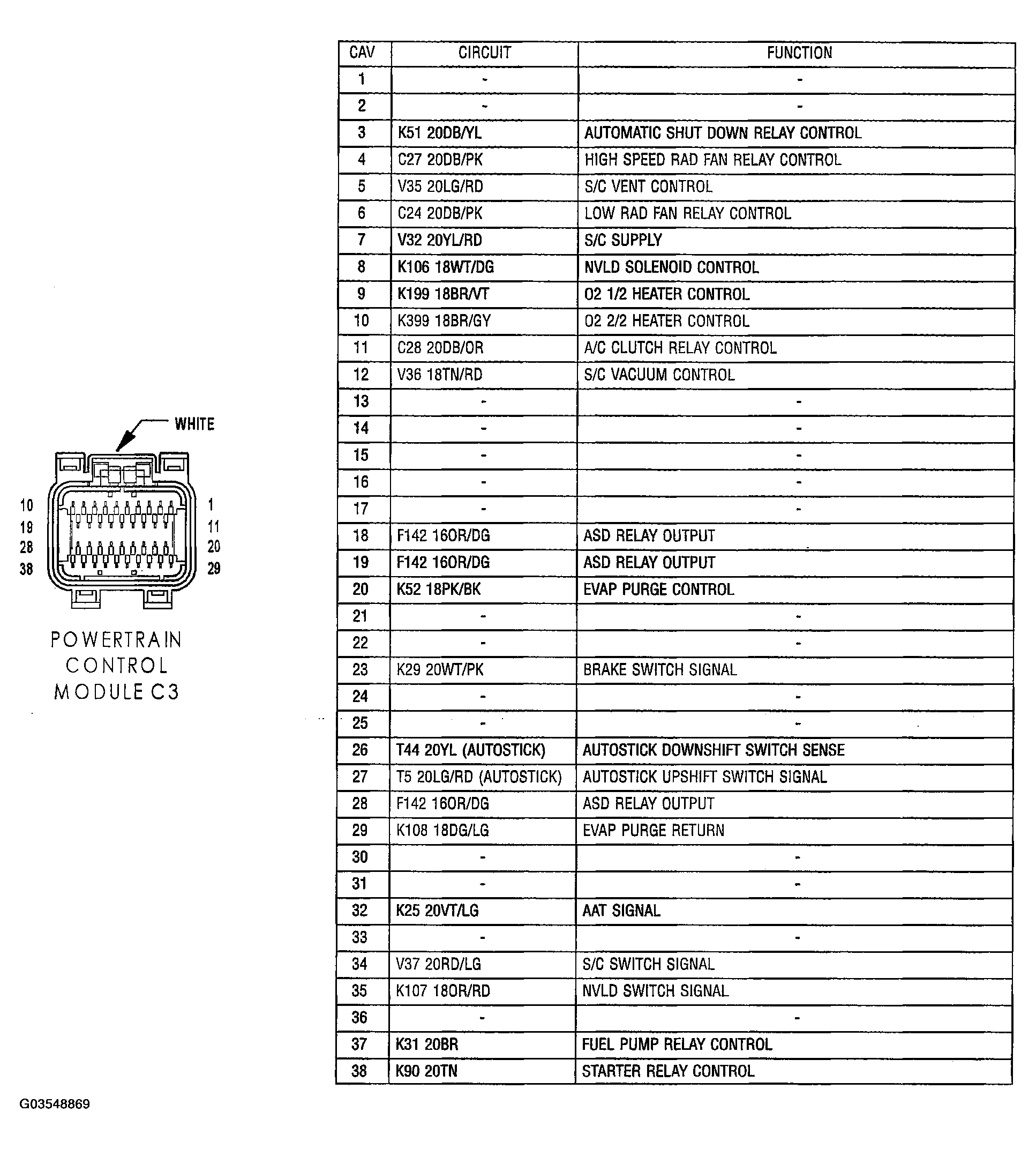

Fig 3: Identifying Powertrain Control Module C3 Connector Terminals And Specification (White 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.

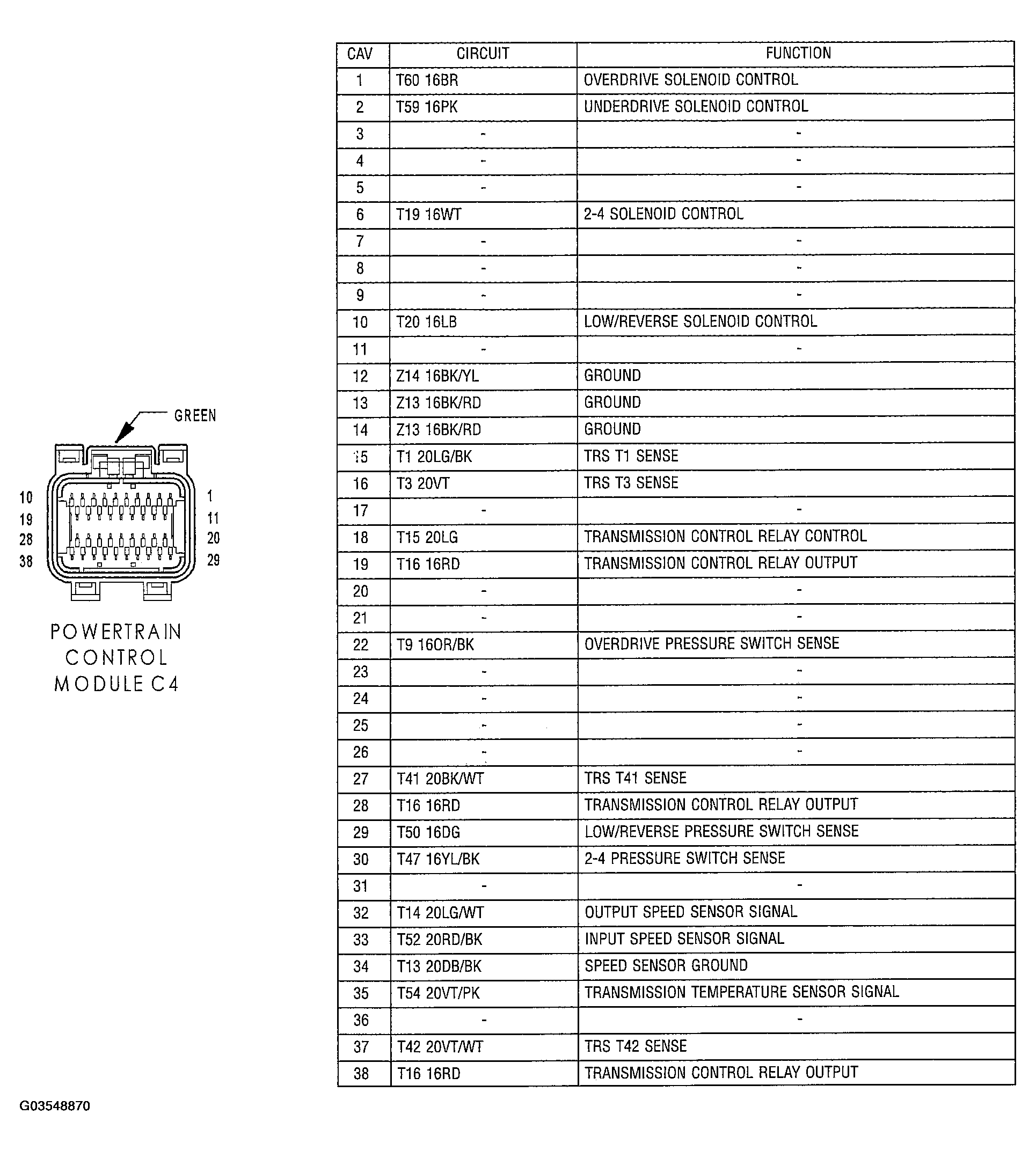

Fig 4: Identifying Powertrain Control Module C4 Connector Terminals And Specification (Green 38 Way)

Courtesy of DAIMLERCHRYSLER CORP.
