Window Motor: Removal
- Move the window to the full-up position, if possible.
- Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
- Remove door trim panel. (Refer to TRIM PANEL ) or (Refer to TRIM PANEL ).
- Remove window regulator. (Refer to WINDOW REGULATOR
) or (Refer to DOOR
).WARNING: FAILURE TO CLAMP THE SECTOR GEAR TO THE MOUNTING PLATE WHEN REMOVING THE MOTOR CAN RESULT IN INJURY.
- Disconnect wiring connector from motor.
- Secure the sector gear and mounting plate with a C clamp or similar clamping tool. This will prevent a sudden and forceful movement of the regulator when the motor is removed.

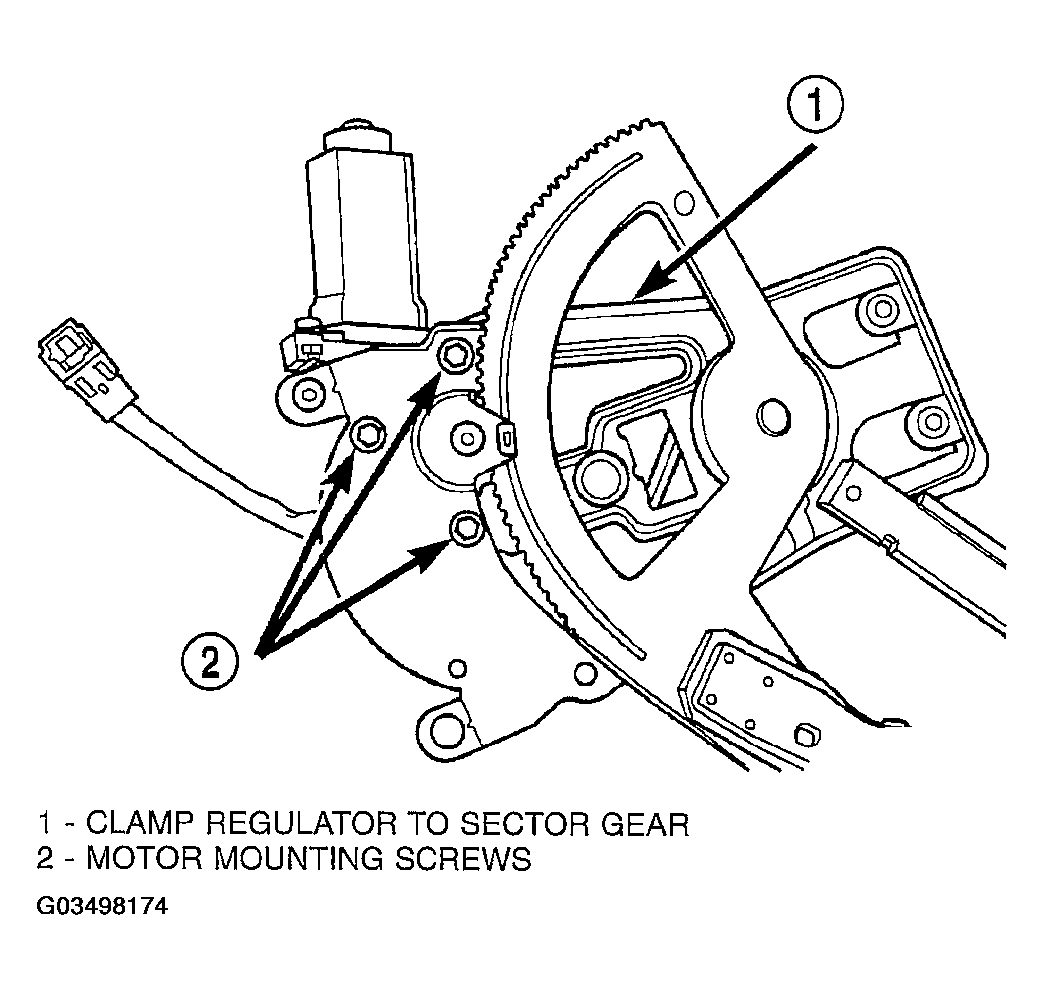

- Remove three mounting screws that hold motor gearbox to regulator (Fig 1).
- Remove motor from regulator.
