Driver Power Seat Horizontal Motor Connector End View

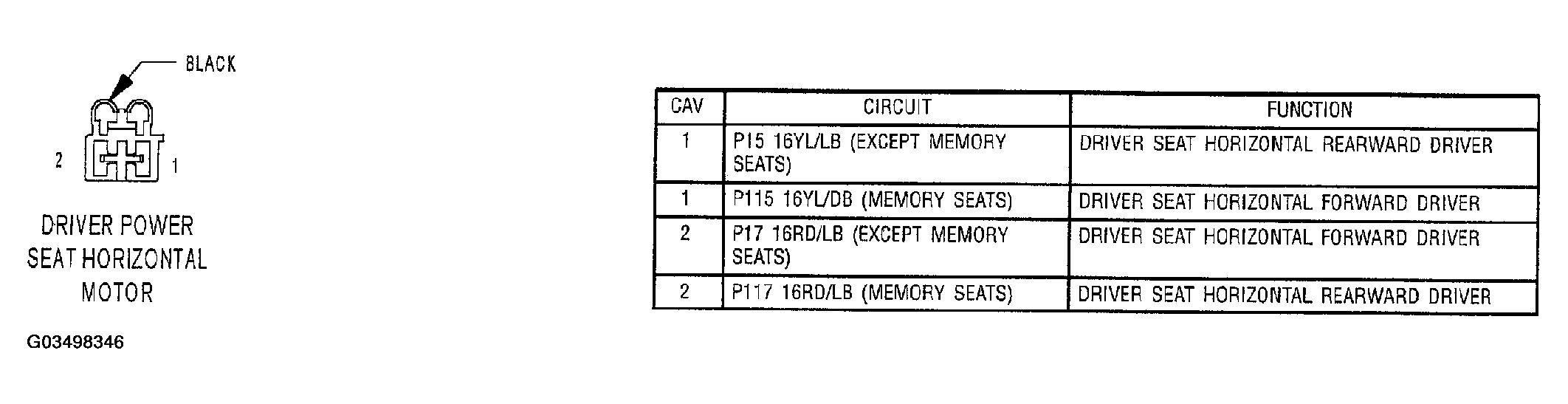

Fig 1: Driver Power Seat Horizontal Motor Connector End View
G03498346Courtesy of DAIMLERCHRYSLER CORP.
