Powertrain Control Module C4 Connector End View

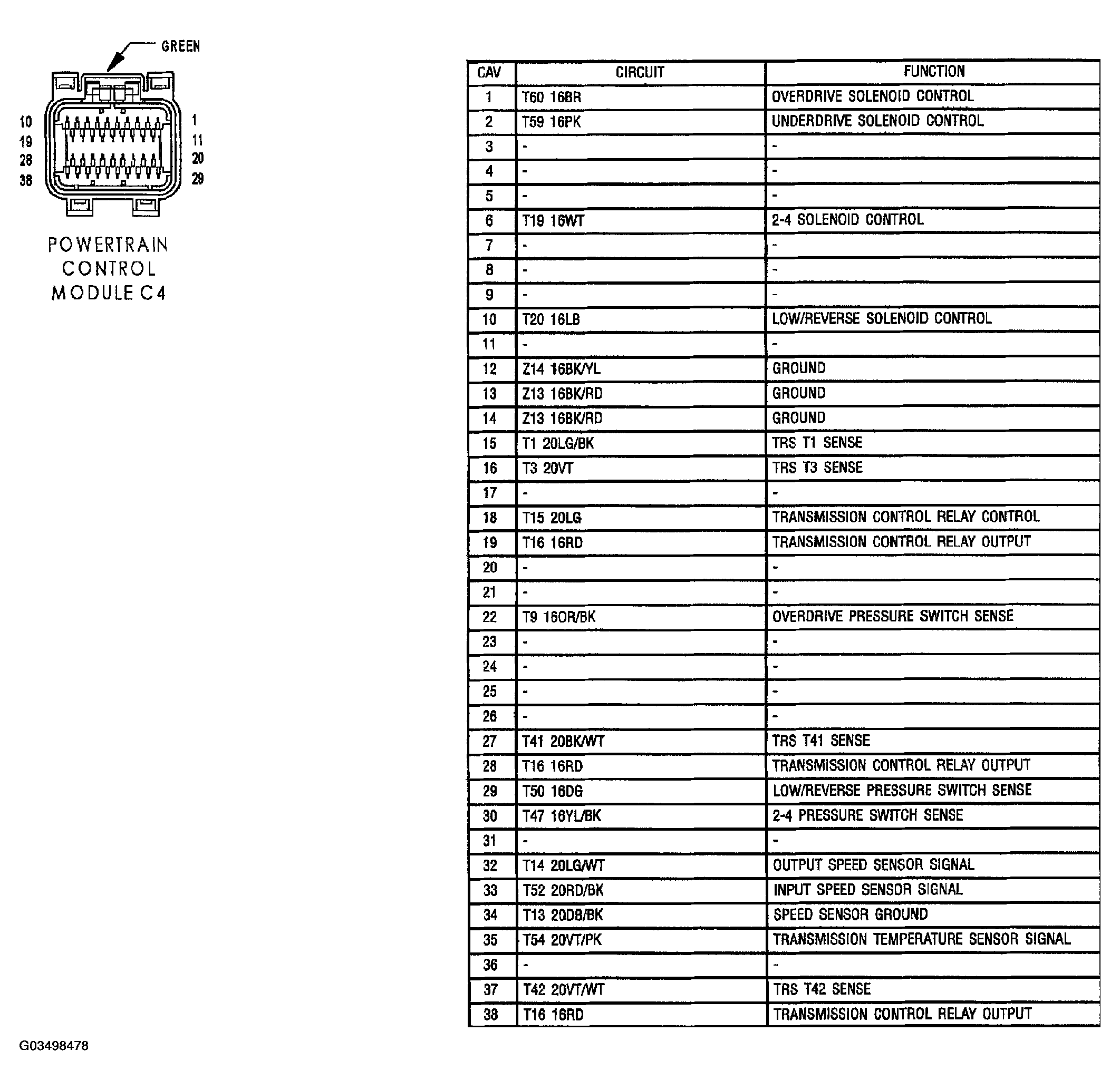

Fig 1: Powertrain Control Module Connector End View (C4)
G03498478Courtesy of DAIMLERCHRYSLER CORP.
