Rear Window Defogger/Antenna Module Connector End View

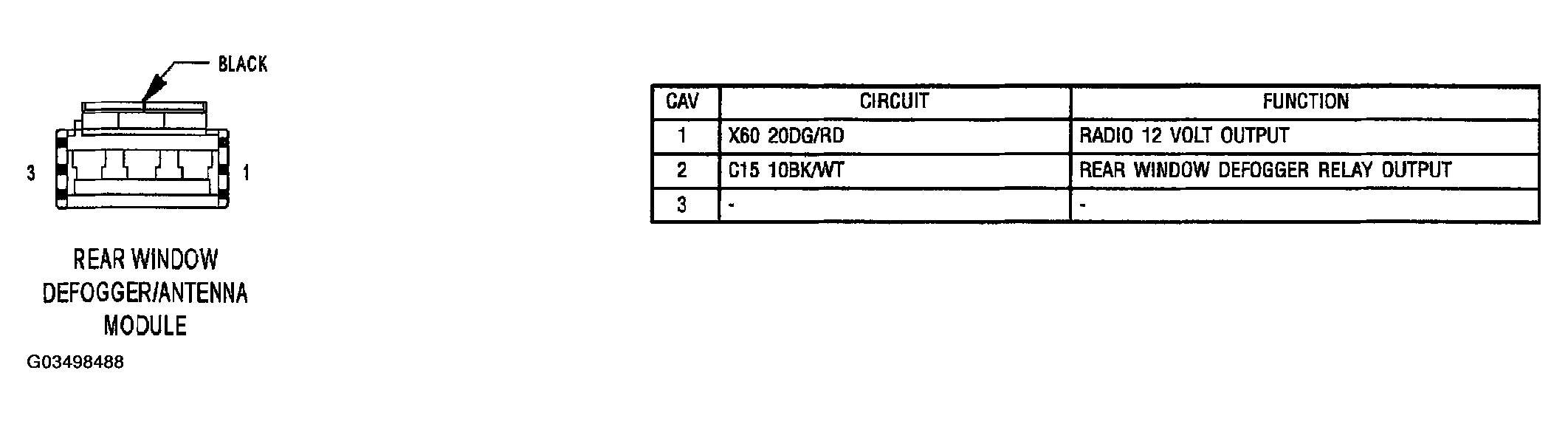

Fig 1: Rear Window Defogger/Antenna Module Connector End View
G03498488Courtesy of DAIMLERCHRYSLER CORP.
