Satellite Receiver Module C1 Connector End View

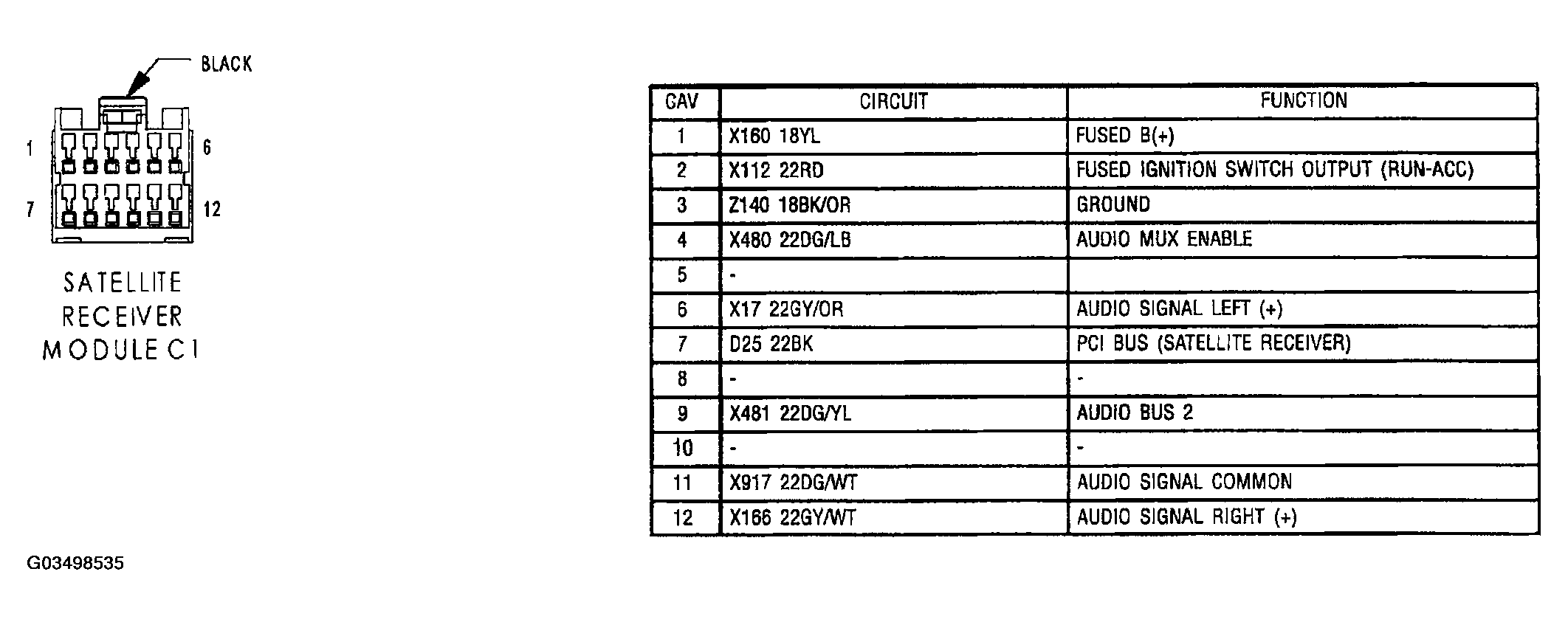

Fig 1: Satellite Receiver Module Connector End View (C1)
G03498535Courtesy of DAIMLERCHRYSLER CORP.
