Fuel Level Sending Unit / Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE .

1. Depress the retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector (Fig 1).

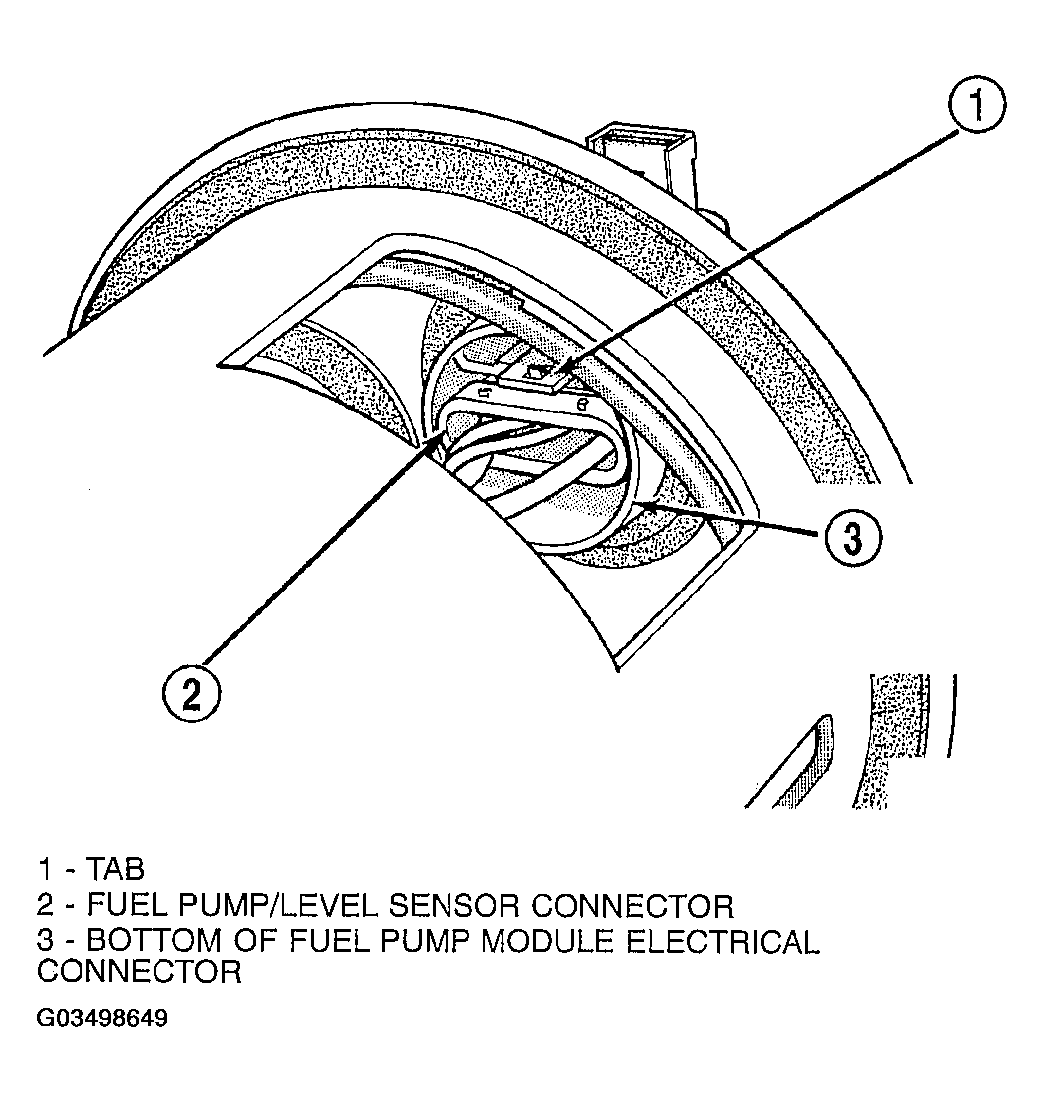

   Fig 1: Fuel Pump/Level Sensor Connector

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove wire terminal retaining clip from connector (Fig 2). Note the location of terminals for the level sensor wires (Fig 3).

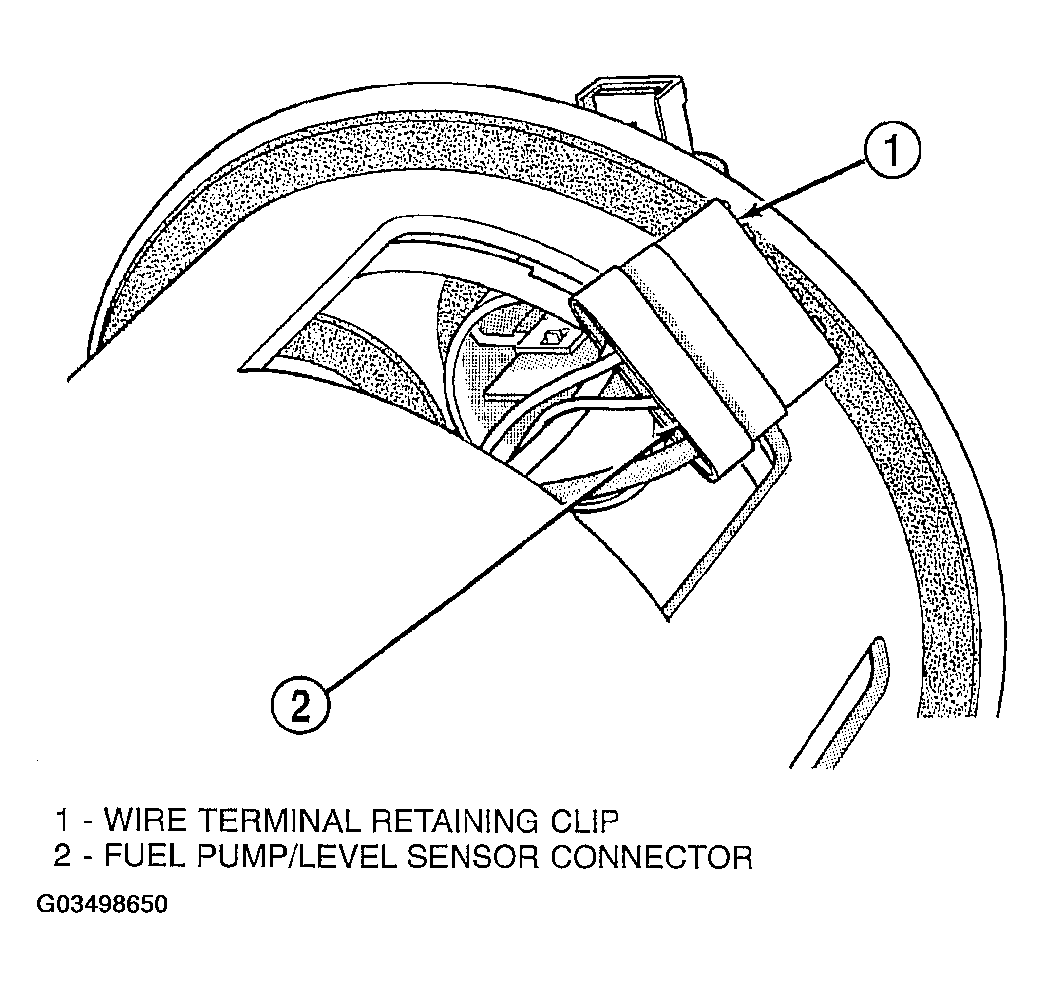

   Fig 2: Wire Terminal Retaining Clip

   Courtesy of DAIMLERCHRYSLER CORP.
   Fig 3: Wire Terminal Identification

   Courtesy of DAIMLERCHRYSLER CORP.
3. Using special tool 7812 or an equivalent, push level sensor signal and ground terminals out of the connector (Fig 4).

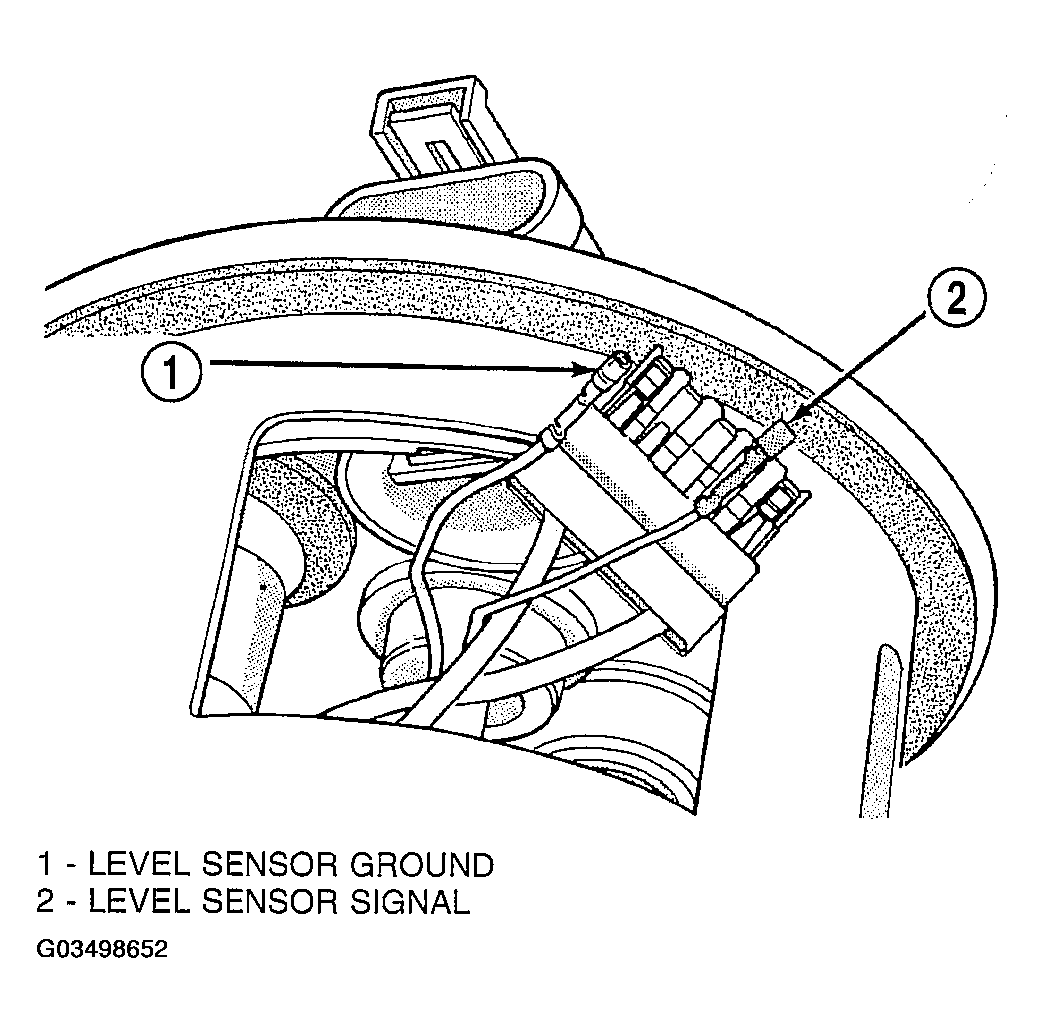

   Fig 4: Level Sensor Signal

   Courtesy of DAIMLERCHRYSLER CORP.
4. Insert a screwdriver between the fuel pump module and the top of the level sensor housing (Fig 5). Push level sensor down slightly.

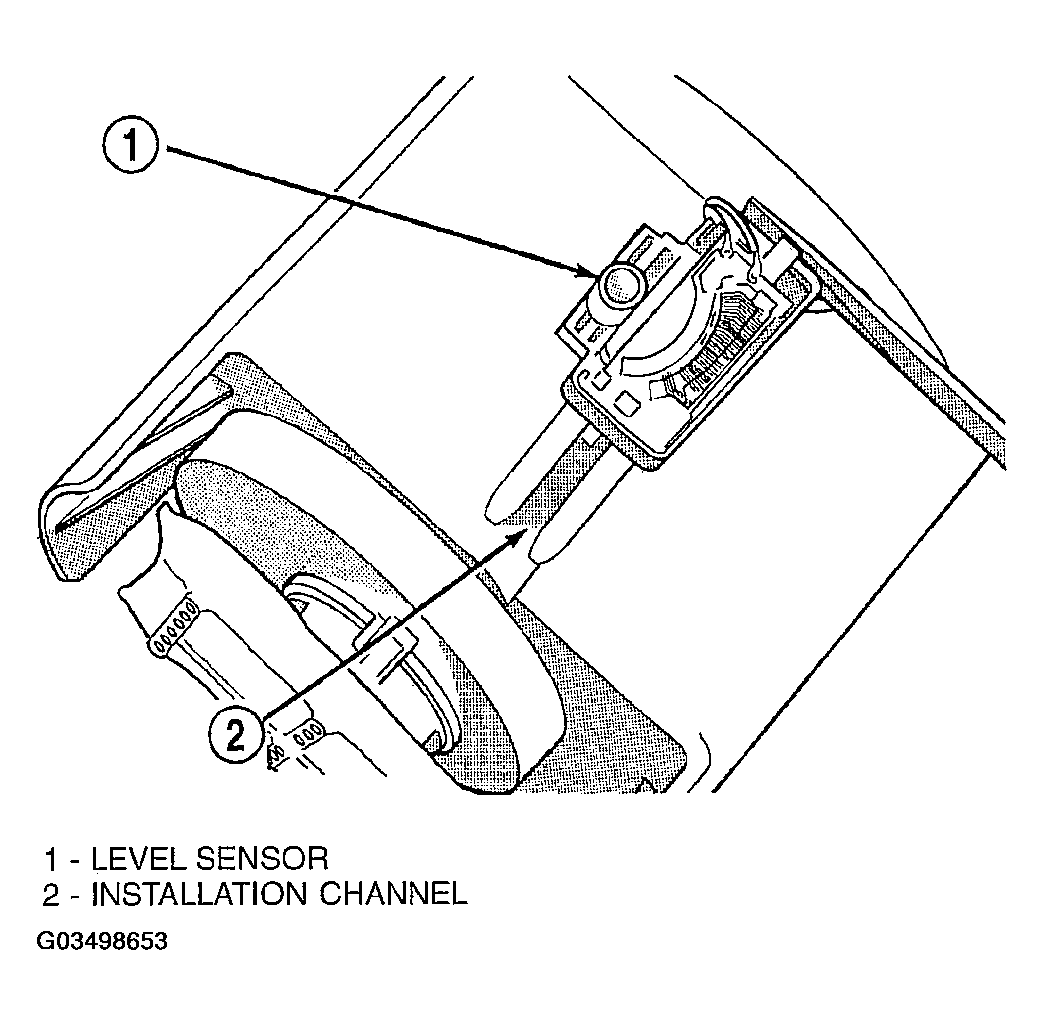

   Fig 5: Fuel Level Sensor Removal

   Courtesy of DAIMLERCHRYSLER CORP.
5. Slide level sensor wires through standpipe inside fuel pump module (Fig 6).

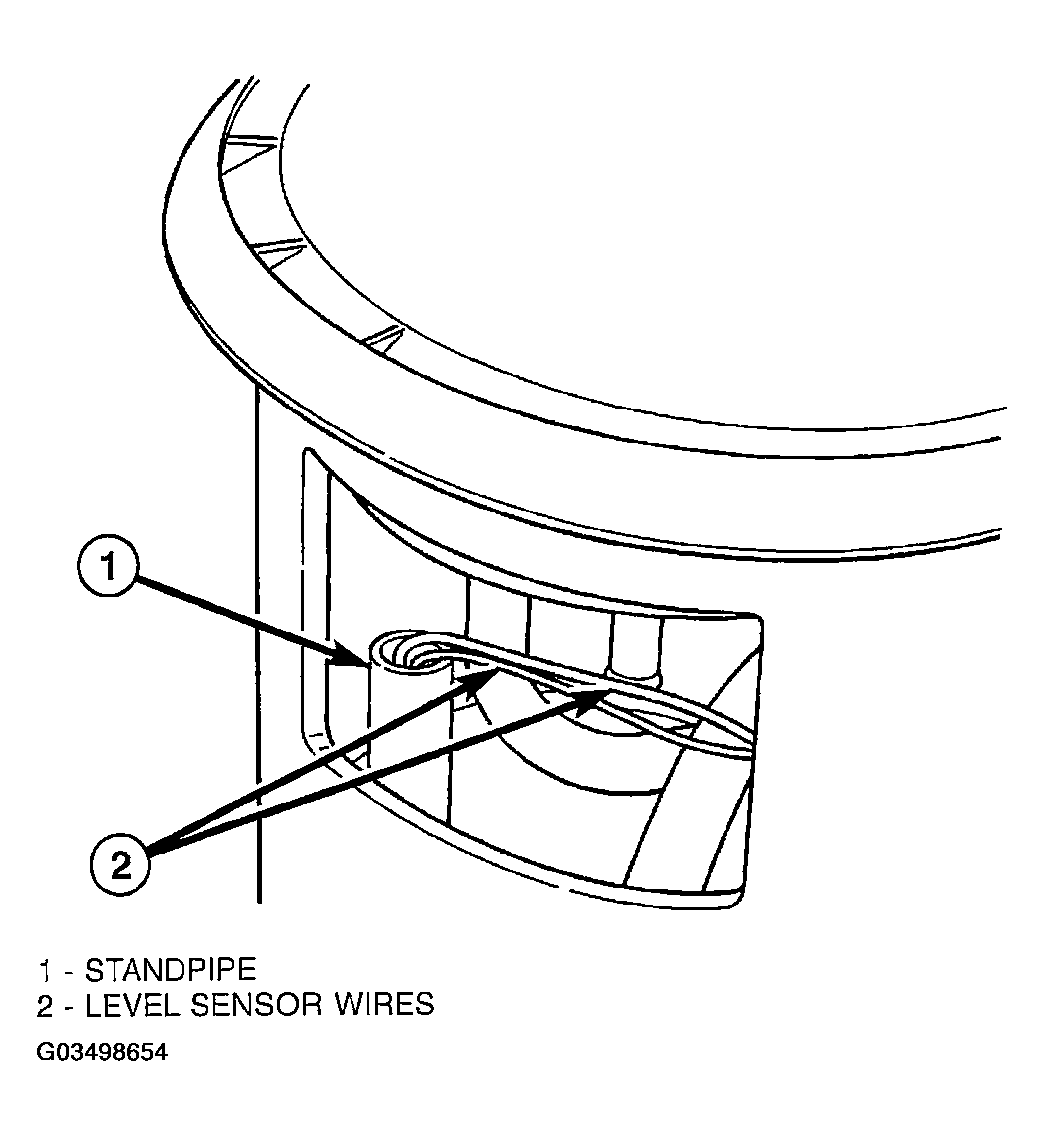

   Fig 6: Standpipe Inside Of Module

   Courtesy of DAIMLERCHRYSLER CORP.
6. Slide level sensor out of installation channel (Fig 5).
