Fuel Pressure Regulator: Description

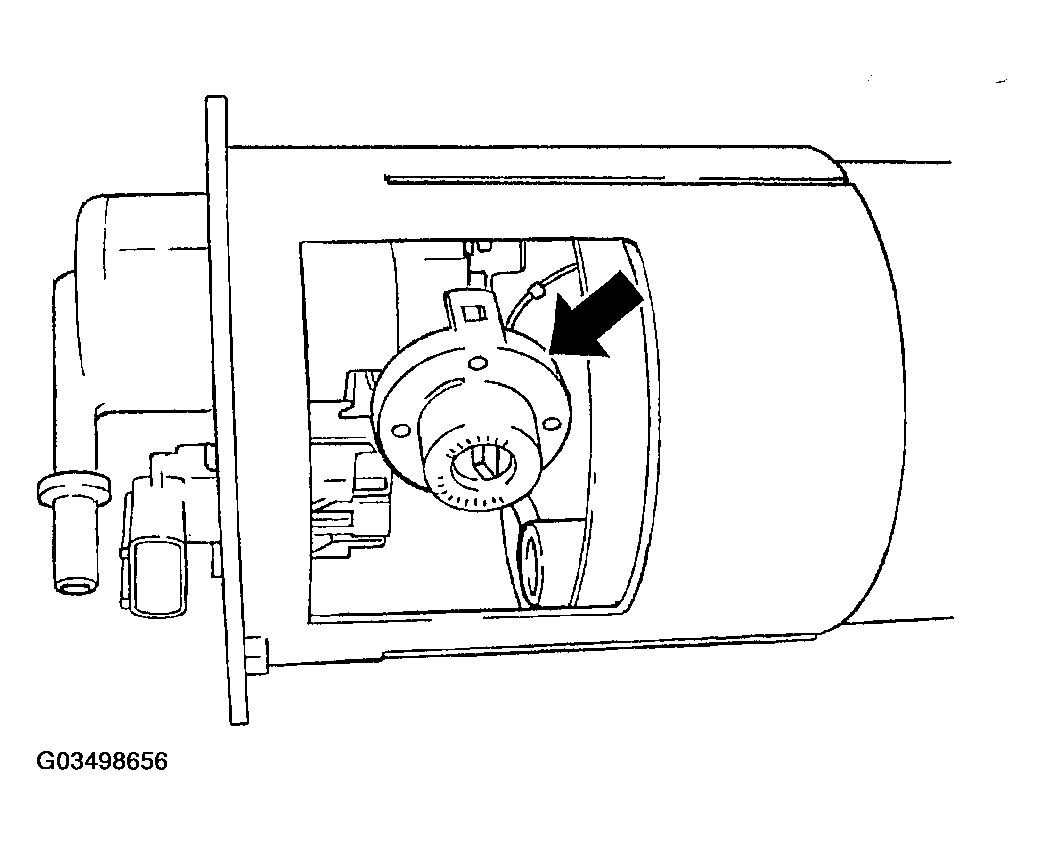

A combination fuel filter and fuel pressure regulator is used on all gas powered engines. It is located on the side of the fuel pump module (Figure) in the fuel tank.

It contains a diaphragm, calibrated springs and a fuel return valve.
