Installation - 3.5L

The camshaft position sensor is installed in the timing belt housing cover above the left camshaft sprocket.

If the removed sensor is reinstalled, completely remove the old spacer from the sensor face. Attach a NEW SPACER to the face of the sensor before installation.  If installing a new sensor, confirm that the paper spacer is attached to the face (Fig 1 ).

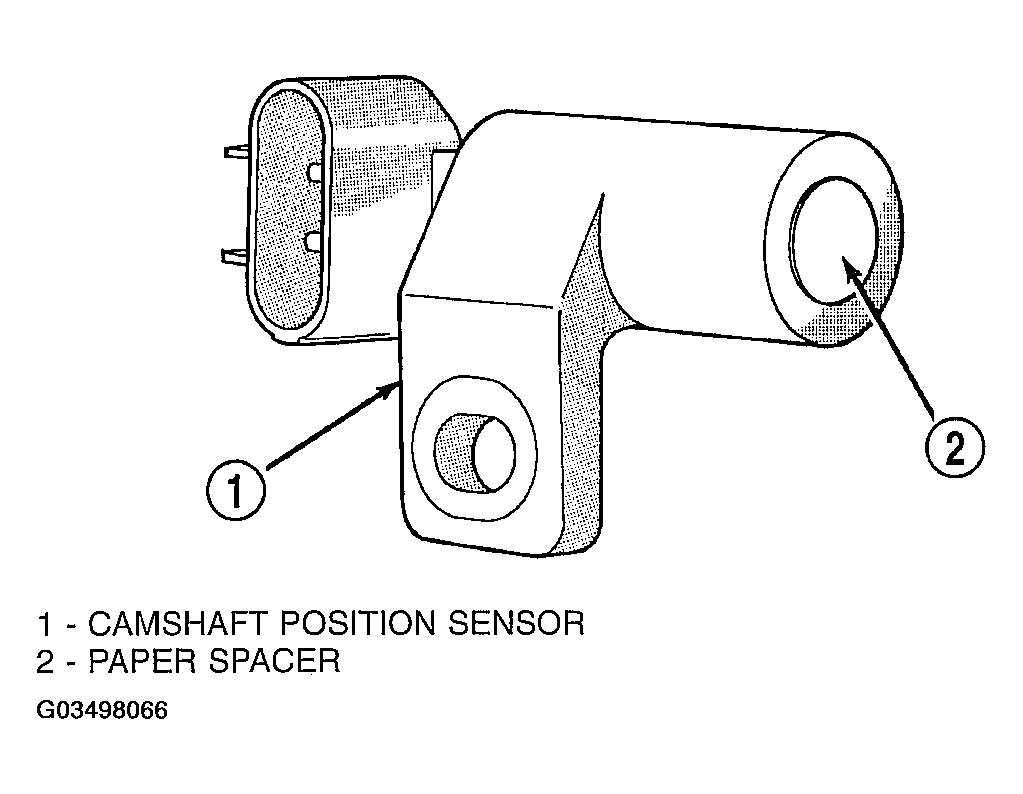

Fig 1: Paper Spacer 3.5L

Courtesy of DAIMLERCHRYSLER CORP.

1. Install sensor in the timing belt housing and push sensor down until contact is made with the camshaft sprocket. While holding the sensor in this position, install and tighten the retaining bolt to 12 N.m (105 in.lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the upper intake plenum. Refer to INTAKE MANIFOLD (2.7L) or INTAKE MANIFOLD - UPPER (3.5L).
4. Connect the negative battery cable.
