Fuel Injector: Description

The injectors are positioned in the cylinder heads with the nozzle ends directly above the intake valve port (Fig 1). The fuel injectors are electrical solenoids (Fig 2).

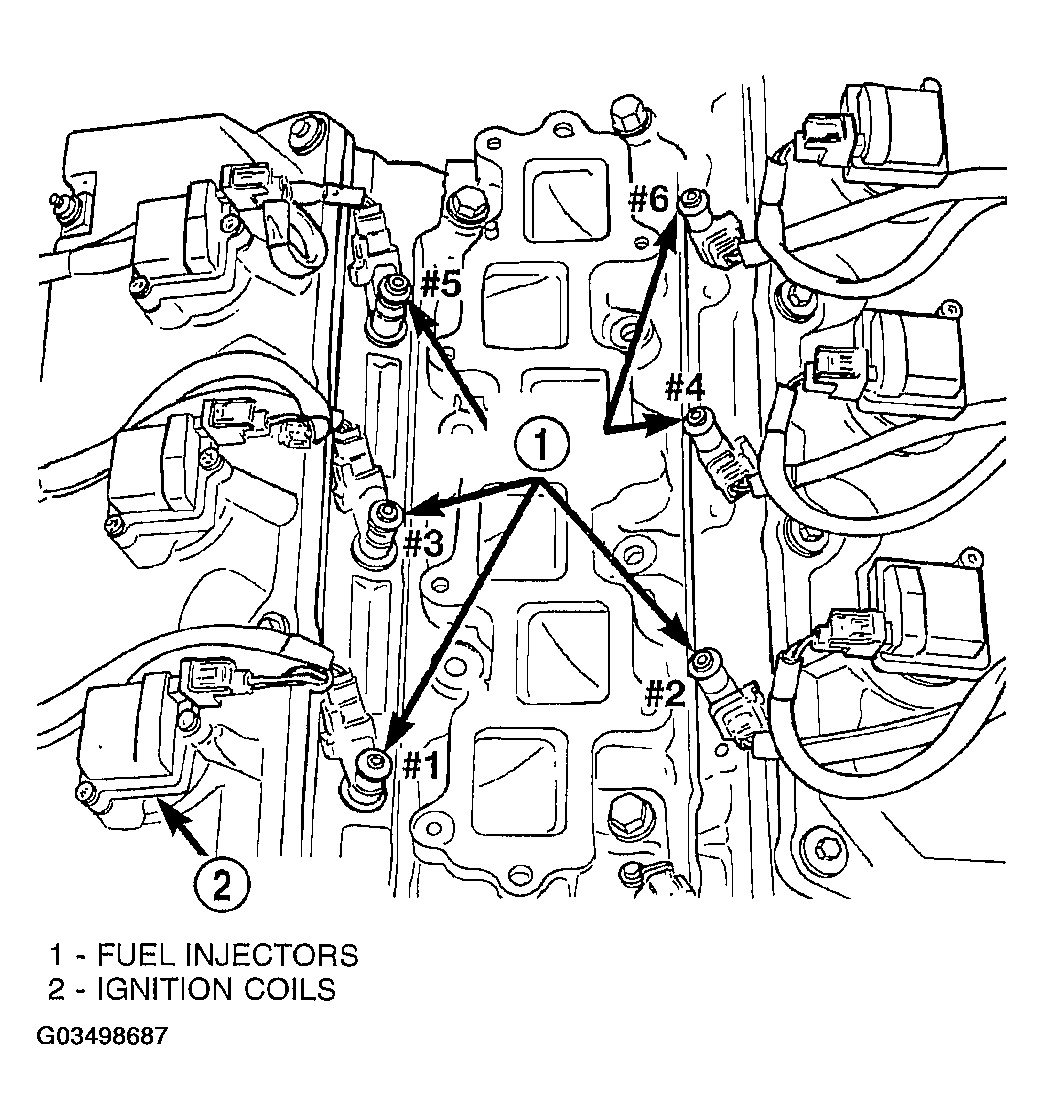

Fig 1: Fuel Injector Location - Typical

Courtesy of DAIMLERCHRYSLER CORP.

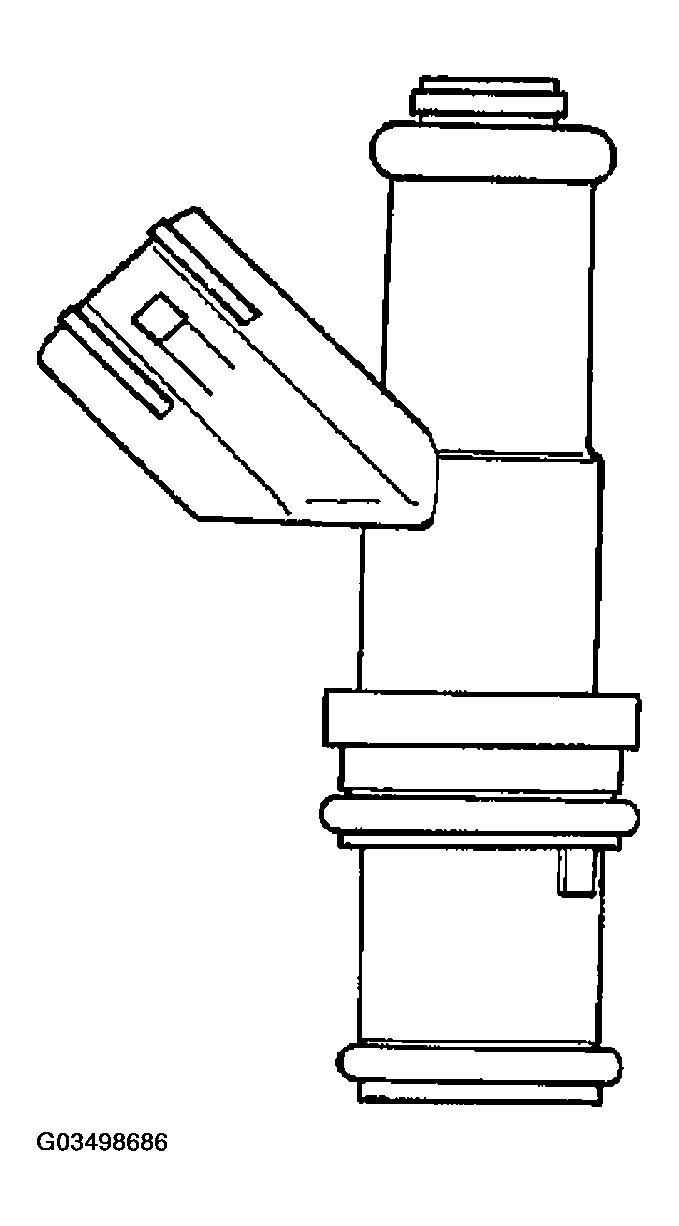

Fig 2: Fuel Injector - Typical

Courtesy of DAIMLERCHRYSLER CORP.
