Inlet Air Temperature Sensor: Removal

  1. Remove the negative battery cable.
  2. Disconnect electrical connector from sensor.
  3. Remove sensor from clean air hose to throttle body.

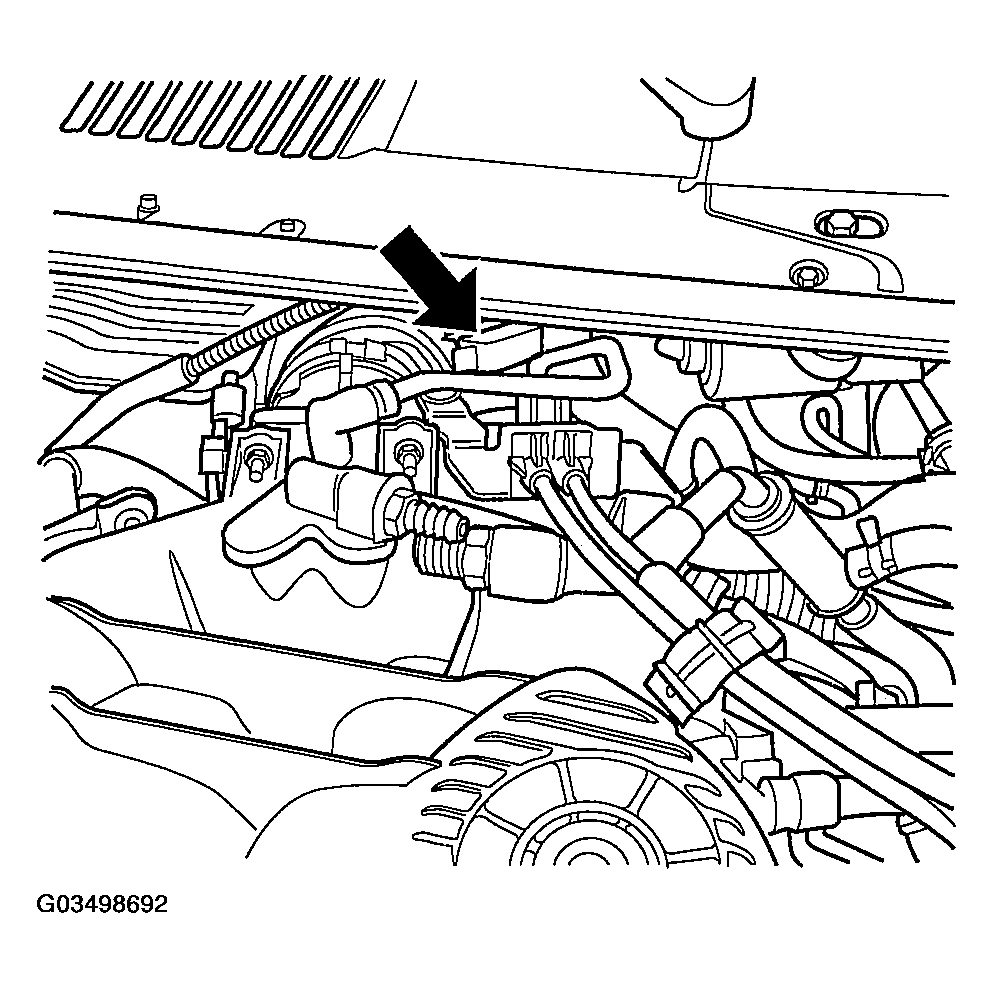

    Fig 1: Inlet Temperature Sensor 2.7L
    G03498692Courtesy of DAIMLERCHRYSLER CORP.

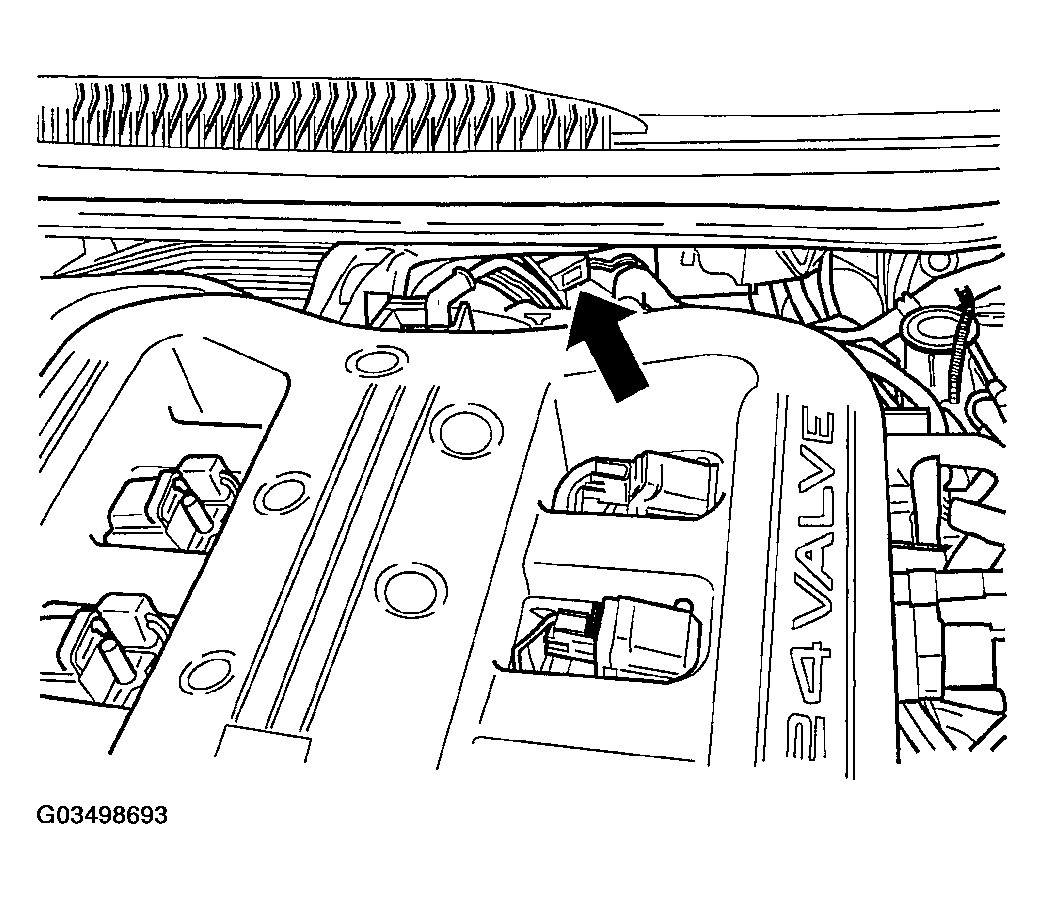

    Fig 2: Inlet Temperature Sensor - 3.5L
    G03498693Courtesy of DAIMLERCHRYSLER CORP.
