Control And Solenoids: 2.7L

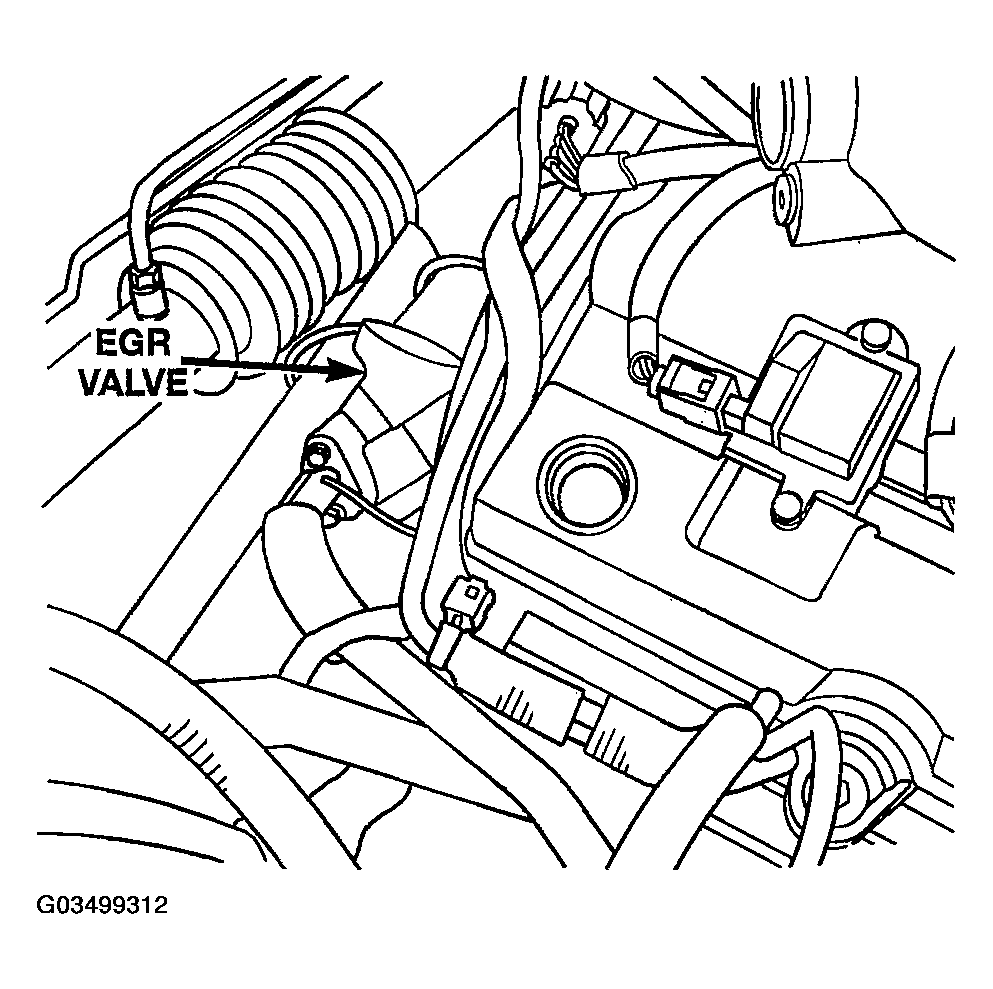

Fig 1: Locating EGR Valve (2.7L, If Equipped)

Courtesy of DAIMLERCHRYSLER CORP.

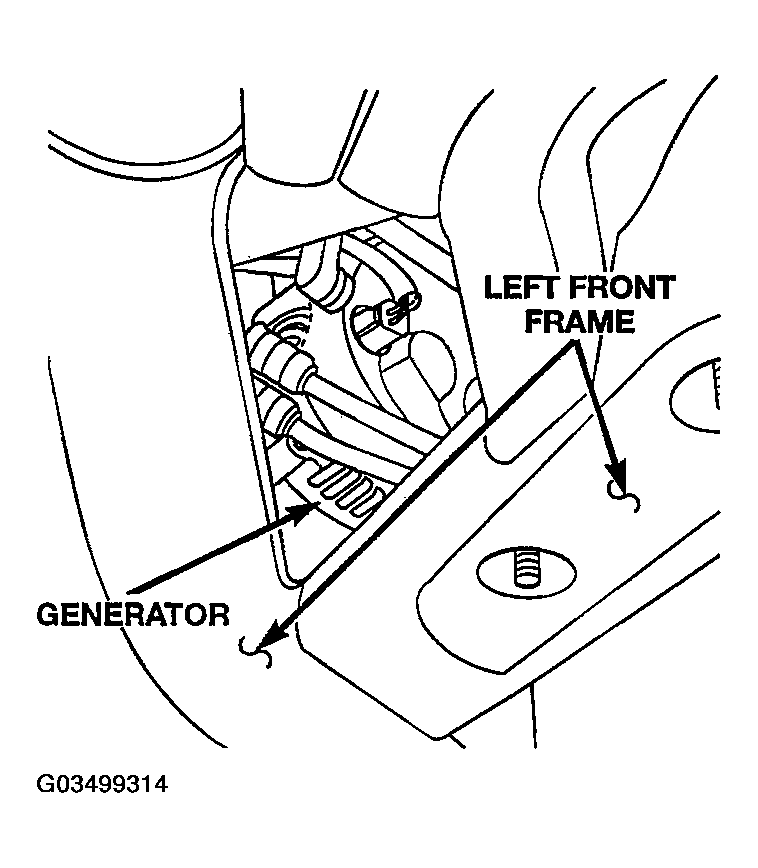

Fig 2: Locating Generator (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

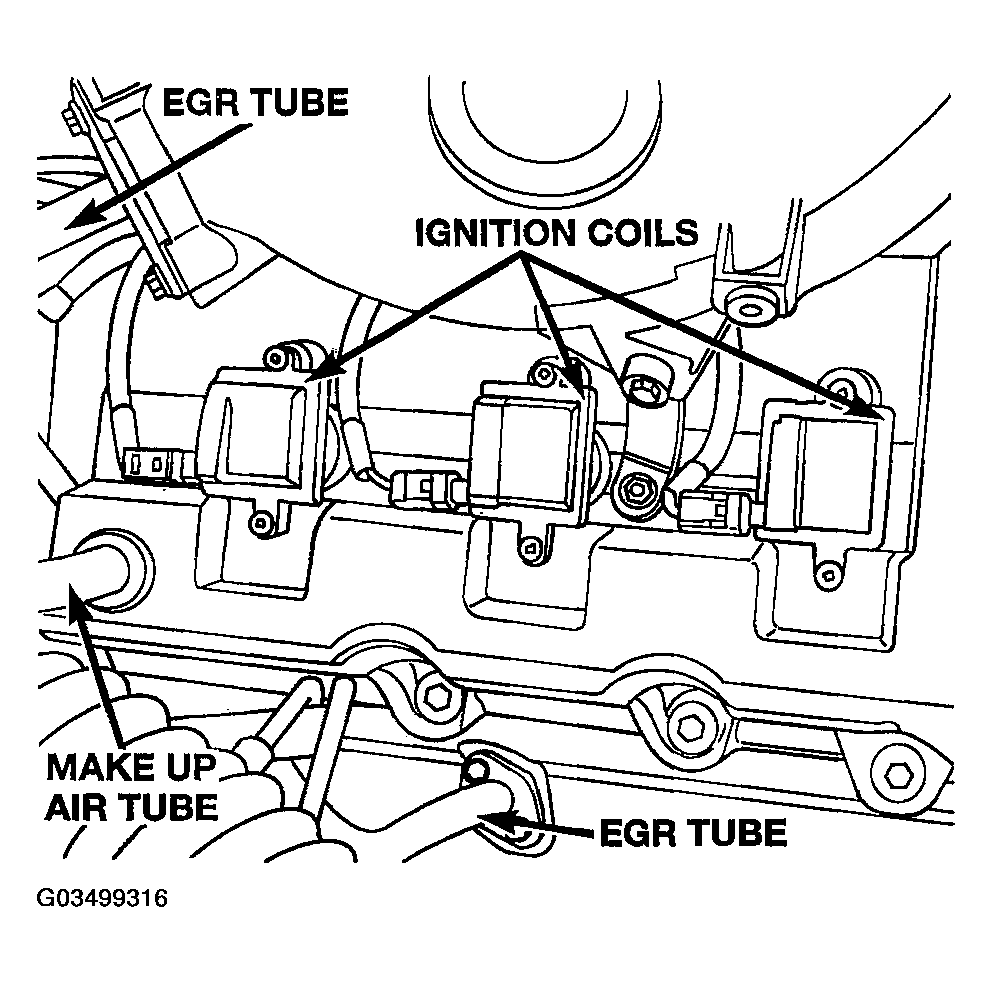

Fig 3: Locating EGR Tube And Ignition Coil (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

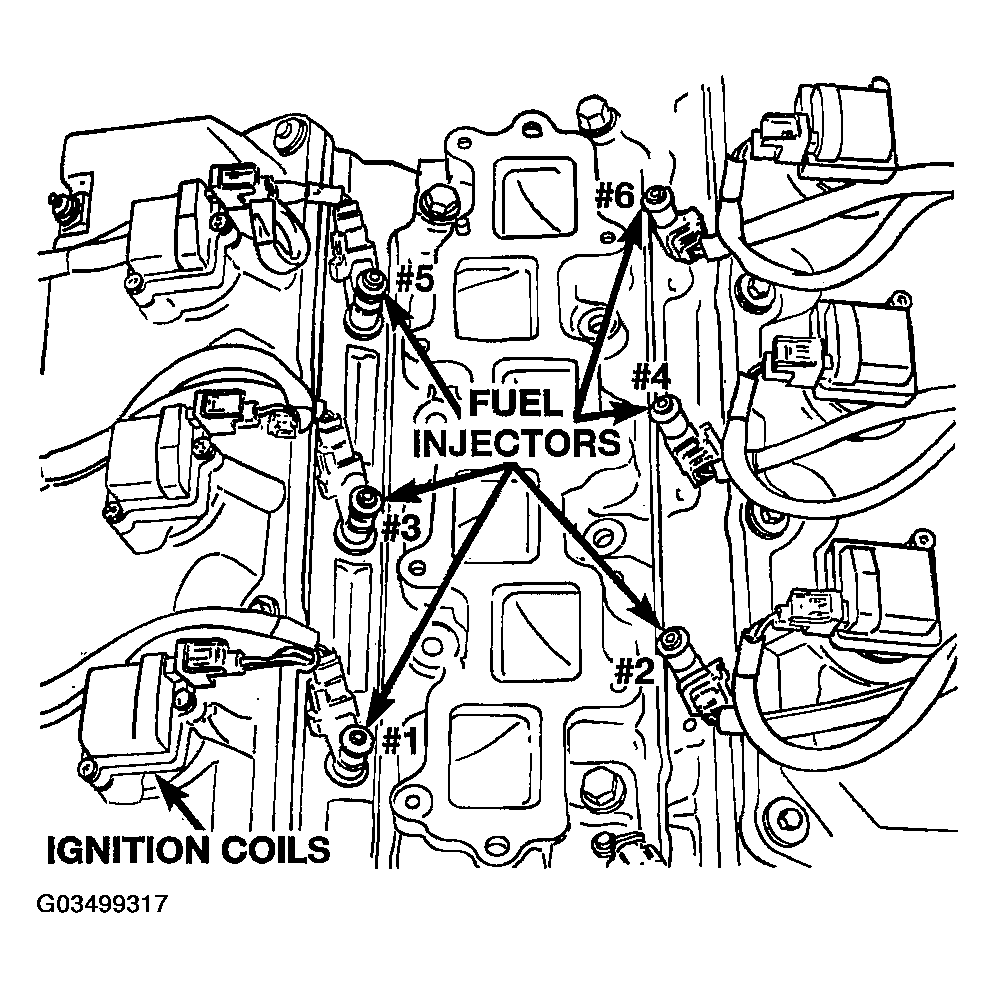

Fig 4: Locating Fuel Injectors & Ignition Coils (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

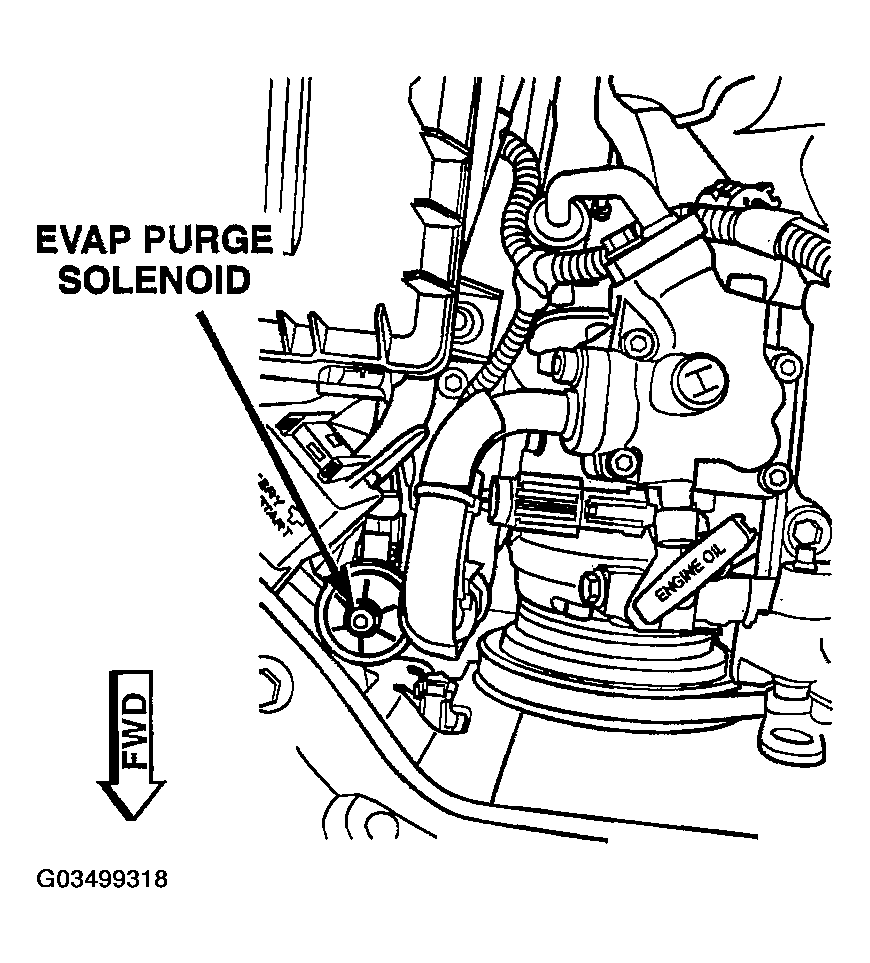

Fig 5: Identifying EVAP Purge Solenoid (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.

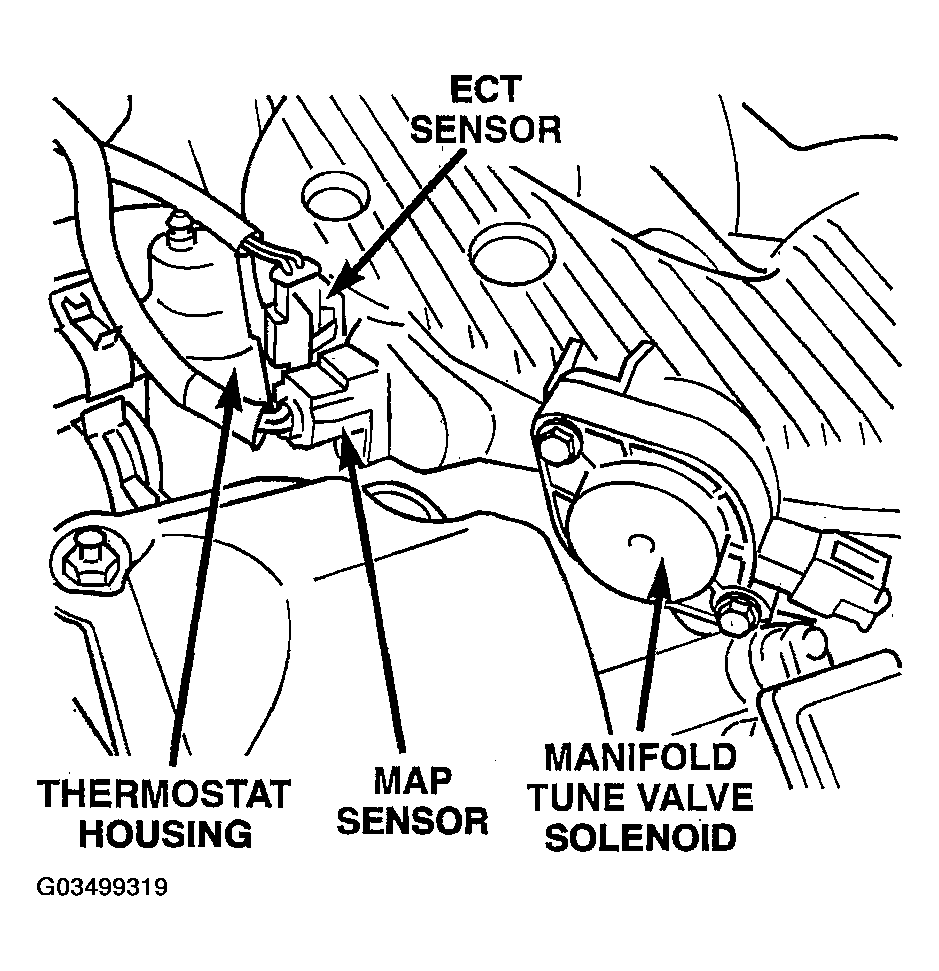

Fig 6: Locating Manifold Tune Valve Solenoid (2.7L)

Courtesy of DAIMLERCHRYSLER CORP.
