Control And Solenoids: 3.5L

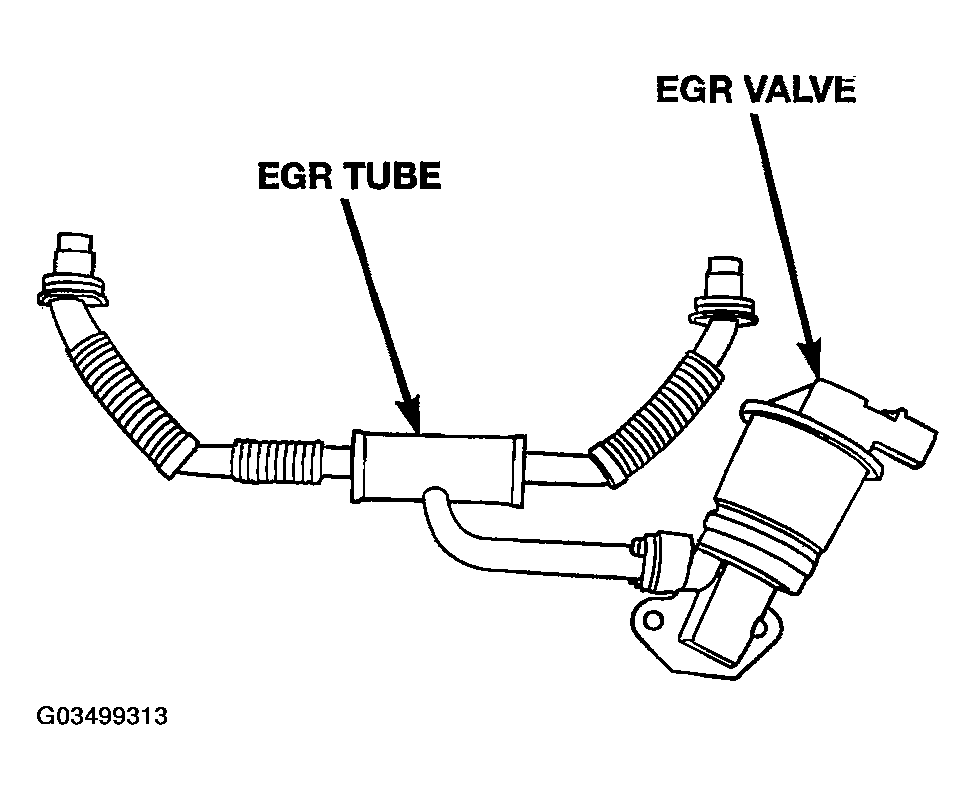

Fig 1: Identifying EGR Tube And EGR Valve (3.5L, If Equipped)
G03499313Courtesy of DAIMLERCHRYSLER CORP.

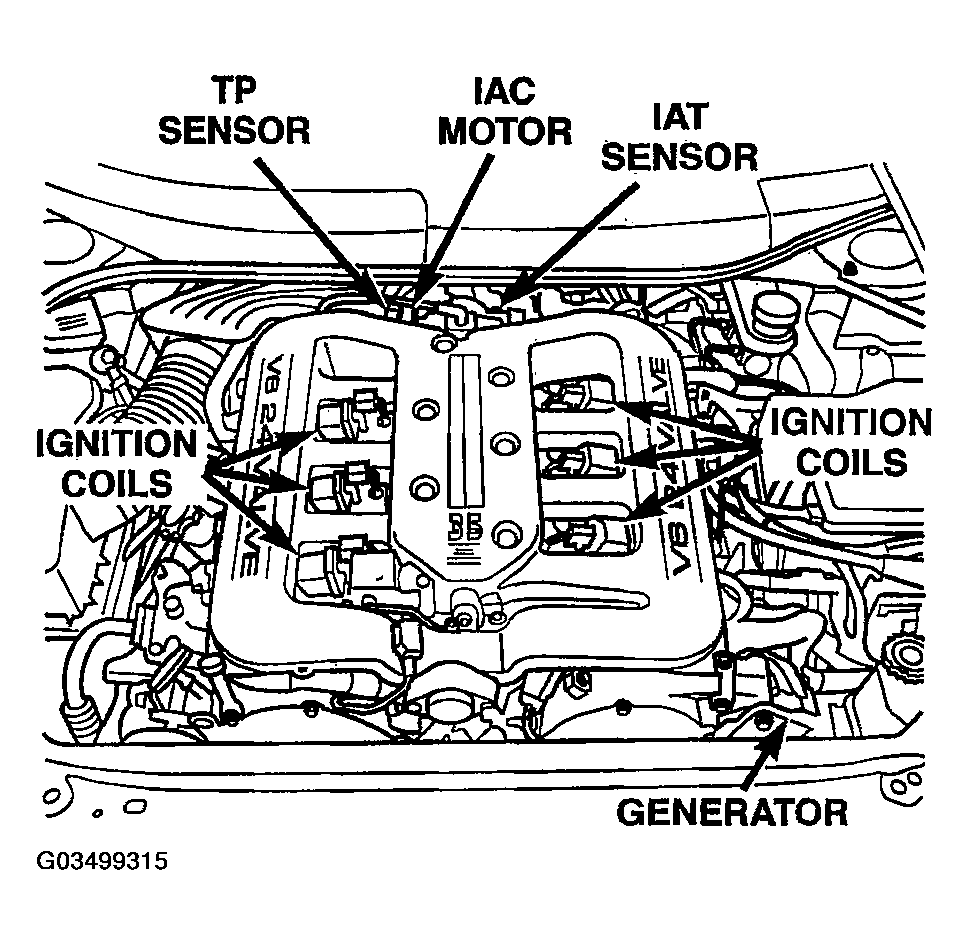

Fig 2: Identifying Generator & Coils (3.5L)
G03499315Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Locating Manifold Tuning Valve Solenoid (3.5)
G03499320Courtesy of DAIMLERCHRYSLER CORP.
