Ambient Temperature Sensor

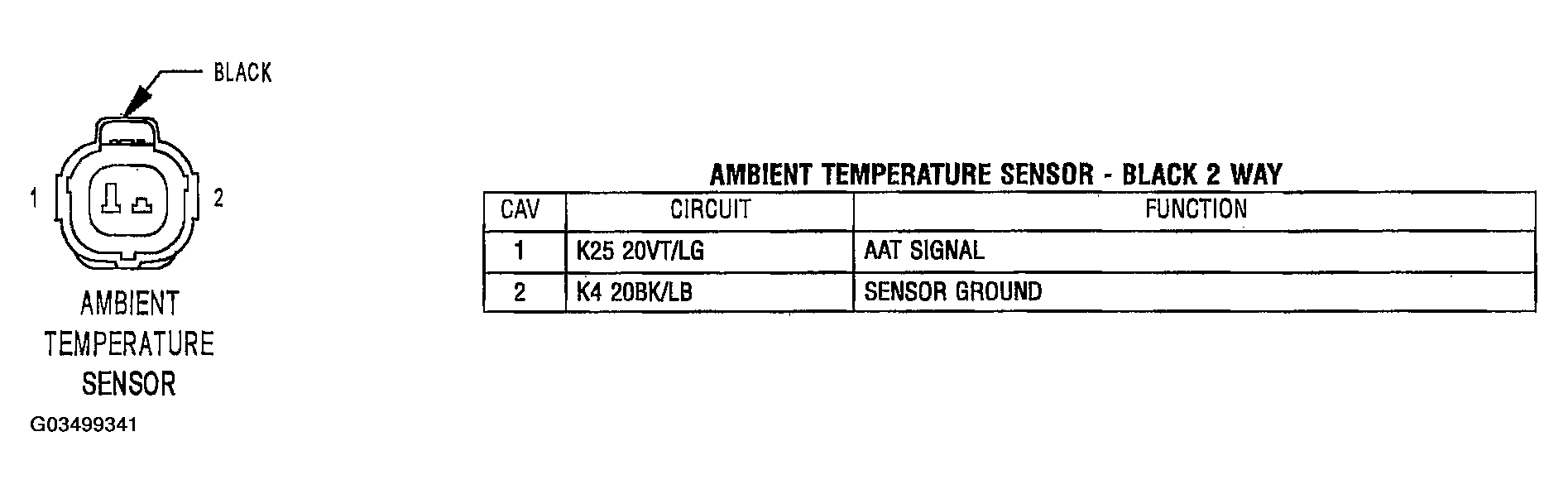

Fig 1: Identifying Ambient Temperature Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
