Brake Lamp Switch

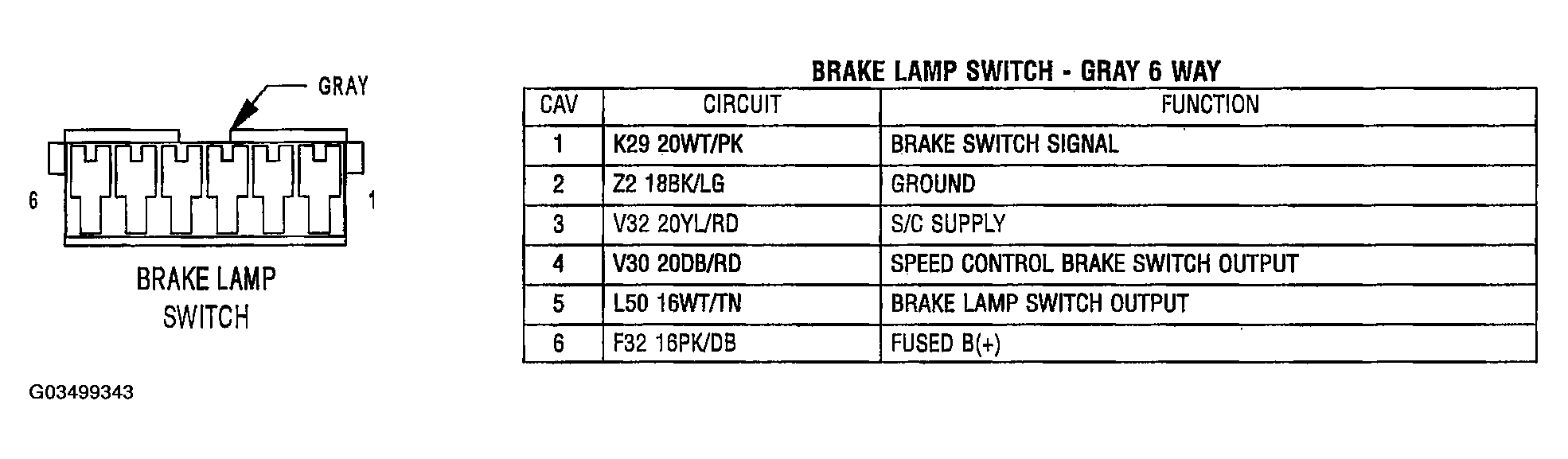

Fig 1: Identifying Brake Lamp Switch Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
