Camshaft Position Sensor

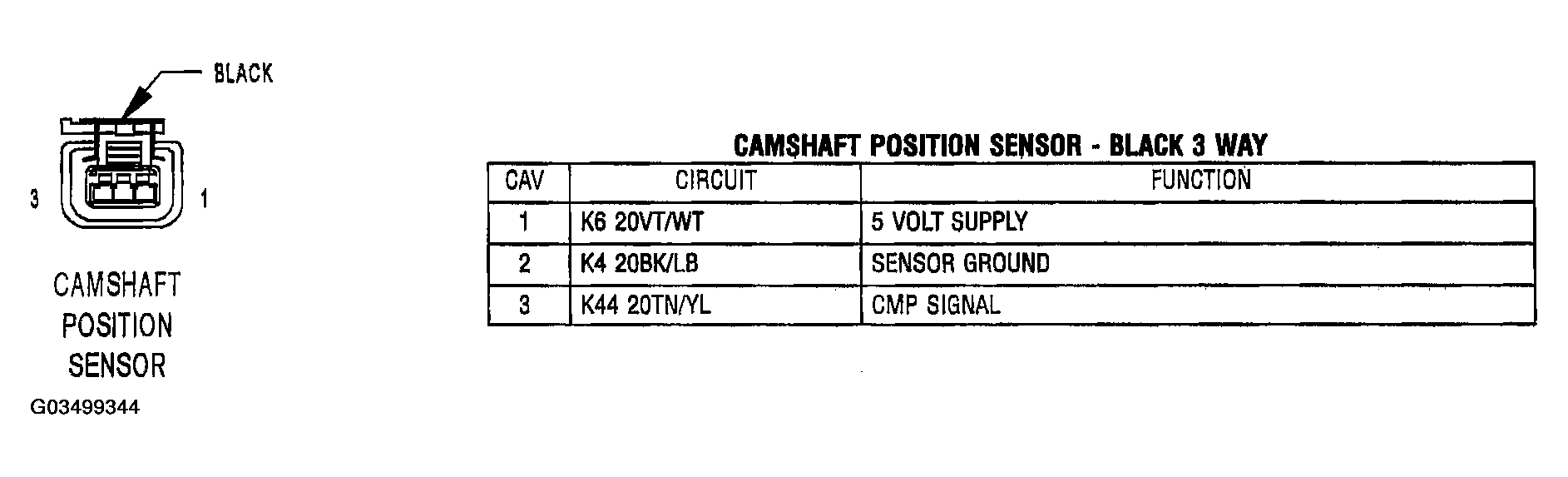

Fig 1: Identifying Camshaft Position Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
