Coil On Plug No. 4

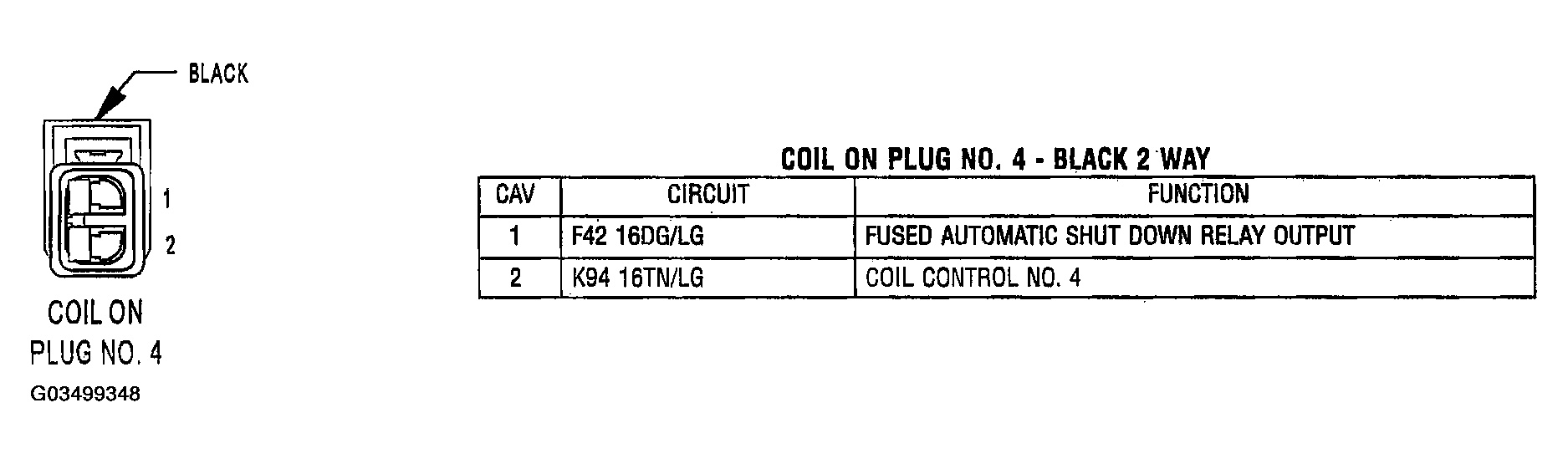

Fig 1: Identifying Coil On Plug No. 4 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
