Crankshaft Position Sensor

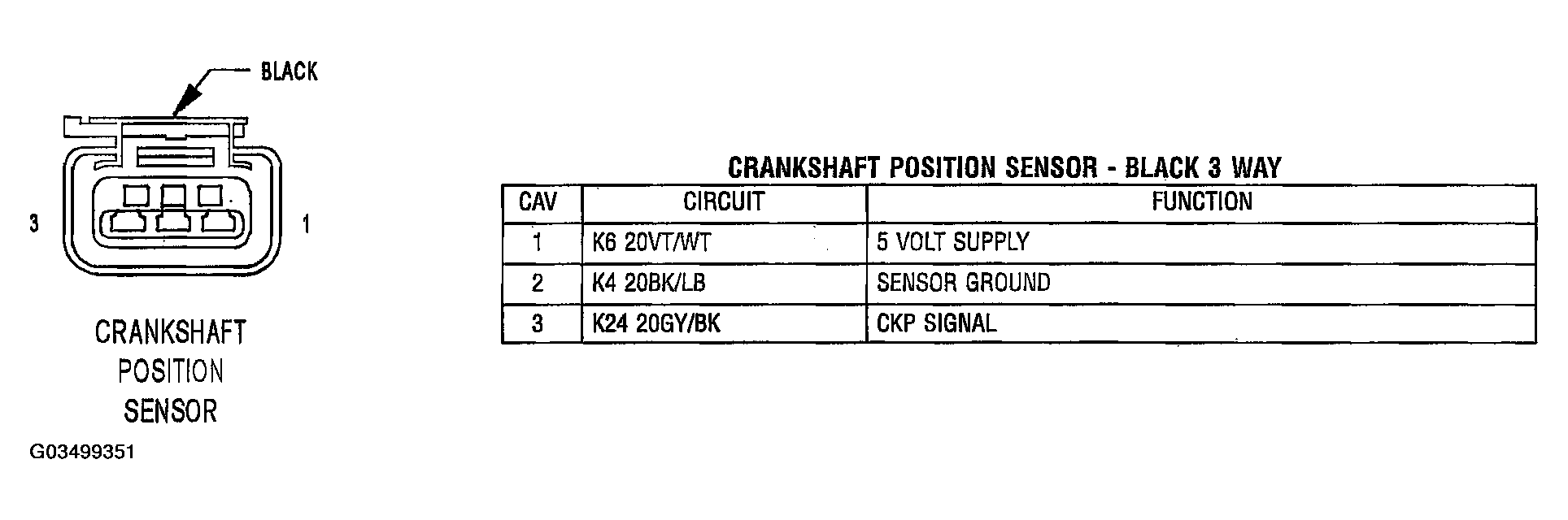

Fig 1: Identifying Crankshaft Position Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
