Engine Coolant Temperature Sensor

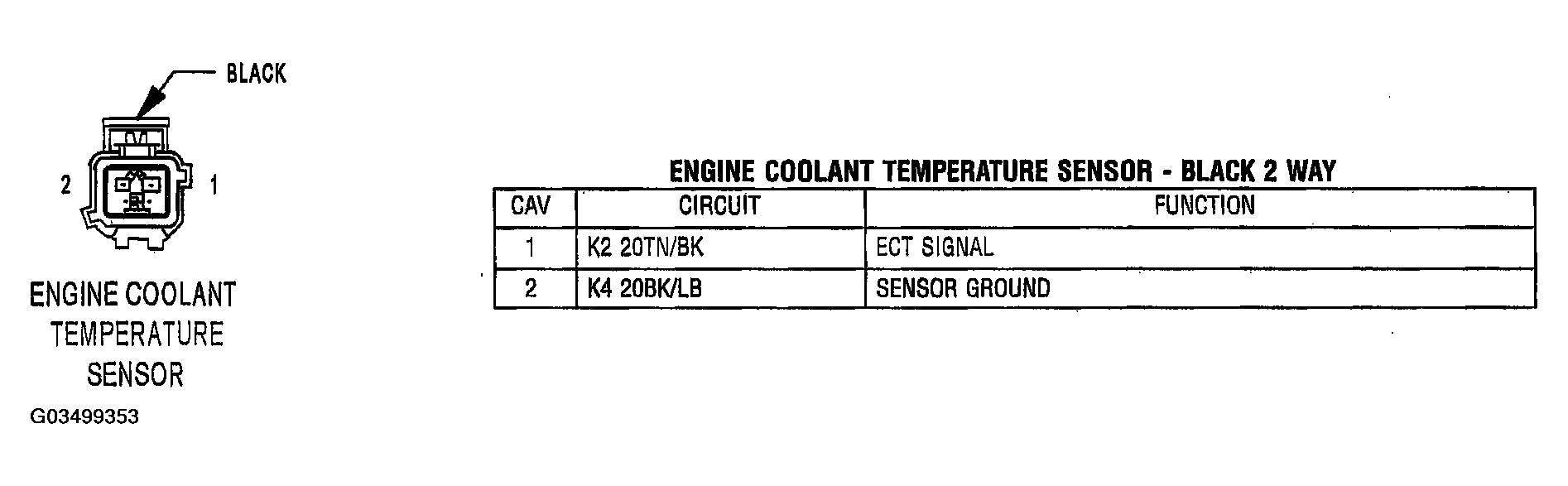

Fig 1: Identifying Engine Coolant Temperature Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
