Fuel Injector No. 1

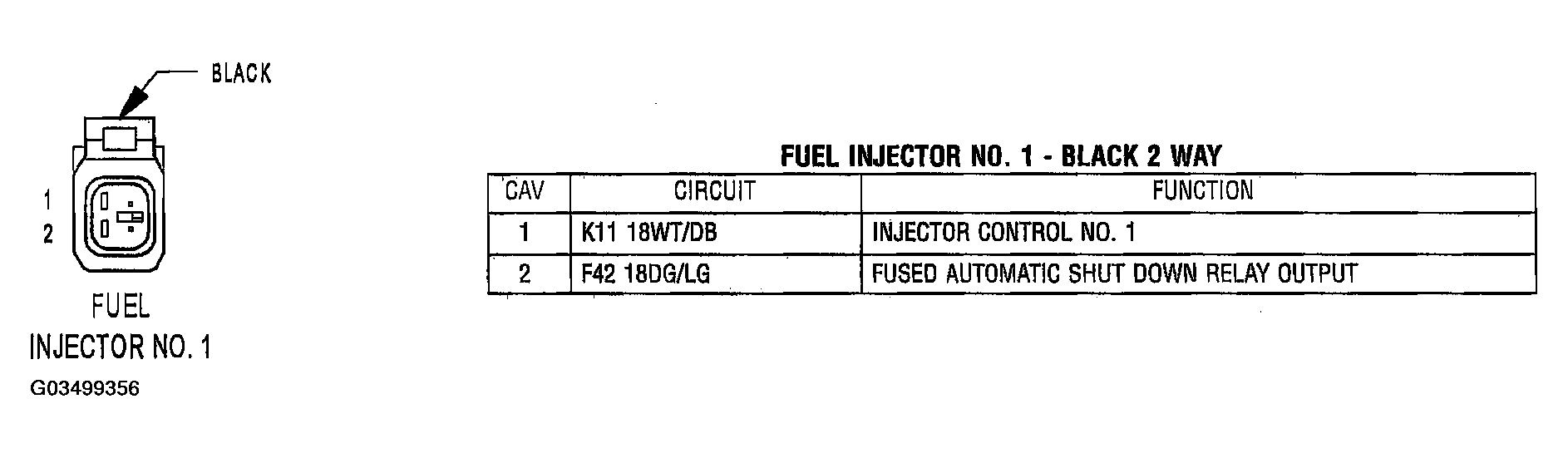

Fig 1: Identifying Fuel Injector No. 1 Sensor Connector

G03499356

Courtesy of DAIMLERCHRYSLER CORP.
